Frame profile 22.5x45 PG 24x6070 mm, Aluminum, anodized, Slot 8/6 - Bosch Rexroth 3842564813

Name: Frame profile 22.5x45 PG 24x6070 mm, Aluminum, anodized, Slot 8/6 - Bosch Rexroth 3842564813
Brand: Bosch Rexroth
SKU: BRR-3842564813
Price: 2286.37 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Sweden

Frame profile 22.5x45 PG 24x6070 mm. Fastening of panel elements: In the special profile slot using clamping profile (accessories). For the low-cost assembly of protective frame with weld grille, woven wire grille WG40 or panel elements.

Net

€2,286.37

excl. VAT

Item BRR-3842564813

Manufacturer no. 3842564813

Question about this item

Datasheet (PDF) 8 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

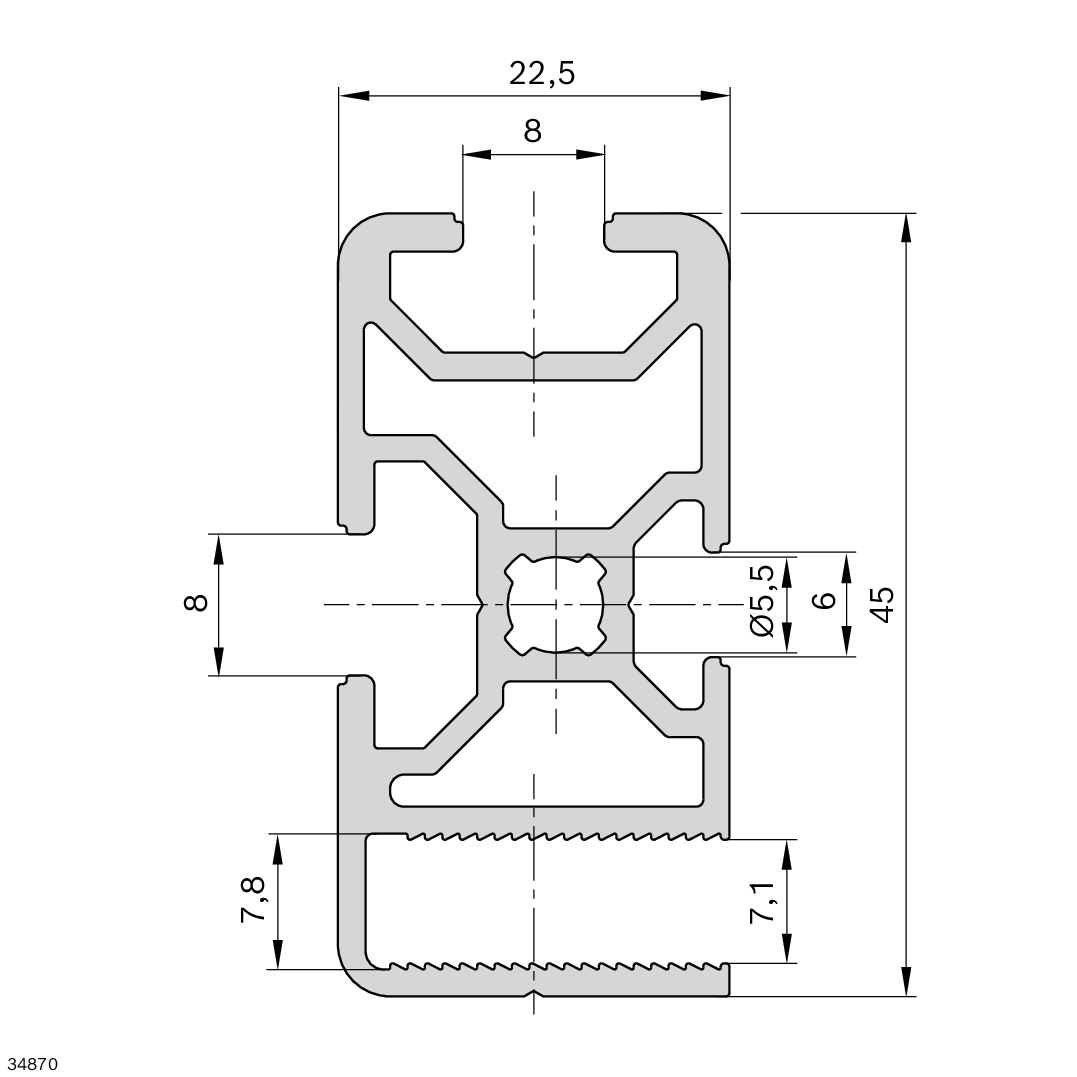

Frame profile 22.5x45 PG 24x6070 mm

Fastening of panel elements: In the special profile slot using clamping profile (accessories)
For the low-cost assembly of protective frame with weld grille, woven wire grille WG40 or panel elements
Fastening of spot welding and woven wire grilles: Directly in the special profile slot

Technical data

Area moment of inertia in x-direction [lx]	1.9 cm⁴
Length [L]	6070 mm
Length-related mass [m']	0.9 kg/m
Material	Aluminum, anodized
Profile slot	8/6
Profile surface [A]	3.4 cm²
Condition on delivery	Packaging unit in standard length
Delivery unit	24
Moment of resistance in the x-direction [Wx]	1.7 cm³
Moment of resistance in the y-direction [Wy]	2.7 cm³
Area moment of inertia in y-direction [ly]	6.3 cm⁴
Weight	148.4 kg
Part number	3842564813
Customs tariff number	76169990
Country of origin	SE
Manufacturer	Bosch Rexroth
Manufacturer Nr.	3842564813
HS-Code	76169990
GPSR manufacturer information	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Sweden
