Anodized aluminum strut profile with a 90x90 mm cross-section, 8 open slots (slot size 10 mm) and a 45 mm modular dimension for Rexroth assembly systems. Cut to length between 60 mm and 6000 mm on order; supplied individually. Suited for machine frames, guard structures, operator stations and workbenches.

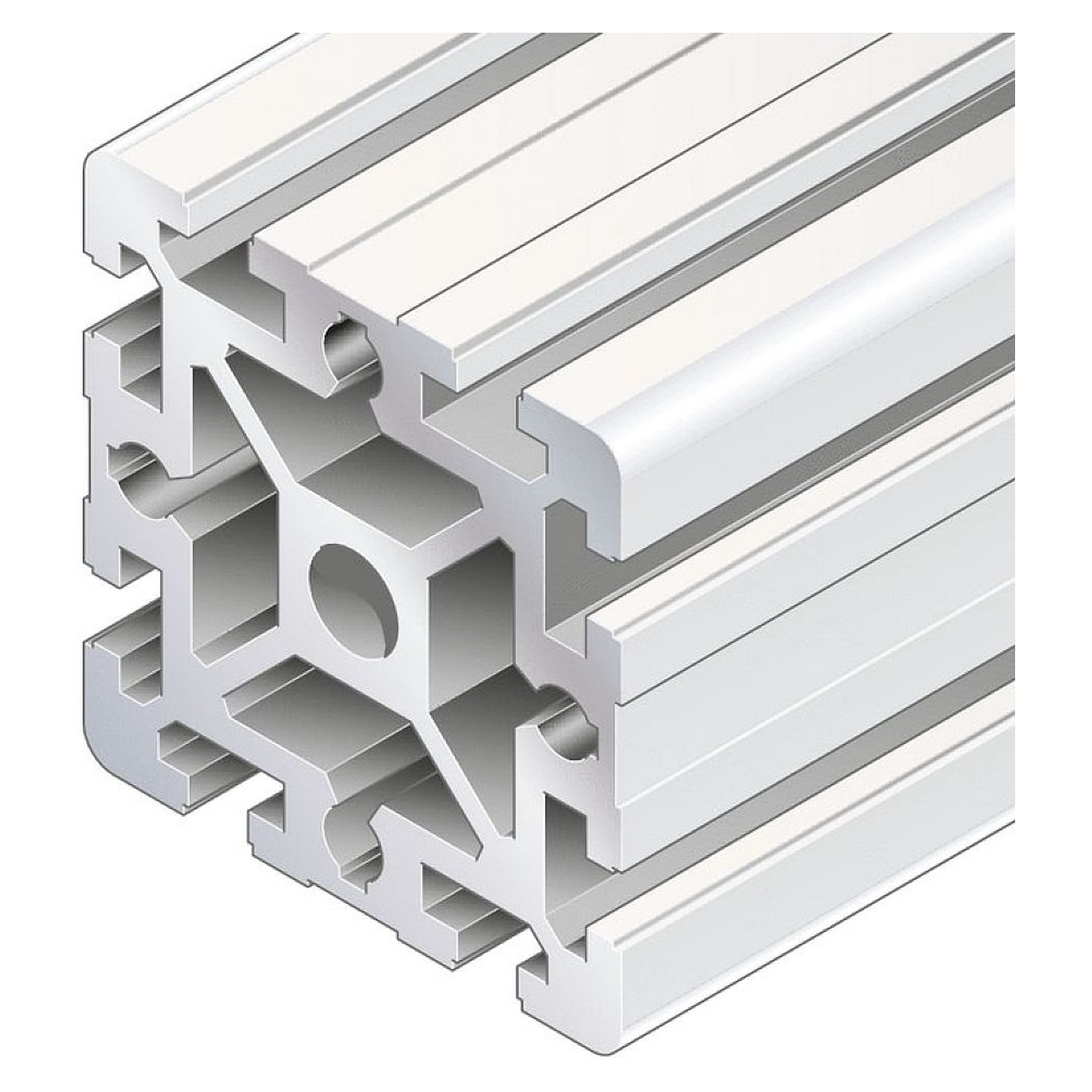

Strut Profile 90x90 D17/-, 1000 mm - Bosch Rexroth 3842990092-1000
BOSCH REXROTH
Original product
Net price (excl. VAT)
€138.73
Item
BRR-3842990092-1000
Manufacturer no.
3842990092-1000
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842990092-1000
Country of originGermany
Customs tariff number76169990
ConditionNew
Article
BRR-3842990092-1000
Frequently Bought Together
-
This Item:
€138.73
-
Strut Profile 90x180L, 12 Slots, 1000 mm, Anodized Aluminum - Bosch Rexroth 3842992861-1000
€219.20
-
Strut Profile 45x180, 1000 mm, Anodized Aluminum, ESD-Suitable - Bosch Rexroth 3842990335-1000
€124.47
Total price
The Bosch Rexroth strut profile 90x90 D17/- is an anodized aluminum profile with a 90x90 mm cross-section, 8 open slots of size 10 mm and a modular dimension of 45 mm. It serves as the primary load-bearing element for machine enclosures, safety guards, operator stations and assembly tables within the Rexroth profile system. Length is specified by the customer from 60 mm to 6000 mm; packaging unit is 1 piece.
- 8 open slots allow versatile connections and fixings without additional machining
- 45 mm modular dimension ensures direct compatibility across the full Rexroth assembly system range
- Anodized aluminum surface (natural) provides corrosion resistance and a consistently clean appearance
- High bending stiffness: area moment of inertia lx = ly = 299.8 cm⁴, moment of resistance Wx = Wy = 66.7 cm³
- Flexible length selection from 60 mm to 6000 mm at time of ordering
Technical data
| Property | Value |
|---|---|
| Cross-section | 90x90 mm |
| Profile type | Standard |
| Profile slot | 10 mm |
| Open slots | 8 |
| Modular dimension | 45 mm |
| Length min. | 60 mm |
| Length max. | 6000 mm |
| Profile surface [A] | 38.4 cm² |
| Area moment of inertia [lx = ly] | 299.8 cm⁴ |
| Moment of resistance [Wx = Wy] | 66.7 cm³ |
| Torsional moment of inertia [It] | 118.6 cm⁴ |
| Moment of torsion resistance [Wt] | 26 cm³ |
| Mass [m] | 10.4 kg/m |
| Material | Aluminum, anodized |
| Color | Natural |
| Packaging unit | 1 piece |
| Recommended accessories | Cover cap 90x90 black, Cover cap 90x90 signal gray, Cover cap with hole 90x90 black, Cover cap with hole 90x90 signal gray |
| ESD version | TEC |
|---|---|
| Manufacturer Nr. | 3842990092-1000 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.009900 |
| HS-Code | 76169990 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
