Anodized aluminum strut profile with a 45x90 mm cross-section, 6 open slots, and profile slot 10 for full compatibility with the Bosch Rexroth size-45 assembly system. The D17V machining in slots A/D allows direct connector attachment without additional drilling. Supplied at 1000 mm; cut-to-length from 60 to 6000 mm available.

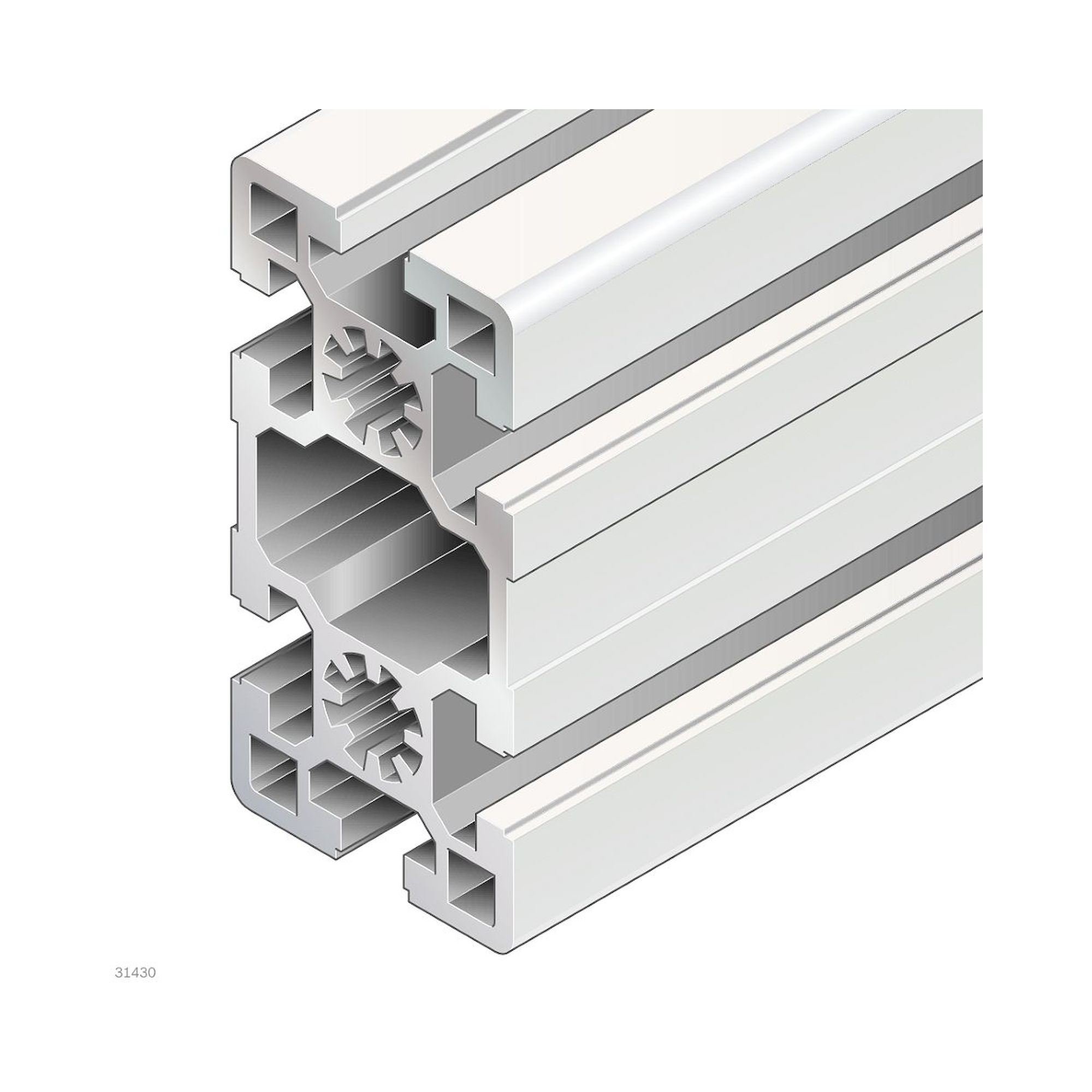

Strut Profile 45x90 D17V, 1000 mm, Anodized Aluminum, 6 Open Slots - Bosch Rexroth 3842990331-1000
BOSCH REXROTH Original product
Net price (excl. VAT)
€62.45
Item BRR-3842990331-1000
Manufacturer no. 3842990331-1000
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842990331-1000
Country of originGermany
Customs tariff number76169990
ConditionNew
Article
BRR-3842990331-1000
Frequently Bought Together
The 45x90 D17V strut profile in anodized aluminum is a standard member of the Bosch Rexroth profile series 45. With six open slots and a modular dimension of 45 mm, it integrates directly with Rexroth connectors, brackets, and linear units for machine frames, workstations, guarding, and conveyor structures.
- 6 open slots for connection flexibility on all faces
- D17V machining in slots A/D - connectors fit without reworking the profile
- High bending stiffness: area moment of inertia Ix = 124.6 cm⁴, Wx = 27.7 cm³
- Anodized surface: corrosion-resistant, wear-resistant, sealed finish
- Length 1000 mm; cut-to-length from 60 to 6000 mm available
Technical data
| Property | Value |
|---|---|
| Cross-section | 45x90 mm |
| Modular dimension | 45 mm |
| Profile slot | 10 |
| Profile type | Standard |
| Open slots | 6 |
| Profile machining | M12, M16: all core bores; D17: slots B/F, C/E; D17V: slots A/D |
| Length (this unit) | 1000 mm |
| Length min / max | 60 mm / 6000 mm |
| Material | Aluminum, anodized |
| Color | Natural |
| Profile surface [A] | 15.4 cm² |
| Mass [m] | 4.2 kg/m |
| Area moment of inertia Ix | 124.6 cm⁴ |
| Moment of resistance Wx | 27.7 cm³ |
| Area moment of inertia Iy | 32.8 cm⁴ |
| Moment of resistance Wy | 14.6 cm³ |
| Torsional moment of inertia [It] | 15.4 cm⁴ |
| Moment of torsion resistance [Wt] | 6.61 cm³ |
| Packaging unit | 1 piece |
| Recommended accessories | Cover cap 45x90 black, Cover cap 45x90 signal gray, Cover cap with hole 45x90 black, Cover cap with hole 45x90 signal gray |
| ESD version | TEC |
|---|---|
| Manufacturer Nr. | 3842990331-1000 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.009900 |
| Note | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| HS-Code | 76169990 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
