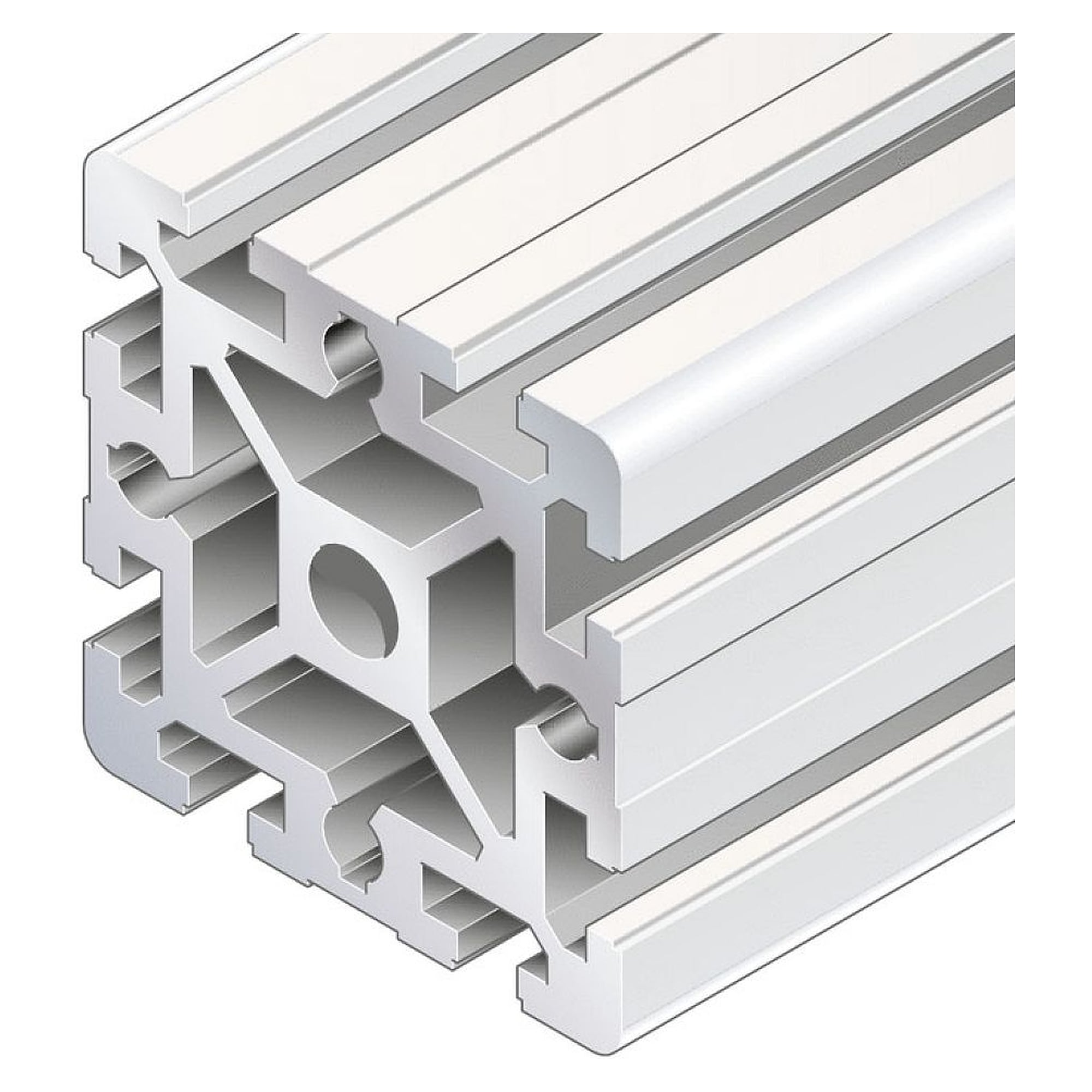

Strut Profile 90x90 M16/D17, 1000 mm - Bosch Rexroth 3842992961-1000
Strut Profile 90x90 M16/D17, 1000 mm - Bosch Rexroth 3842992961-1000 Strut Profile 90x90 M16/D17, 1000 mm - Bosch Rexroth 3842992961-1000

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Strut Profile 90x90 M16/D17, 1000 mm - Bosch Rexroth 3842992961-1000

Bosch Rexroth ✓ Original product Brand new Made in Germany

The Strut Profile 90x90 M16/D17 is an anodized aluminum structural profile with eight open slots and a 45 mm modular dimension, designed for building machine frames, assembly systems, and protective enclosures. Its symmetrical 90x90 mm cross-section delivers identical area moments of inertia in both axes (299.8 cm⁴ each), providing uniform stiffness under multi-directional loads. The standard 1000 mm length can be cut to size from 170 mm up to a maximum delivery length of 6000 mm.

Net
€144.81
excl. VAT
Item BRR-3842992961-1000
Manufacturer no. 3842992961-1000
Save Compare
Question about this item
Datasheet (PDF) 8 documents, all under Downloads
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Bosch Rexroth Strut Profile 90x90 M16/D17 is an anodized aluminum structural profile from the Rexroth aluminum profile system. Eight open slot-10 grooves, a 45 mm modular dimension, and a 90x90 mm cross-section make it a versatile load-bearing element for machine frames, production line structures, safety guards, and modular assembly systems. All standard Rexroth system accessories are directly compatible via the slot-10 interface.

  • Eight open slots provide full connection flexibility on all four profile faces
  • Symmetrical cross-section: area moment of inertia Ix = Iy = 299.8 cm⁴ - equal rigidity in both bending directions
  • High torsional stiffness: torsional moment of inertia It = 118.6 cm⁴, moment of torsion resistance Wt = 26 cm³
  • Anodized aluminum - corrosion-resistant, natural color finish, ready to install
  • Cut-to-length capability: 170 mm to 6000 mm; standard delivery 1000 mm
  • Packaging unit 1 piece; mass 10.4 kg/m

Technical data

PropertyValue
Cross-section90x90 mm
Profile typeStandard
Profile slotSlot 10
Modular dimension45 mm
Open slots8
Length (standard delivery)1000 mm
Length min / max170 mm / 6000 mm
Area moment of inertia Ix = Iy299.8 cm⁴
Moment of resistance Wx = Wy66.7 cm³
Torsional moment of inertia It118.6 cm⁴
Moment of torsion resistance Wt26 cm³
Profile surface A38.4 cm²
Mass m10.4 kg/m
MaterialAluminum, anodized
ColorNatural
Packaging unit1 piece
Recommended accessoriesCover cap 90x90 black, Cover cap 90x90 signal gray, Cover cap with hole 90x90 black, Cover cap with hole 90x90 signal gray
Weight0.01 kg
ManufacturerBosch Rexroth
Manufacturer Nr.3842992961-1000
HS-Code76169990
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of articleNew
Article authenticityOriginal product
Country of ManufactureGermany
ESD versionTEC

Downloads

Datasheet

Catalogue

Other

Accessories

Questions about this item

Any other question?

Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
