Anodized aluminum frame profile 30x30 mm for the EcoSafe WG40 woven wire guard system, supplied in variable lengths from 100 to 6070 mm. Forms the load-bearing frame for partition guards in assembly lines and production cells. Required accessories: central bolt, woven wire grille, and spring clamping elements.

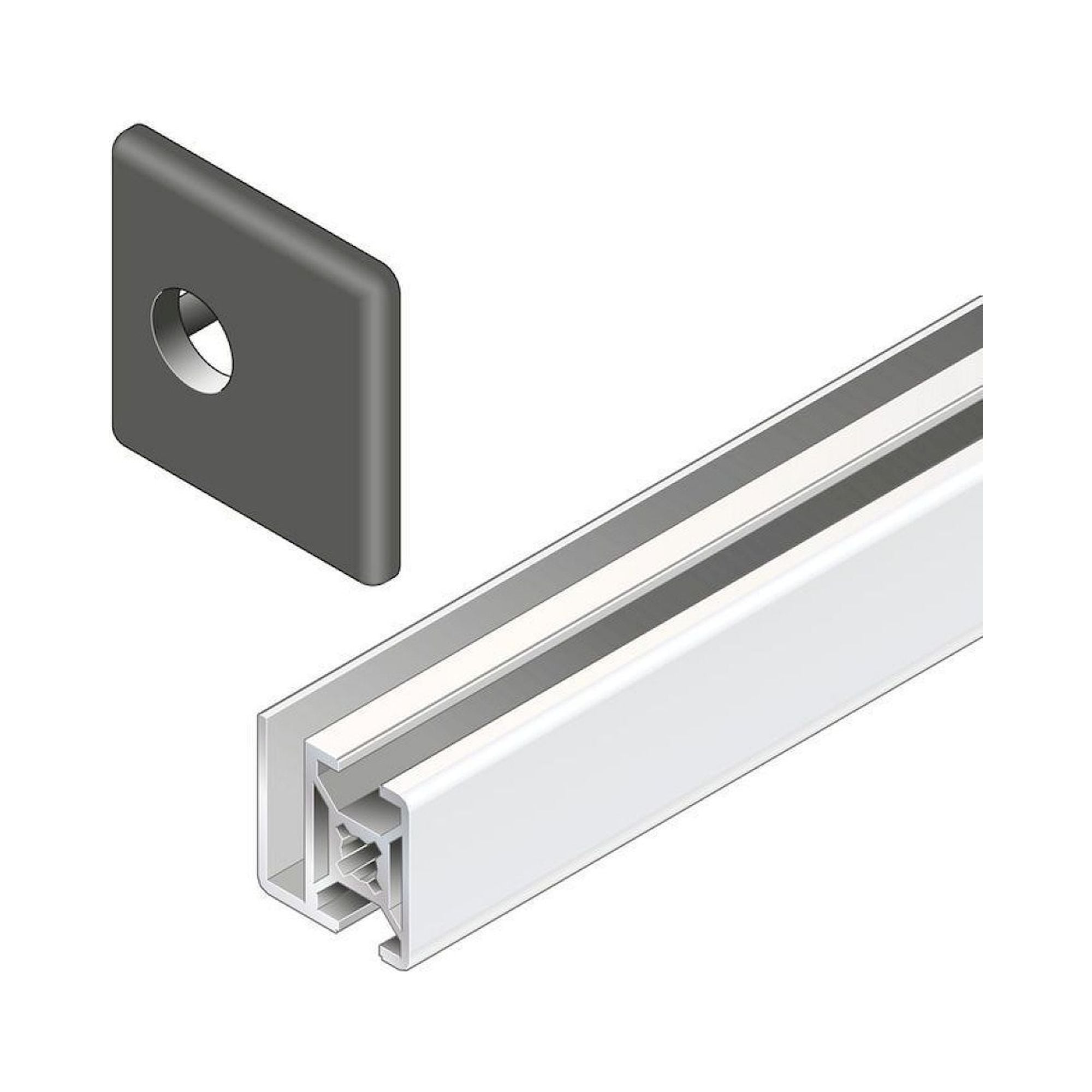

Frame Profile 30x30 WG40, 1000 mm - Bosch Rexroth 3842992972-1000
BOSCH REXROTH
Original product
Net price (excl. VAT)
€19.37
Item
BRR-3842992972-1000
Manufacturer no.
3842992972-1000
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842992972-1000
Country of originGermany
Customs tariff number76109090
ConditionNew
Article
BRR-3842992972-1000
Frequently Bought Together
-
This Item:
€19.37
-
Frame Profile 30x45 WG30, 1000 mm - Bosch Rexroth 3842992971-1000
€25.60
-
Suspension field 1850x1500 grille galvanized - Bosch Rexroth 3842567948
€242.61
Total price
The Frame Profile 30x30 WG40 is the structural basis for woven wire partition guards in the Bosch Rexroth EcoSafe system. Made from anodized aluminum, it combines low weight with reliable rigidity and corrosion resistance. The slot-8 profile accepts standard EcoSafe WG40 connectors directly, and variable cut-to-length ordering (100 to 6070 mm) eliminates fixed-length waste.
- Anodized aluminum: corrosion-resistant, lightweight, and low-maintenance
- Variable length (100 to 6070 mm): order the exact length needed, reducing offcuts and stock
- Slot 8: direct compatibility with EcoSafe WG40 accessories (central bolt, spring clamping elements)
- Defined stiffness: Ix = 2.4 cm⁴, Iy = 2.9 cm⁴ for predictable frame design
- Mass 0.9 kg/m: fast, tool-efficient installation and reconfiguration
Technical data
| Property | Value |
|---|---|
| Profile cross-section | 30 x 30 mm |
| Profile slot | 8 |
| Length min. [L min] | 100 mm |
| Length max. [L max] | 6070 mm |
| Condition on delivery | Variable length |
| Delivery unit | 1 piece |
| Material | Aluminum, anodized |
| Mass [m] | 0.9 kg/m |
| Profile surface [A] | 3.2 cm² |
| Area moment of inertia X [Ix] | 2.4 cm⁴ |
| Moment of resistance X [Wx] | 1.5 cm³ |
| Area moment of inertia Y [Iy] | 2.9 cm⁴ |
| Moment of resistance Y [Wy] | 1.8 cm³ |
| Required accessories | Central bolt, woven wire grille, spring clamping elements |
| ESD version | TEC |
|---|---|
| Manufacturer Nr. | 3842992972-1000 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.009900 |
| HS-Code | 76109090 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
