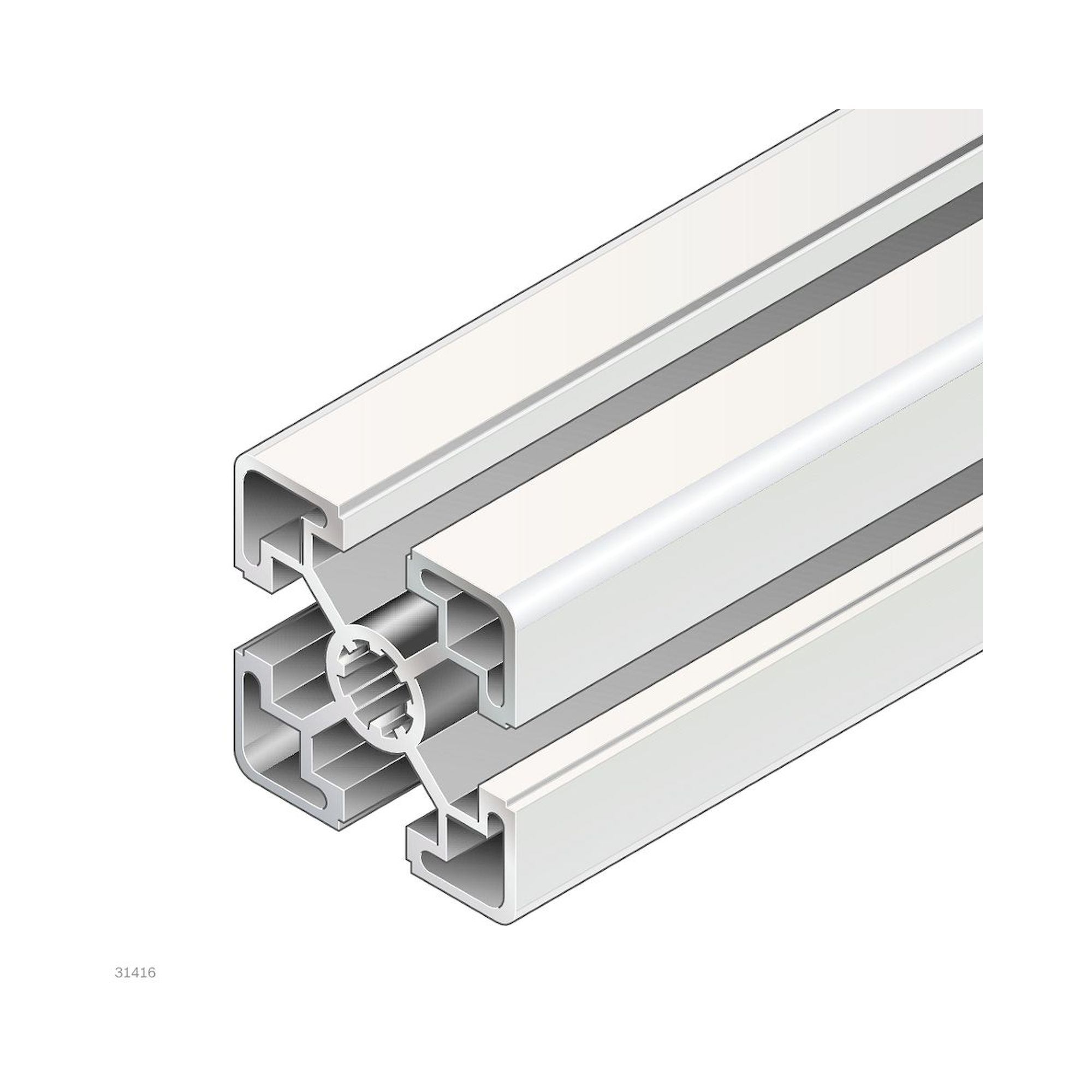

Strut Profile 90x90L 4NVS, 1000 mm, Anodized Aluminum, Natural - Bosch Rexroth 3842993621-1000

Name: Strut Profile 90x90L 4NVS, 1000 mm, Anodized Aluminum, Natural - Bosch Rexroth 3842993621-1000
Brand: Bosch Rexroth
SKU: BRR-3842993621-1000
Price: 110.03 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Germany

Heavy-duty aluminum strut profile, cross-section 90x90L with four-slot connection system (4NVS) and 45 mm modular dimension. The anodized finish provides corrosion resistance for long-term use in machine frames, workstations, and protective enclosures. This item is supplied as a 1000 mm length; custom lengths from 50 to 6070 mm are available.

Net

€110.03

excl. VAT

Item BRR-3842993621-1000

Manufacturer no. 3842993621-1000

Question about this item

Datasheet (PDF) 8 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The Bosch Rexroth Strut Profile 90x90L 4NVS is an anodized aluminum profile with a 90x90 mm cross-section, four open slots (slot width 10 mm), and a 45 mm modular dimension. The 4NVS connection system enables rigid, low-tool assembly in all directions, making it a dependable building block for modular machine frames, assembly workstations, and safety guarding.

High bending stiffness: area moment of inertia Ix = Iy = 220.9 cm⁴, moment of resistance Wx = Wy = 49.2 cm³
Good torsional rigidity: torsional moment of inertia It = 127 cm⁴, torsional moment of resistance Wt = 22 cm³
Lightweight and corrosion-resistant: anodized aluminum, profile surface 24.2 cm², mass 6.5 kg/m
Configurable to length: available from 50 to 6070 mm on request
Recommended accessories: cover cap 90x90L in black or signal gray

Technical data

Property	Value
Cross-section	90x90L 4NVS
Profile type	4NVS
Dimensions	90x90 mm
Open slots	4
Slot width	10 mm
Modular dimension	45 mm
Length (this item)	1000 mm
Length min / max	50 mm / 6070 mm
Area moment of inertia Ix = Iy	220.9 cm⁴
Moment of resistance Wx = Wy	49.2 cm³
Torsional moment of inertia It	127 cm⁴
Torsional moment of resistance Wt	22 cm³
Profile surface A	24.2 cm²
Mass	6.5 kg/m
Material	Aluminum, anodized
Color	Natural
Packaging unit	1 piece
Weight	0.01 kg
Manufacturer	Bosch Rexroth
Manufacturer Nr.	3842993621-1000
HS-Code	76042100
GPSR manufacturer information	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
ESD version	TEC
