Miniaturwagen NRII MWA-012-BLS-C1-P-3 by Bosch Rexroth, material number R044121200. Size 12, material Corrosion-resistant, martensitic steel, accuracy class P - Precise, preload class C1 - Low preload, seal NS - N and longitudinal seal and lubrication Pre-lubricated.
Bosch Rexroth R044121200. Miniaturwagen NRII MWA-012-BLS-C1-P-3
BOSCH REXROTH
Original product
Net price (excl. VAT)
€94.41
Item
BRR-R044121200
Manufacturer no.
R044121200
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.R044121200
Country of originGermany
ConditionNew
Article
BRR-R044121200
Frequently Bought Together
-
This Item:
€94.41
-

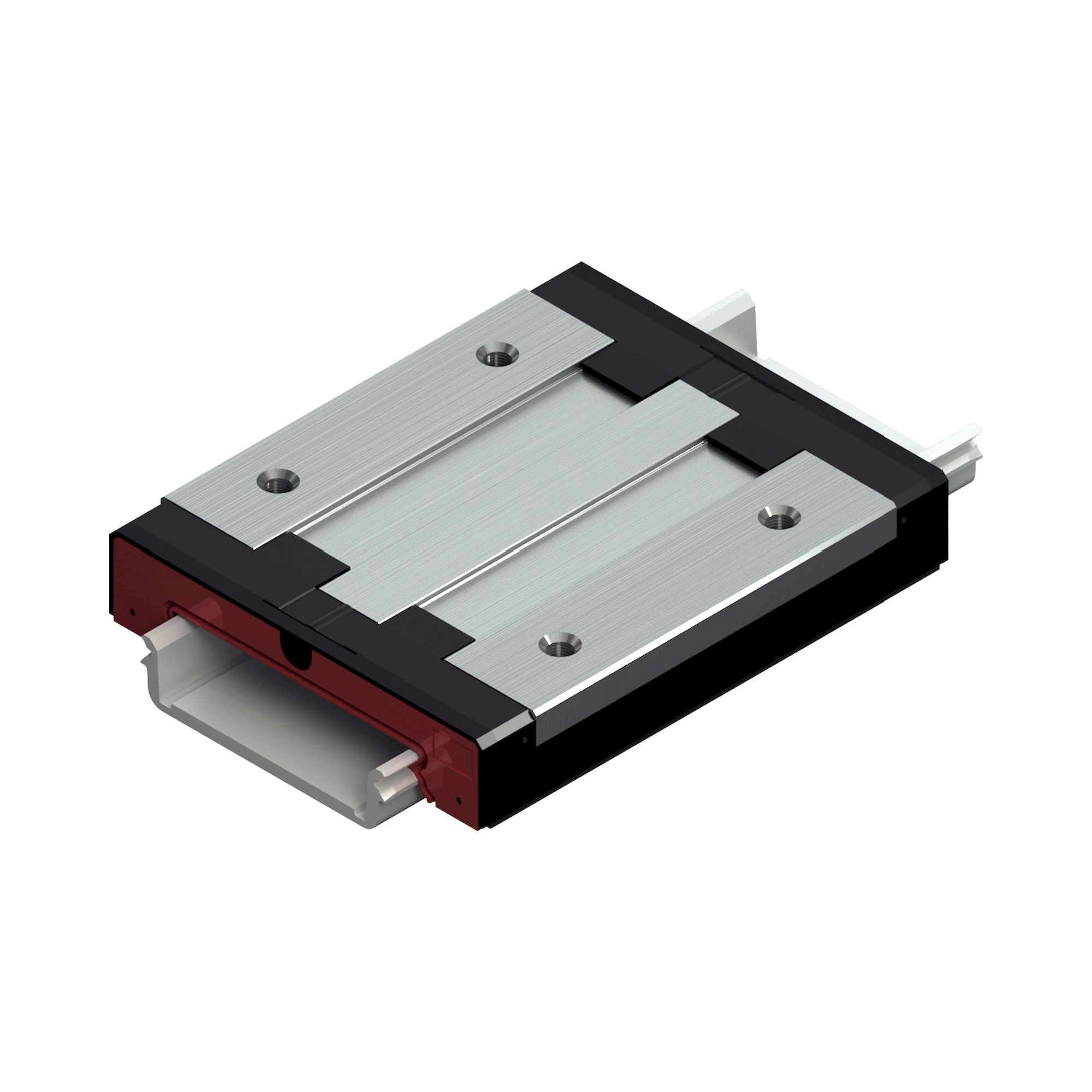

Bosch Rexroth R044129300. Miniaturwagen NRII MWA-012-BLS-C0-H-3
€86.20
-
Bosch Rexroth R044201300. Miniaturwagen NRII MWA-020-SNS-C1-H-3
€88.70
Total price
Miniaturwagen NRII MWA-012-BLS-C1-P-3 by Bosch Rexroth, material number R044121200. Size 12, material Corrosion-resistant, martensitic steel, accuracy class P - Precise, preload class C1 - Low preload, seal NS - N and longitudinal seal and lubrication Pre-lubricated. The dynamic load capacity is 4340 N. The static load capacity is 8250 N. Permissible values are up to 3 m/s travel speed and 250 m/s² acceleration. The weight is 0.12 kg.
Technical data
| Height runner block with guide rail | 14 mm |
|---|---|
| Pitch T guide rail | 25 mm |
| Ball chain | Without ball chain (standard) |
| Lubrication | Pre-lubricated |
| Maximum permissible linear speed vmax | 3 m/s |
| Nominal size | 12 |
| Static longitudinal moment load capacity ML0 footnote | Calculated values (derived from C, C<sub>0</sub>) |
| Preload class | C1 - Low preload |
| Static load capacity C0 | 8250 N |
| Dynamic load capacity C50 | 5470 N |
| Material (profiled rail systems) | Corrosion-resistant, martensitic steel |
| Height of runner block | 10 mm |
| Preload force | 87 N |
| Format | BLS - wide, long, standard height |
| Static torsional moment load capacity Mt0 footnote | Calculated values (derived from C, C<sub>0</sub>) |
| Maximum acceleration rate amax | 250 m/s² |
| Dynamic load capacity C100 | 4340 N |
| Dynamic longitudinal moment load capacity ML50 | 36.2 Nm |
| Dynamic longitudinal moment load capacity ML100 | 28.7 Nm |
| Dynamic torsional moment load capacity Mt50 | 64.8 Nm |
| Length of runner block | 59.5 mm |
| Runner block or guide rail | Runner block |
| Width of runner block | 40 mm |
| Static torsional moment load capacity Mt0 | 97.7 Nm |
| Dynamic torsional moment load capacity Mt100 | 51.4 Nm |
| Dimension T1 min | 6 mm |
| Static longitudinal moment load capacity ML0 | 54.6 Nm |
| Linear guide type | Miniature ball rail system |
| Version | Ball rail system |
| Accuracy class | P - Precise |
| Dimension B1 | 45 mm |
| Seal | NS - N and longitudinal seal |
| Permissible ambient temperature (min) | <prefix>-</prefix>10<suffix></suffix> °C |
| Permissible ambient temperature (max) | <prefix>+</prefix>80<suffix></suffix> °C |
| Weight | 0.12 kg |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Norm | DIN 636, DIN ISO 14728-1 |
|---|---|
| Manufacturer Nr. | R044121200 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.100000 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Preload | C1 |
| Accuracy class | P - Precision |
| Position sensing | No |
