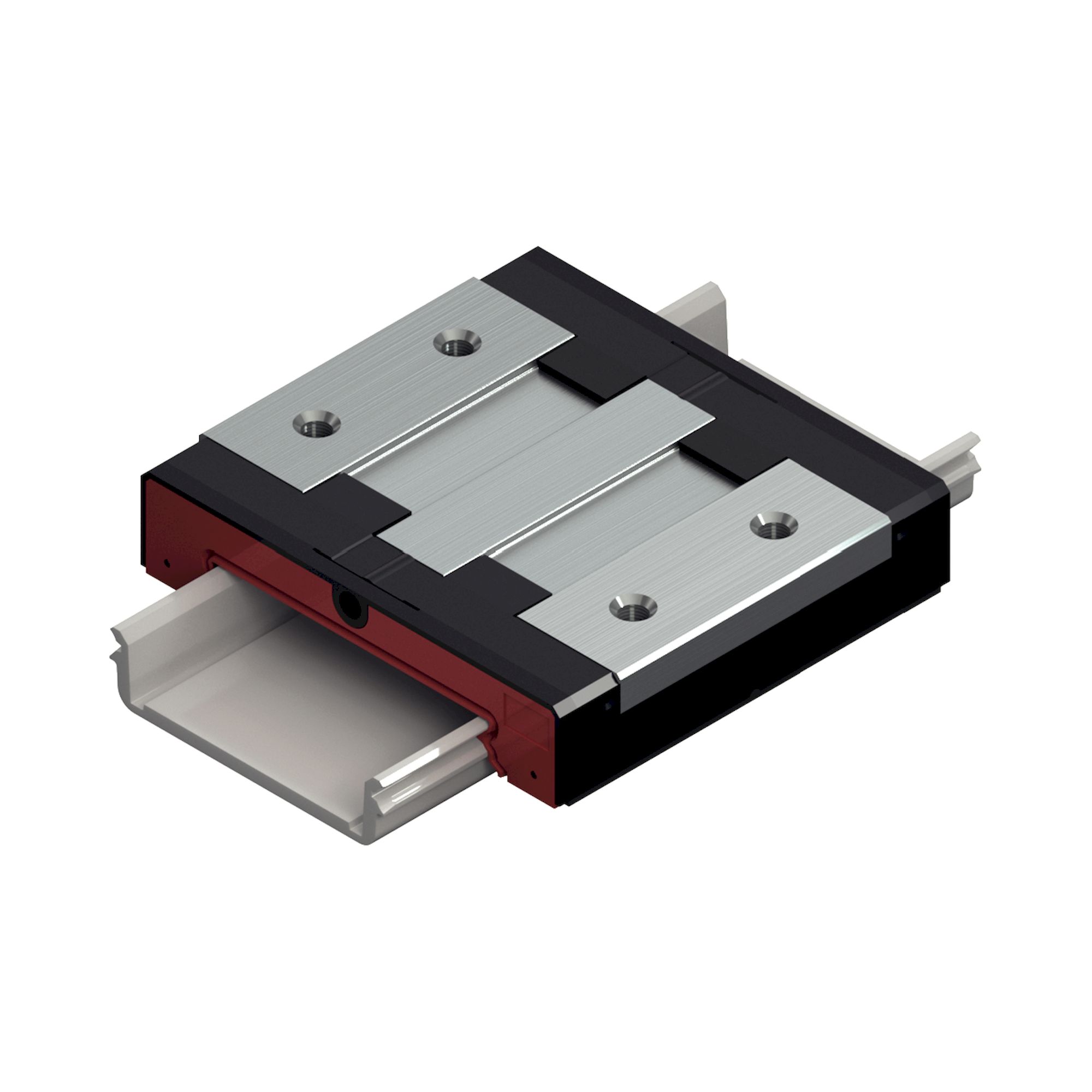

Miniature runner block MWA-015-SNS-C0-N-0 by Bosch Rexroth, material number R044259440. Size 15, material Corrosion-resistant, martensitic steel, accuracy class N - Normal, preload class C0 - Without preload (clearance), seal NS - N and longitudinal seal and lubrication Without lubrication (dry).
Miniature runner block MWA-015-SNS-C0-N-0 - Bosch Rexroth R044259440
BOSCH REXROTH
Original product
Net price (excl. VAT)
€61.24
Item
BRR-R044259440
Manufacturer no.
R044259440
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.R044259440
Country of originGermany
ConditionNew
Article
BRR-R044259440
Frequently Bought Together
-
This Item:
€61.24
-
Miniature runner block MWA-009-BLS-C0-N-3 - Bosch Rexroth R044189401
€73.58
-
Miniature runner block MWA-015-SNS-C1-P-3 - Bosch Rexroth R044251201
€70.43
Total price
Miniature runner block MWA-015-SNS-C0-N-0 by Bosch Rexroth, material number R044259440. Size 15, material Corrosion-resistant, martensitic steel, accuracy class N - Normal, preload class C0 - Without preload (clearance), seal NS - N and longitudinal seal and lubrication Without lubrication (dry). The dynamic load capacity is 4200 N. The static load capacity is 6260 N. Permissible values are up to 3 m/s travel speed and 250 m/s² acceleration. The weight is 0.08 kg.
Technical data
| Height runner block with guide rail | 16 mm |
|---|---|
| Pitch T guide rail | 40 mm |
| Ball chain | Without ball chain (standard) |
| Lubrication | Without lubrication (dry) |
| Maximum permissible linear speed vmax | 3 m/s |
| Nominal size | 15 |
| Static longitudinal moment load capacity ML0 footnote | Calculated values (derived from C, C<sub>0</sub>) |
| Preload class | C0 - Without preload (clearance) |
| Static load capacity C0 | 6260 N |
| Dynamic load capacity C50 | 5290 N |
| Material (profiled rail systems) | Corrosion-resistant, martensitic steel |
| Height of runner block | 12 mm |
| Format | SNS - slimline, normal, standard height |
| Static torsional moment load capacity Mt0 footnote | Calculated values (derived from C, C<sub>0</sub>) |
| Maximum acceleration rate amax | 250 m/s² |
| Dynamic load capacity C100 | 4200 N |
| Dynamic longitudinal moment load capacity ML50 | 23.1 Nm |
| Dynamic longitudinal moment load capacity ML100 | 18.3 Nm |
| Dynamic torsional moment load capacity Mt50 | 39.3 Nm |
| Length of runner block | 43 mm |
| Runner block or guide rail | Runner block |
| Width of runner block | 32 mm |
| Static torsional moment load capacity Mt0 | 46.3 Nm |
| Dynamic torsional moment load capacity Mt100 | 31.2 Nm |
| Dimension T1 min | 6 mm |
| Static longitudinal moment load capacity ML0 | 27 Nm |
| Linear guide type | Miniature ball rail system |
| Version | Ball rail system |
| Accuracy class | N - Normal |
| Dimension B1 | 27.2 mm |
| Seal | NS - N and longitudinal seal |
| Permissible ambient temperature (min) | <prefix>-</prefix>10<suffix></suffix> °C |
| Permissible ambient temperature (max) | <prefix>+</prefix>80<suffix></suffix> °C |
| Weight | 0.08 kg |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Manufacturer Nr. | R044259440 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.100000 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
