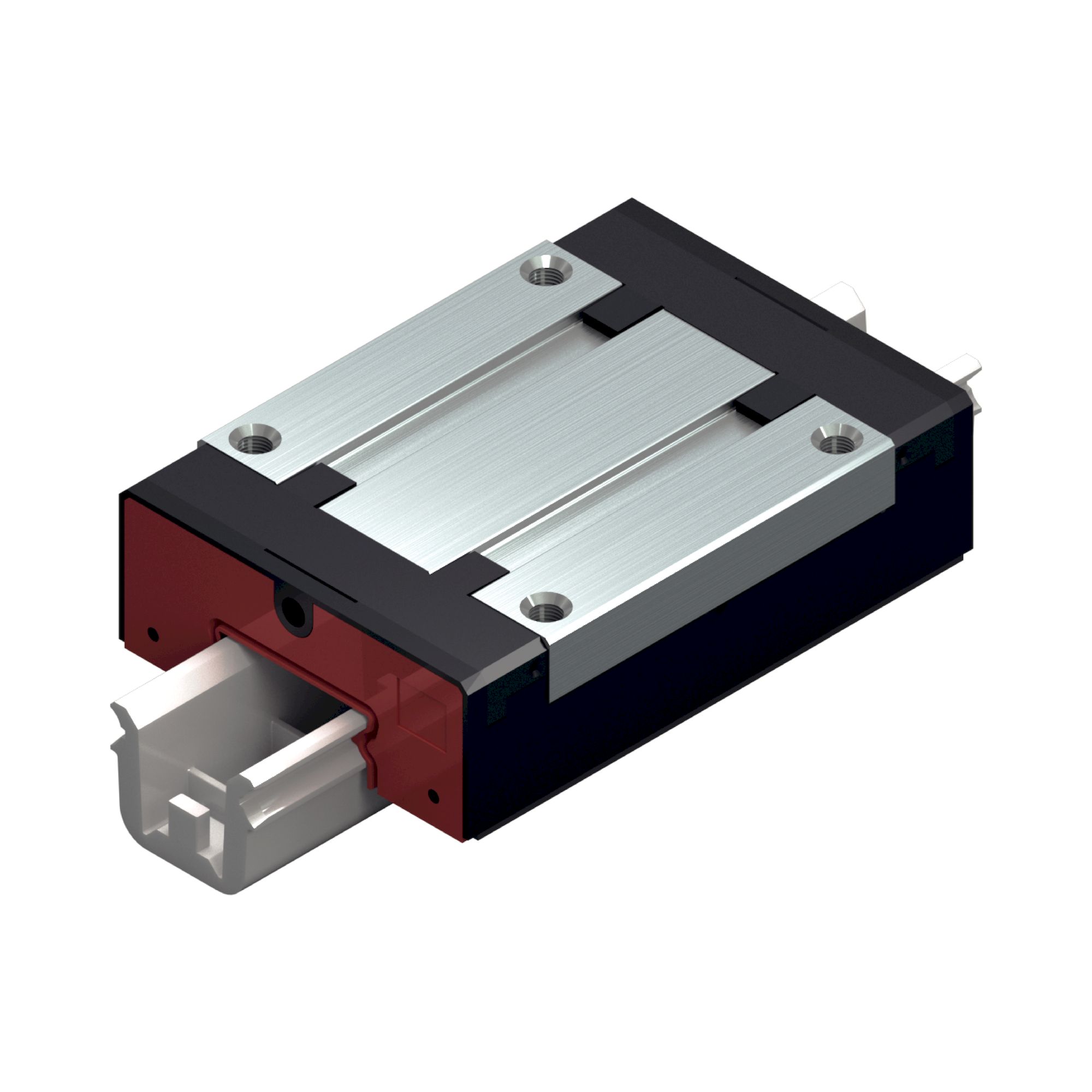

Bosch Rexroth R044271300. Miniaturwagen NRII MWA-007-SNS-C1-H-3

Name: Bosch Rexroth R044271300. Miniaturwagen NRII MWA-007-SNS-C1-H-3
Brand: Bosch Rexroth
SKU: BRR-R044271300
Price: 42.18 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Germany

Net

€42.18

excl. VAT

Item BRR-R044271300

Manufacturer no. R044271300

Question about this item

Datasheet (PDF) User manual 4 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Miniaturwagen NRII MWA-007-SNS-C1-H-3 by Bosch Rexroth, material number R044271300. Size 7, material Corrosion-resistant, martensitic steel, accuracy class H - Highly accurate, preload class C1 - Low preload, seal NS - N seal and lubrication Pre-lubricated. The dynamic load capacity is 860 N. The static load capacity is 1400 N. Permissible values are up to 3 m/s travel speed and 250 m/s² acceleration. The weight is 0.03 kg.

Technical data

Height runner block with guide rail	8 mm
Pitch T guide rail	15 mm
Ball chain	Without ball chain (standard)
Lubrication	Pre-lubricated
Maximum permissible linear speed vmax	3 m/s
Nominal size	7
Static longitudinal moment load capacity ML0 footnote	Calculated values (derived from C, C<sub>0</sub>)
Preload class	C1 - Low preload
Static load capacity C0	1400 N
Dynamic load capacity C50	1080 N
Material (profiled rail systems)	Corrosion-resistant, martensitic steel
Height of runner block	6.5 mm
Preload force	17 N
Format	SNS - slimline, normal, standard height
Static torsional moment load capacity Mt0 footnote	Calculated values (derived from C, C<sub>0</sub>)
Maximum acceleration rate amax	250 m/s²
Dynamic load capacity C100	860 N
Dynamic longitudinal moment load capacity ML50	2.4 Nm
Dynamic longitudinal moment load capacity ML100	1.9 Nm
Dynamic torsional moment load capacity Mt50	3.9 Nm
Length of runner block	24 mm
Runner block or guide rail	Runner block
Width of runner block	17 mm
Static torsional moment load capacity Mt0	5.1 Nm
Dynamic torsional moment load capacity Mt100	3.1 Nm
Dimension T1 min	5 mm
Static longitudinal moment load capacity ML0	3.2 Nm
Linear guide type	Miniature ball rail system
Version	Ball rail system
Accuracy class	H - Highly accurate
Dimension B1	14.9 mm
Seal	NS - N seal
Permissible ambient temperature (min)	<prefix>-</prefix>10<suffix></suffix> °C
Permissible ambient temperature (max)	<prefix>+</prefix>80<suffix></suffix> °C
Weight	0.03 kg
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Manufacturer	Bosch Rexroth
Manufacturer Nr.	R044271300
GPSR manufacturer information	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
Norm	DIN 636, DIN ISO 14728-1
Preload	C1
