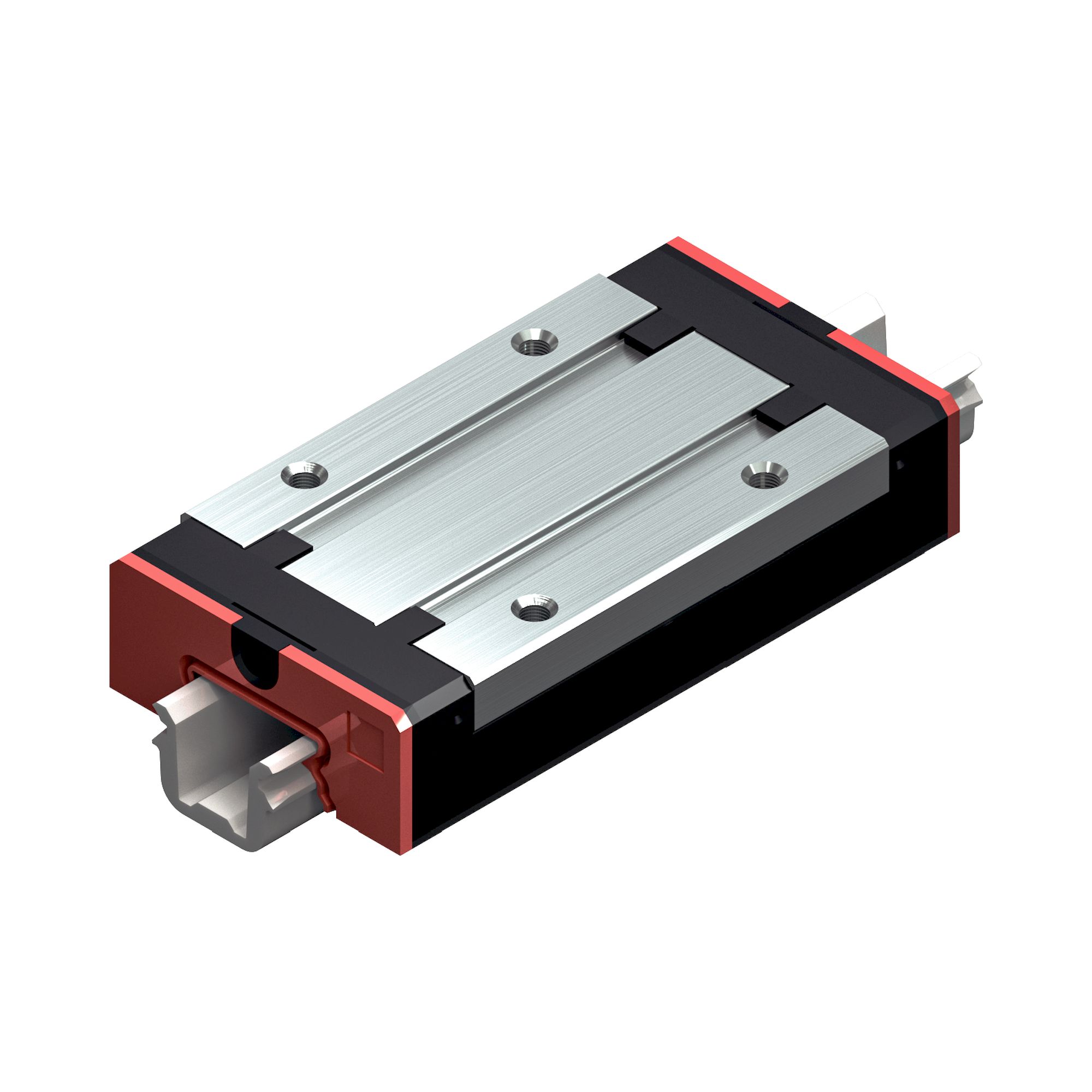

Miniature runner block MWA-009-SLS-C1-P-3 - Bosch Rexroth R044481201

Name: Miniature runner block MWA-009-SLS-C1-P-3 - Bosch Rexroth R044481201
Brand: Bosch Rexroth
SKU: BRR-R044481201
Price: 63.14 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Germany

Net

€63.14

excl. VAT

Item BRR-R044481201

Manufacturer no. R044481201

Question about this item

Datasheet (PDF) User manual 3 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Miniature runner block MWA-009-SLS-C1-P-3 by Bosch Rexroth, material number R044481201. Size 9/M3, material Corrosion-resistant, martensitic steel, accuracy class P - Precise, preload class C1 - Low preload, seal LS - Low-friction seal (mini) and lubrication Pre-lubricated. The dynamic load capacity is 1570 N. The static load capacity is 3150 N. Permissible values are up to 3 m/s travel speed and 250 m/s² acceleration. The weight is 0.04 kg.

Technical data

Height runner block with guide rail	10 mm
Pitch T guide rail	20 mm
Ball chain	Without ball chain (standard)
Lubrication	Pre-lubricated
Maximum permissible linear speed vmax	3 m/s
Nominal size	9/M3
Static longitudinal moment load capacity ML0 footnote	Calculated values (derived from C, C<sub>0</sub>)
Preload class	C1 - Low preload
Static load capacity C0	3150 N
Dynamic load capacity C50	1980 N
Material (profiled rail systems)	Corrosion-resistant, martensitic steel
Height of runner block	8 mm
Preload force	31 N
Format	SLS - slimline, long, standard height
Static torsional moment load capacity Mt0 footnote	Calculated values (derived from C, C<sub>0</sub>)
Maximum acceleration rate amax	250 m/s²
Dynamic load capacity C100	1570 N
Dynamic longitudinal moment load capacity ML50	8.8 Nm
Dynamic longitudinal moment load capacity ML100	7 Nm
Dynamic torsional moment load capacity Mt50	9.1 Nm
Length of runner block	41.4 mm
Runner block or guide rail	Runner block
Width of runner block	20 mm
Static torsional moment load capacity Mt0	14.5 Nm
Dynamic torsional moment load capacity Mt100	7.2 Nm
Dimension T1 min	6 mm
Static longitudinal moment load capacity ML0	14 Nm
Linear guide type	Miniature ball rail system
Version	Ball rail system
Accuracy class	P - Precise
Dimension B1	31.3 mm
Seal	LS - Low-friction seal (mini)
Permissible ambient temperature (min)	<prefix>-</prefix>10<suffix></suffix> °C
Permissible ambient temperature (max)	<prefix>+</prefix>80<suffix></suffix> °C
Weight	0.04 kg
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Manufacturer	Bosch Rexroth
Manufacturer Nr.	R044481201
GPSR manufacturer information	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
