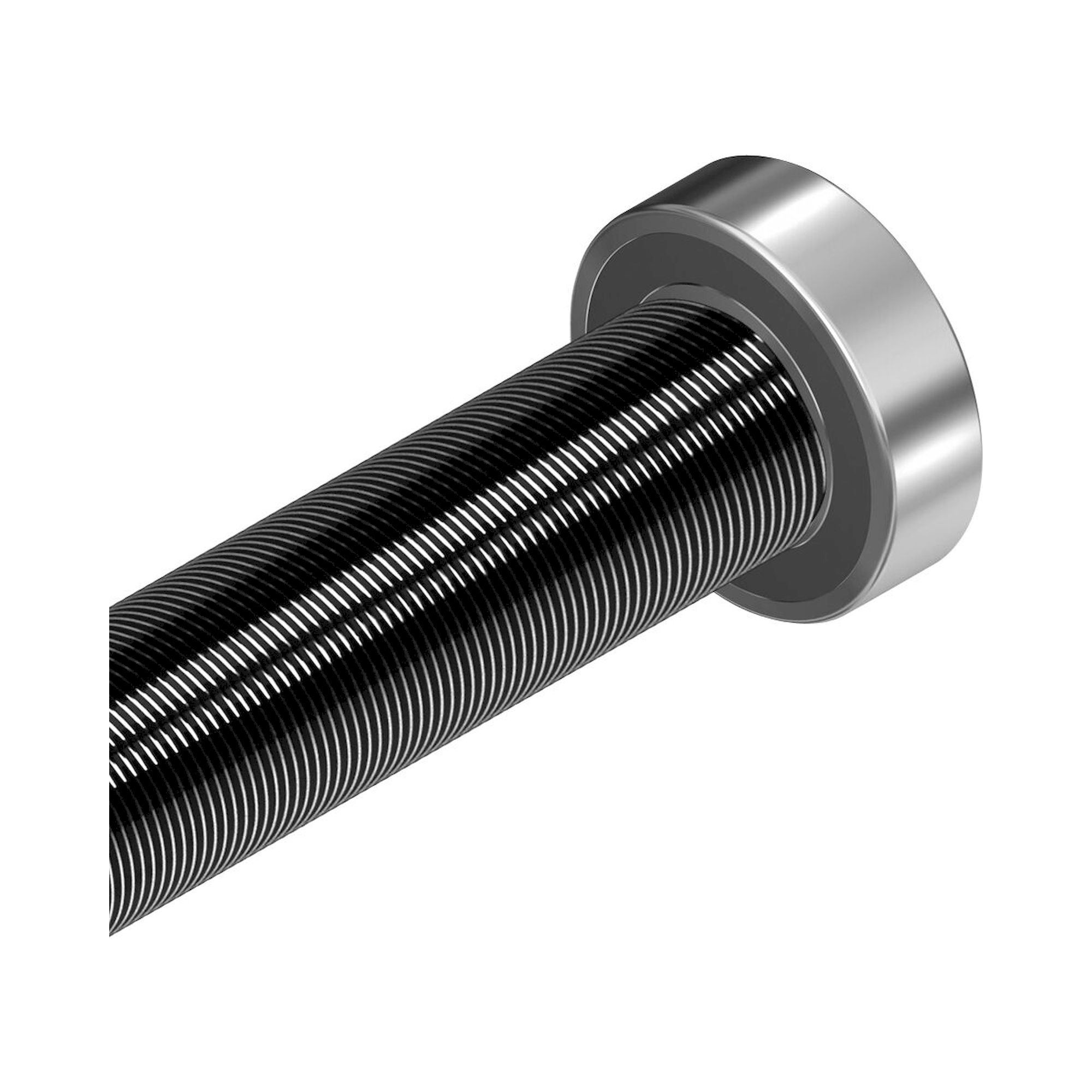

Floating bearing LAD-A-S 5 for ball screw 8 x 1/2/2.5/5 - Bosch Rexroth R159060500

At the screw end of a ball screw assembly in size 8 x 1/2/2.5/5, this bearing guides the screw end radially and allows the screw to change length. The LAD-A-S 5 offers a dynamic load capacity of 1140 N and a static load capacity of 380 N.

The unit comprises: deep-groove ball bearing to DIN 625 .2RS, retaining ring DIN 471 (2 pcs). It fits screw ends of type 01, 02, 21, 31, 41, 61, 62, 71, 72.

Benefits

• Dynamic load capacity C = 1140 N, static load capacity C0 = 380 N
• Outer diameter D 16 mm for the mounting bore
• Suitable for ball screw assemblies 8 x 1/2/2.5/5

Installation note

The axial forces are taken by the fixed bearing at the opposite screw end.
