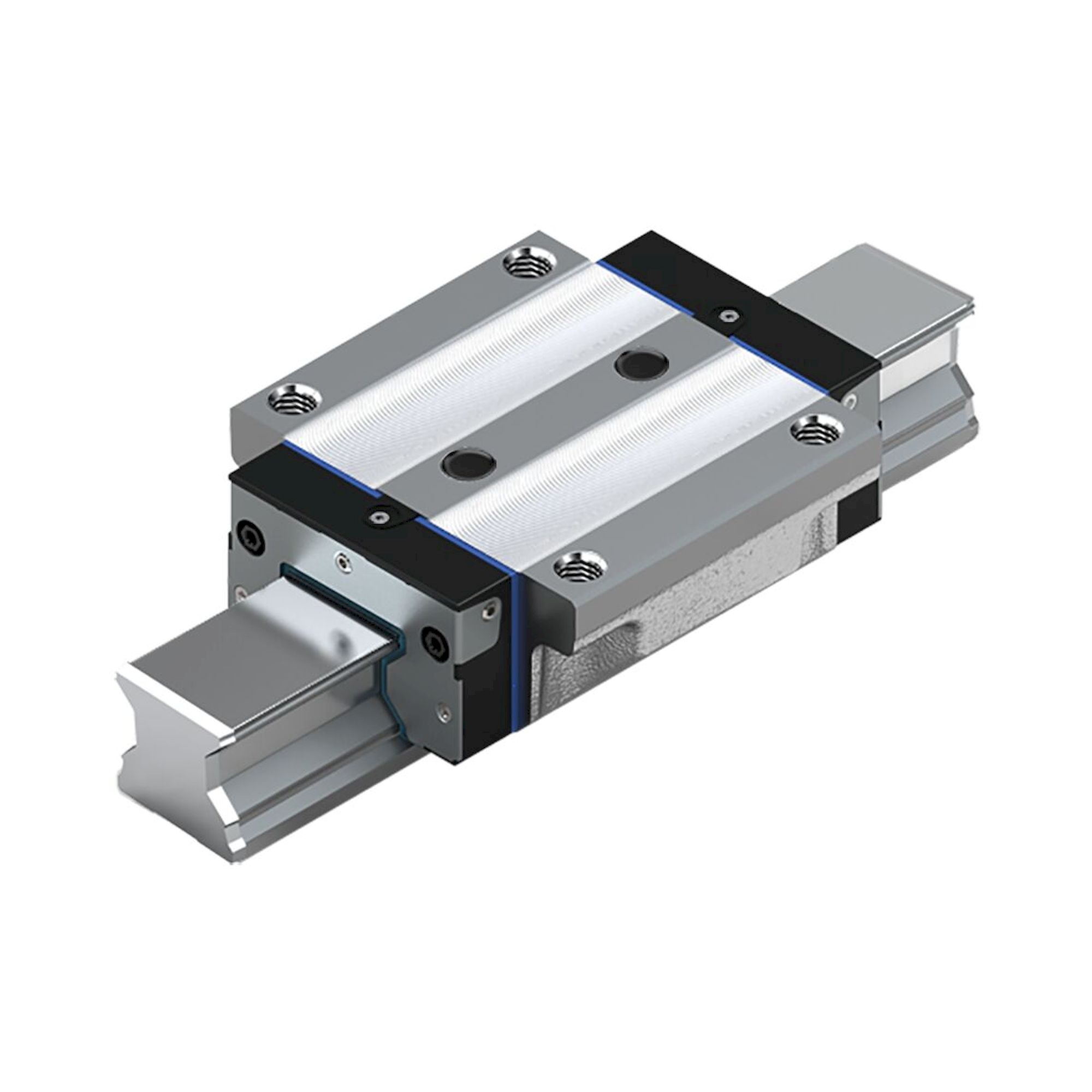

Roller runner block RWD-055-SLS-C3-P-2 by Bosch Rexroth, material number R18235322X. Size 55, material Carbon steel, accuracy class P - Precise, preload class C3 - High preload, seal DS - Double-lip seal and lubrication Preserved.
Roller runner block RWD-055-SLS-C3-P-2 - Bosch Rexroth R18235322X
BOSCH REXROTH
Original product
Net price (excl. VAT)
€436.62
Item
BRR-R18235322X
Manufacturer no.
R18235322X
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.R18235322X
Country of originGermany
ConditionNew
Article
BRR-R18235322X
Frequently Bought Together
-
This Item:
€436.62
-
Reduzierstück M6X8-G1/8 - Bosch Rexroth R345503204
€6.97
-
Roller runner block RWD-045-SNH-C3-U-2 - Bosch Rexroth R18214392X
€363.60
Total price
Roller runner block RWD-055-SLS-C3-P-2 by Bosch Rexroth, material number R18235322X. Size 55, material Carbon steel, accuracy class P - Precise, preload class C3 - High preload, seal DS - Double-lip seal and lubrication Preserved. The dynamic load capacity is 174000 N. The static load capacity is 374900 N. Permissible values are up to 4 m/s travel speed and 150 m/s² acceleration. The weight is 5.3 kg.
Technical data
| Friction coefficient μ | 0.0004 ... 0.001 |
|---|---|
| Height runner block with guide rail | 70 mm |
| Pitch T guide rail | 60 mm |
| Nominal size | 55 |
| Preload class | C3 - High preload |
| Static load capacity C0 | 374900 N |
| Height of runner block | 58 mm |
| Format | SLS - slimline, long, standard height |
| Length of runner block | 209.65 mm |
| Runner block or guide rail | Runner block |
| Width of runner block | 100 mm |
| Static torsional moment load capacity Mt0 | 10990 Nm |
| Dynamic torsional moment load capacity Mt100 | 5100 Nm |
| Static longitudinal moment load capacity ML0 | 9520 Nm |
| Linear guide type | Roller rail system |
| Version | Roller rail systems |
| Accuracy class | P - Precise |
| Dimension B1 | 162.1 mm |
| Friction force FR | 45 N |
| Friction coefficient μ min. | 0.0004 |
| Model | High-precision roller runner block |
| Lubrication | Preserved |
| Maximum permissible linear speed vmax | 4 m/s |
| Friction coefficient μ max. | 0.001 |
| Dynamic load capacity C50 | 214000 N |
| Material (profiled rail systems) | Carbon steel |
| Preload force | 20900 N |
| Maximum acceleration rate amax | 150 m/s² |
| Dynamic load capacity C100 | 174000 N |
| Dynamic longitudinal moment load capacity ML50 | 5440 Nm |
| Dynamic longitudinal moment load capacity ML100 | 4420 Nm |
| Dynamic torsional moment load capacity Mt50 | 6270 Nm |
| Dimension T1 min | 20 mm |
| Seal | DS - Double-lip seal |
| Permissible ambient temperature (min) | <prefix>-</prefix>10<suffix></suffix> °C |
| Permissible ambient temperature (max) | <prefix>+</prefix>80<suffix></suffix> °C |
| Weight | 5.3 kg |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Manufacturer Nr. | R18235322X |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.100000 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
