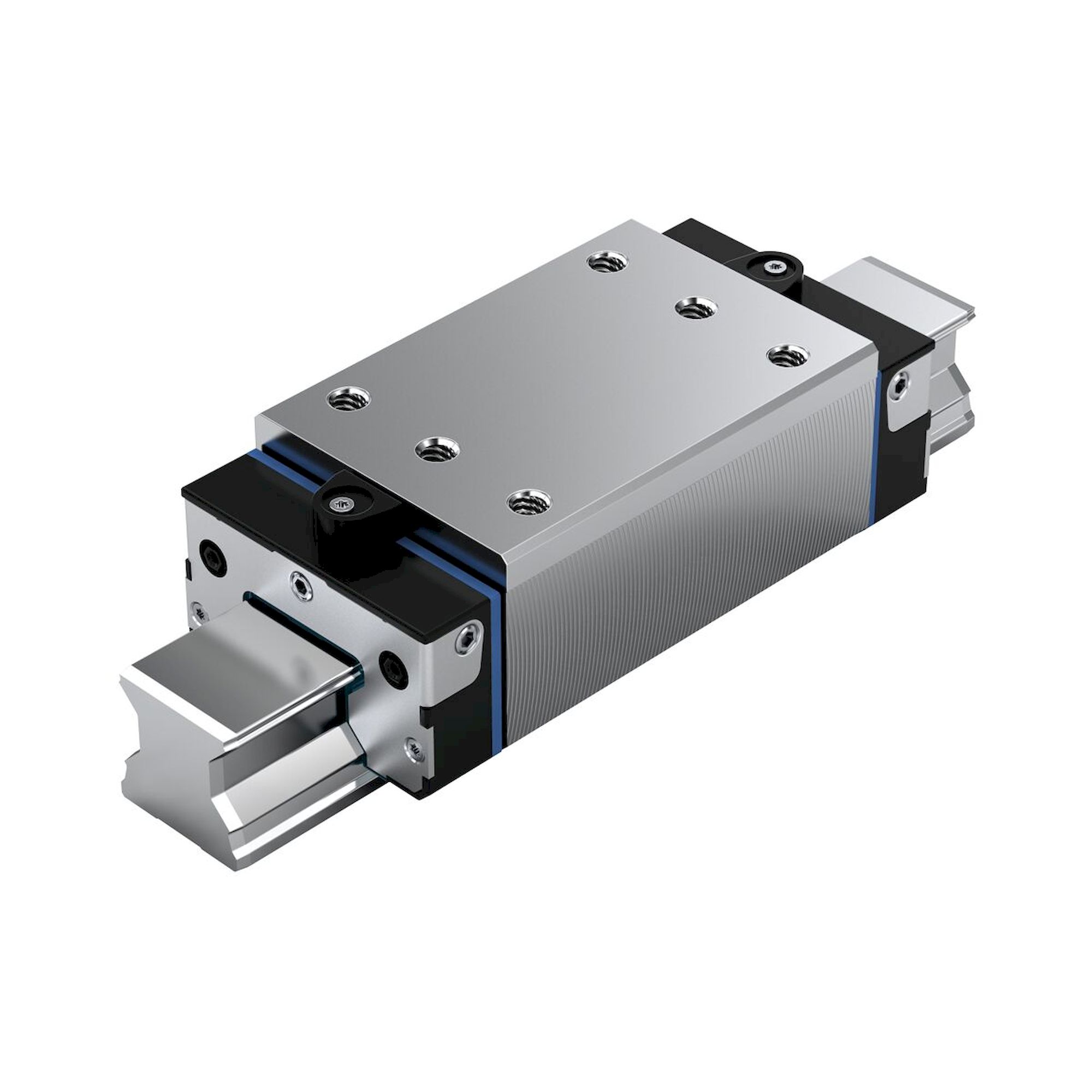

Roller runner block RWD-035-SLH-C2-P-2-AS - Bosch Rexroth R18243222A
Roller runner block RWD-035-SLH-C2-P-2-AS by Bosch Rexroth, material number R18243222A. Size 35, material Carbon steel, accuracy class P - Precise, preload class C2 - Medium preload, seal AS - Double-lip seal with reinforced longitudinal seal and lubrication Preserved.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Roller runner block RWD-035-SLH-C2-P-2-AS by Bosch Rexroth, material number R18243222A. Size 35, material Carbon steel, accuracy class P - Precise, preload class C2 - Medium preload, seal AS - Double-lip seal with reinforced longitudinal seal and lubrication Preserved. The dynamic load capacity is 74900 N. The static load capacity is 155400 N. Permissible values are up to 4 m/s travel speed and 150 m/s² acceleration. The weight is 2.24 kg.
Technical data
| Friction coefficient μ | 0.0004 ... 0.001 |
|---|---|
| Height runner block with guide rail | 55 mm |
| Pitch T guide rail | 40 mm |
| Nominal size | 35 |
| Preload class | C2 - Medium preload |
| Static load capacity C0 | 155400 N |
| Height of runner block | 48 mm |
| Format | SLH - slimline, long, high |
| Length of runner block | 142 mm |
| Runner block or guide rail | Runner block |
| Width of runner block | 70 mm |
| Static torsional moment load capacity Mt0 | 3080 Nm |
| Dynamic torsional moment load capacity Mt100 | 1490 Nm |
| Static longitudinal moment load capacity ML0 | 2530 Nm |
| Linear guide type | Roller rail system |
| Version | Roller rail systems |
| Accuracy class | P - Precise |
| Dimension B1 | 103.6 mm |
| Friction force FR | 35 N |
| Friction coefficient μ min. | 0.0004 |
| Model | High-precision roller runner block |
| Lubrication | Preserved |
| Maximum permissible linear speed vmax | 4 m/s |
| Friction coefficient μ max. | 0.001 |
| Dynamic load capacity C50 | 92100 N |
| Material (profiled rail systems) | Carbon steel |
| Preload force | 5540 N |
| Maximum acceleration rate amax | 150 m/s² |
| Dynamic load capacity C100 | 74900 N |
| Dynamic longitudinal moment load capacity ML50 | 1500 Nm |
| Dynamic longitudinal moment load capacity ML100 | 1220 Nm |
| Dynamic torsional moment load capacity Mt50 | 1830 Nm |
| Dimension T1 min | 16 mm |
| Seal | AS - Double-lip seal with reinforced longitudinal seal |
| Permissible ambient temperature (min) | <prefix>-</prefix>10<suffix></suffix> °C |
| Permissible ambient temperature (max) | <prefix>+</prefix>80<suffix></suffix> °C |
| Weight | 2.24 kg |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Manufacturer | Bosch Rexroth |
| Manufacturer Nr. | R18243222A |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
Downloads
Datasheet
- Datasheet (PDF)
- Roller rail systems High Precision RSHP Roller runner blocks, roller guide rails, accessories (R999000354) EN
- Rollenschienenführungen Rollenwagen, Rollenschienen, Zubehör (R999000353) DE
- Guidages à rouleaux sur rails de haute précision RSHP Guides à rouleaux, rails de guidage rouleaux (R999000355) FR
