Conductive Black Tubing, Unprinted, 75 mm x 500 m, LLDPE 70 µm - Desco 203510

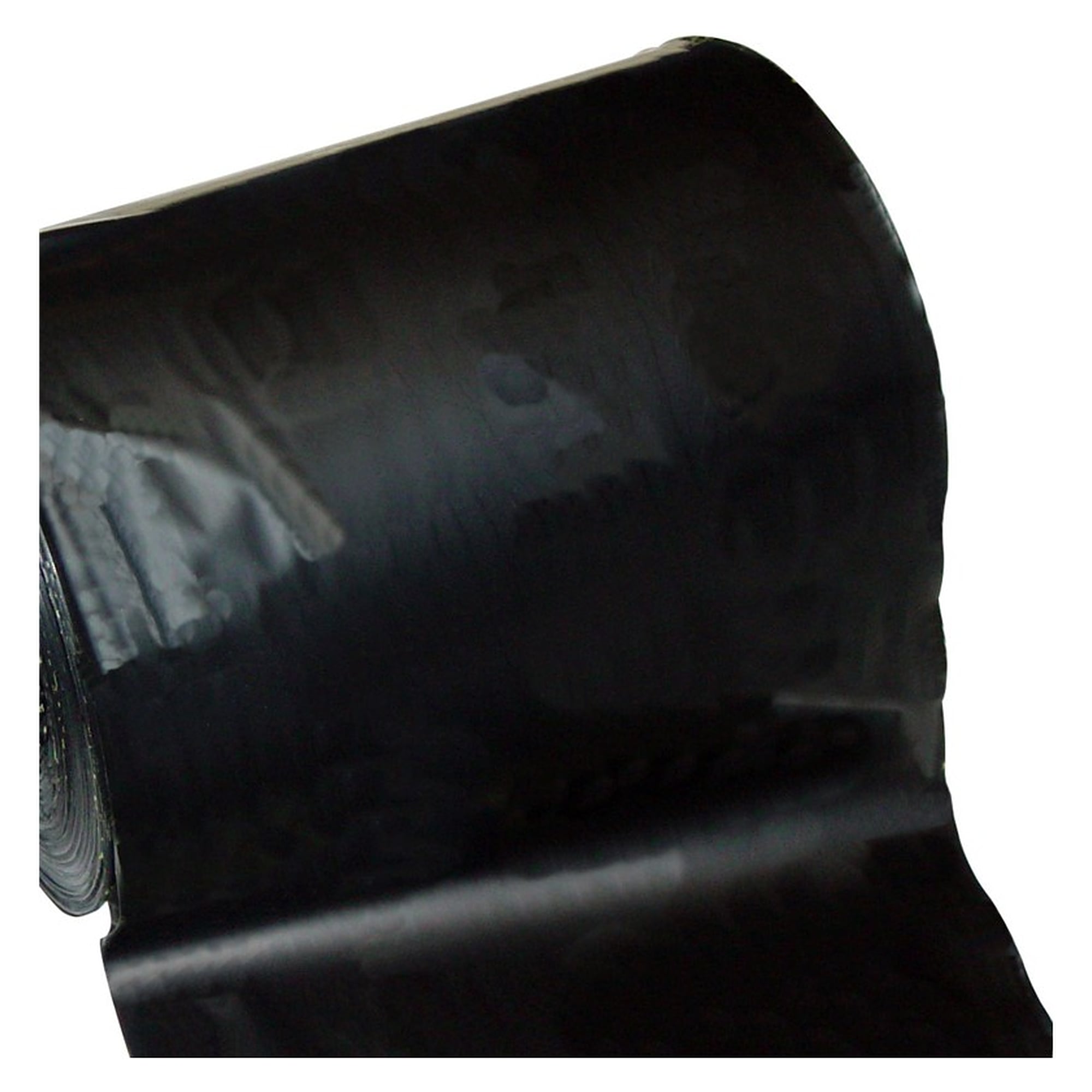

When PCBs, assemblies or cable sets come in many lengths, cutting bags from tubing beats stocking dozens of bag sizes. Desco conductive tubing 203510 is 75 mm wide and supplied on a 500 m roll. The carbon-loaded LLDPE conducts at Rs 1 x 10² to < 1 x 10⁵ ohms regardless of humidity. One cut and one heat seal give you a bag of exactly the right length.

Key benefits

• Conductive at Rs 1 x 10² to < 1 x 10⁵ ohms, carbon loading keeps it consistent and independent of humidity
• Two-layer tubing without side seams: cut to length and heat seal the ends
• 70 µm LLDPE with 22 MPa tensile strength and 750 % elongation, puncture resistant and often re-used
• Resistant to common solvents, recyclable
• 500 m roll with no more than one splice, for less changeover at the packing bench

Applications

Cutting bags for PCBs, assemblies and components in the EPA and in order picking, intimate-contact packaging made of conductive material per IEC 61340-5-3. For transporting ESD sensitive items outside the EPA the standard also requires a shielding structure, which black film alone does not provide. As the film is unprinted, mark the package with ESD labels where needed.

Standards

Meets the requirements of IEC 61340-5-1 and packaging standard IEC 61340-5-3. Surface resistance tested per IEC 61340-2-3.
