Pink Dissipative Open Bag, 72 µm, 610 x 915 mm, Pack of 100 - Desco 204155

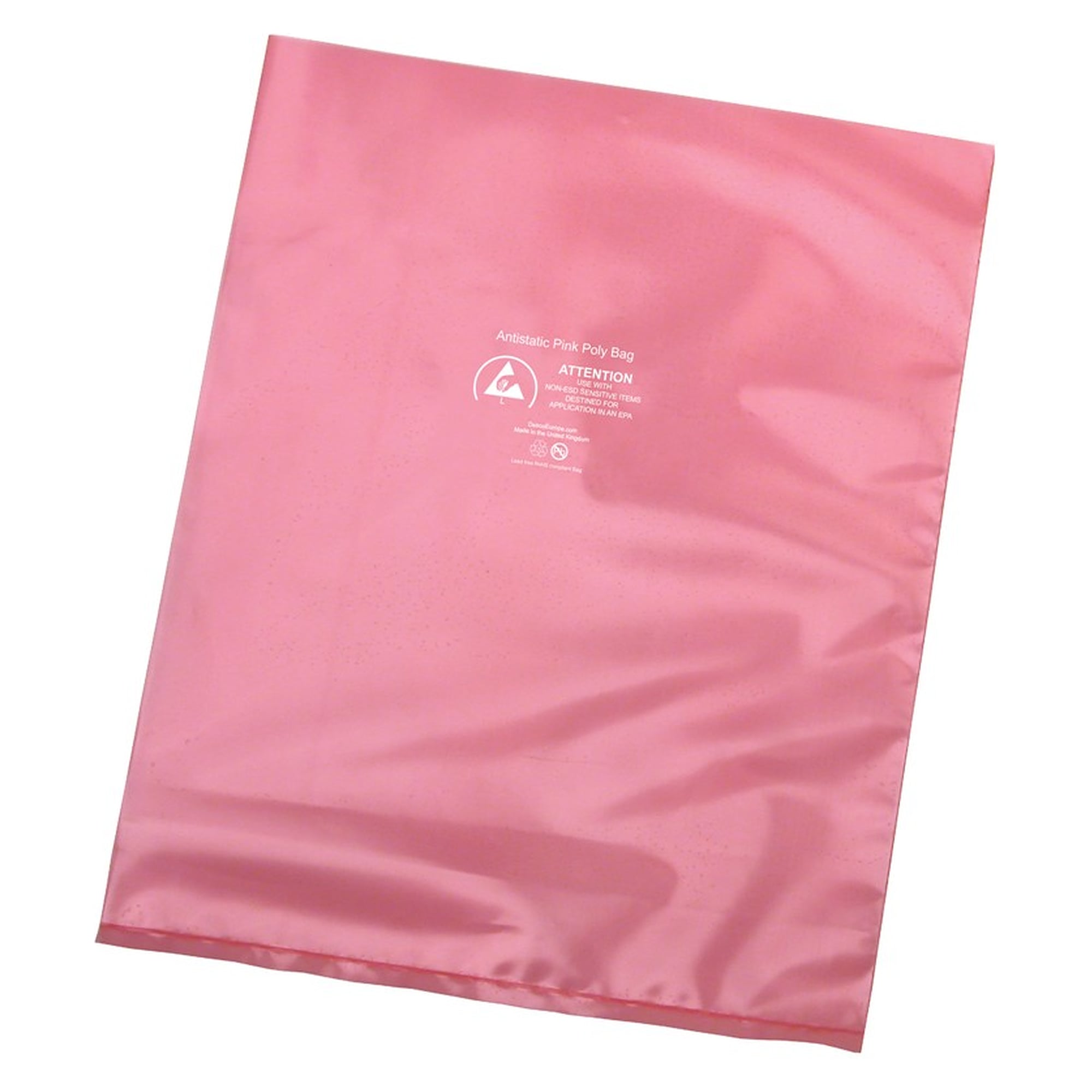

Dissipative open bag made of pink, amine-free polyethylene, size 610 x 915 mm, pack of 100. Surface resistance 10^5 to below 10^11 ohms inside and out. Open top with lot number, for small parts in the EPA.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Screws, passive components and other small parts move through the EPA between stores, assembly and test, and their packaging must not build up charge on its own. Desco bag 204155 measures 610 x 915 mm and is made of pink polyethylene with antistatic additive. Inner and outer surface resistance is 1 x 105 to < 1 x 1011 ohms, while the film stays transparent.
Key benefits
- Dissipative inside and out: surface resistance 1 x 105 to < 1 x 1011 ohms, static decay under 2 s
- Amine-free and non-corrosive, safe for polycarbonate housings
- Open top for fast filling, close with a heat sealer or a label
- Lot number on every bag for traceability
- Transparent film, contents can be identified without opening
Applications
Intimate-contact packaging for parts inside the EPA, such as passive components, screws, cables or assembly hardware, and packaging for non-ESD-sensitive items destined for use in the EPA. Transport and storage of ESD sensitive devices outside the EPA additionally require shielding packaging such as a shielding bag.
Standards
Surface resistance tested per IEC 61340-2-3. ESD protective symbol per IEC 61340-5-1. RoHS 2 and REACH compliant. The antistatic properties last when the film is stored cool and dry, avoid heat and outdoor storage.
Technical data
| Item number | 204155 |
|---|---|
| Manufacturer | Desco |
| Size (W x L) | 610 x 915 mm |
| Material | Polyethylene with antistatic additive, transparent pink, amine-free |
| Film thickness | 72 µm |
| Inner and outer surface resistance | 1 x 105 to < 1 x 1011 ohms at 50 % RH (IEC 61340-2-3) |
| Static decay | T1000 < 2 s at 50 % RH and 22 °C |
| Closure | open top, no closure |
| white print with descriptive text and ESD protective symbol per IEC 61340-5-1, lot number on every bag | |
| Tear resistance | > 50 N/mm |
| Seal strength | 18 N (ASTM D882) |
| Shelf life | 2 years, stored cool and dry |
| Sold per | pack of 100 |
| Weight per pack | 8 kg |
| Country of origin | United Kingdom |
| Weight | 8 kg |
| Manufacturer Nr. | 204155 |
| HS-Code | 39232100 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | United Kingdom |
| Sales unit | Packung à 100 Stück |
| Abmessung | 610 x 915 mm |
| Colour | Rose |
| ESD version | ESD (antistatic) |
| ESD-Eigenschaft | dissipative |
| Certification | DIN EN 61340-2-3, RoHS 2011/65/EU |
