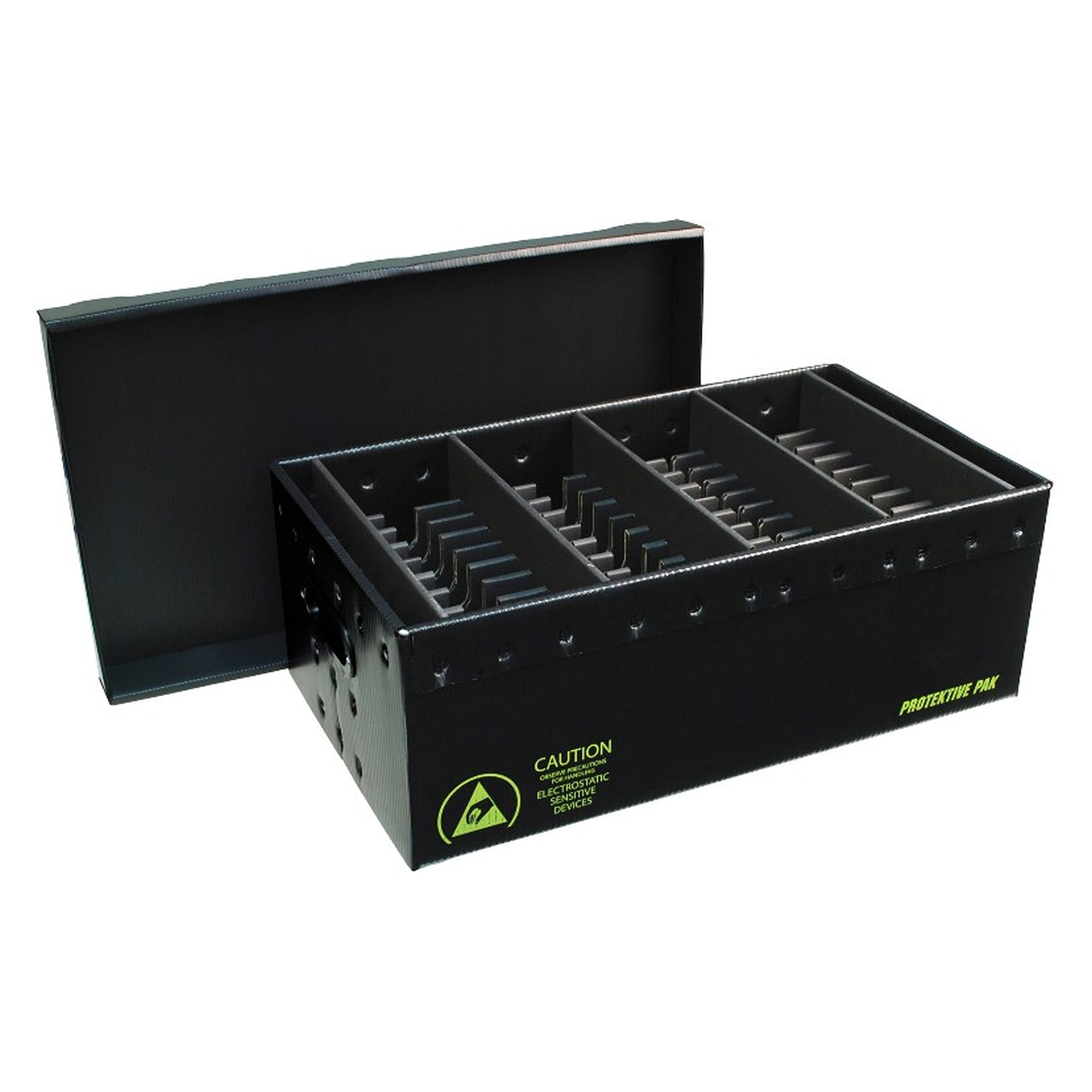

ESD Plastek Inplant Handler, Conductive, with Lid, Cell Size 152 x 254 x 25 mm - Desco 38995

Heavy or high-value assemblies that are stored in sorted form and moved across the plant often need more than corrugated board. The Plastek Inplant Handler combines a conductive polypropylene box (1 x 10² to < 1 x 10⁵ ohms) with a steel wire frame, a dissipative foam bottom against shock and partitions made of dissipative corrugated board. The cell size is 152 x 254 x 25 mm.

Key benefits

• Permanently conductive polypropylene at 1 x 10² to < 1 x 10⁵ ohms, humidity independent
• Rolled-over double-thickness sides and steel wire frame for high strength
• Dissipative foam bottom protects against ESD and physical shock
• Conductive hand holes for safe carrying with a path to ground
• Chemical and moisture resistant, lid included, ships assembled

Applications

Storage and transport of circuit boards, modules and assemblies between production, test and stores, including areas where pure cardboard or paper containers are not permitted.

Standards

Meets the ANSI/ESD S20.20 worksurface required limit per ANSI/ESD S4.1 and ESD TR53. Surface resistance per ANSI/ESD STM11.11.
