ESD Worksurface Mat Statfree Z2, 3-Layer, Blue, 3.2 mm, Roll 0.76 x 15.2 m - Desco 42516

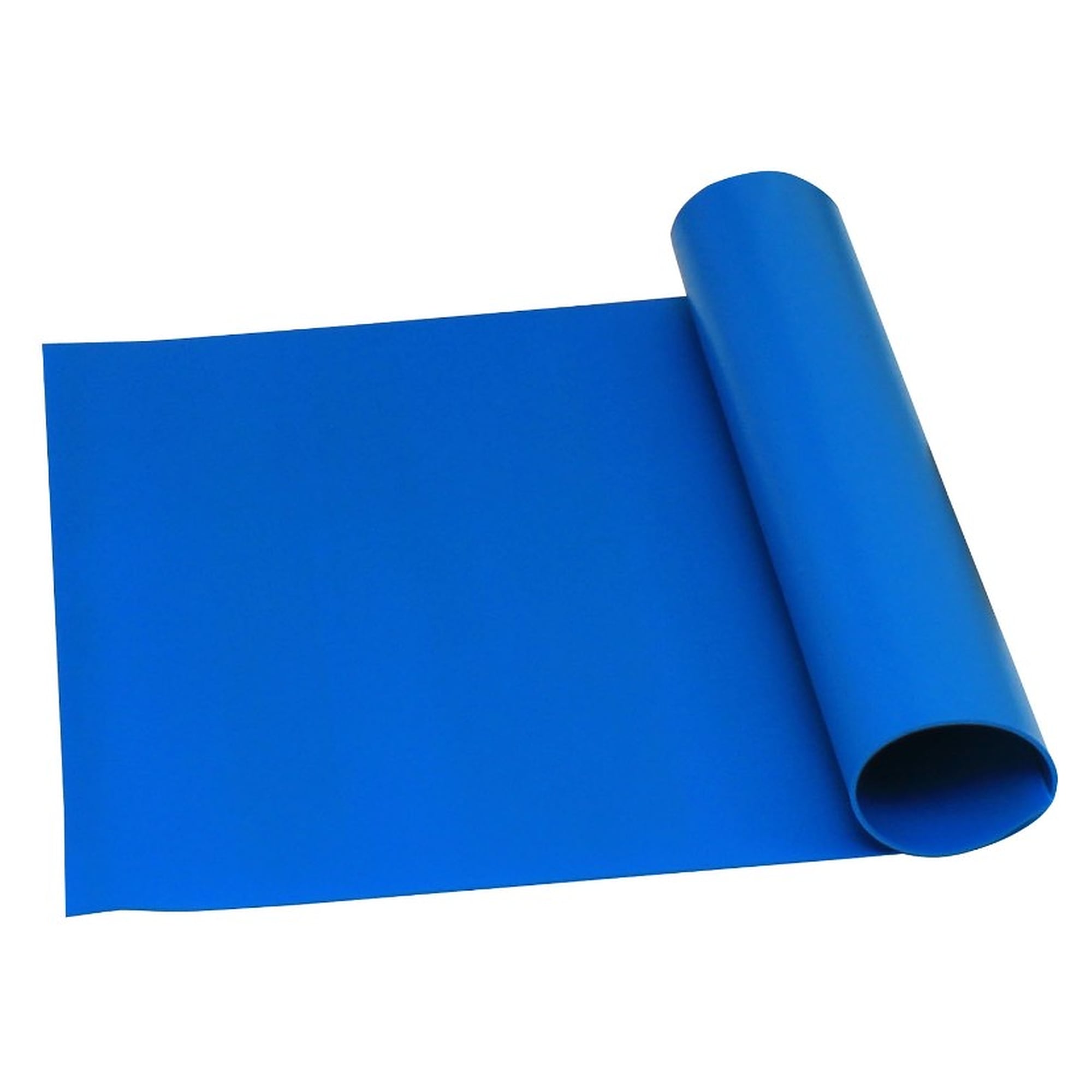

An ESD worksurface has to drain charges from parts placed on it in a controlled way, without discharging too fast. Statfree Z2 is a heat-fused 3-layer vinyl mat with dissipative top and bottom layers and a conductive grid mesh in between. Rg and Rp-p measure 1 x 10⁶ to < 1 x 10⁸ ohms. This blue roll measures 0.76 x 15.2 m at 3.2 mm thickness and can be cut to cover several workstations.

Key benefits

• Rg and Rp-p of 1 x 10⁶ to < 1 x 10⁸ ohms per IEC 61340-2-3, within the EN 61340-5-1 worksurface limit
• Conductive grid mesh inner layer provides a defined ground path, compatible with continuous monitors
• Heat-fused composite resists delamination and reduces unintended alternative ground paths
• Abrasion-resistant smooth top layer, easy to clean, electrical performance independent of humidity
• Dimensionally stable with minimal shrinkage and curling, cushions physical shock

Applications

Covering for ESD workbenches and shelves in electronics production, repair, laboratories and test areas. The roll is cut to the required length. Let the material relax for at least 4 hours before cutting and trim with a sharp knife.

Standards

Meets the worksurface limit of EN 61340-5-1 as well as ANSI/ESD S20.20 and the recommendation of ANSI/ESD S4.1. Verify Rg periodically with a surface resistance meter per EN 61340-5-1. Where the mat does not sit on a grounded surface, grounding hardware is required. Never daisy-chain mats to ground.
