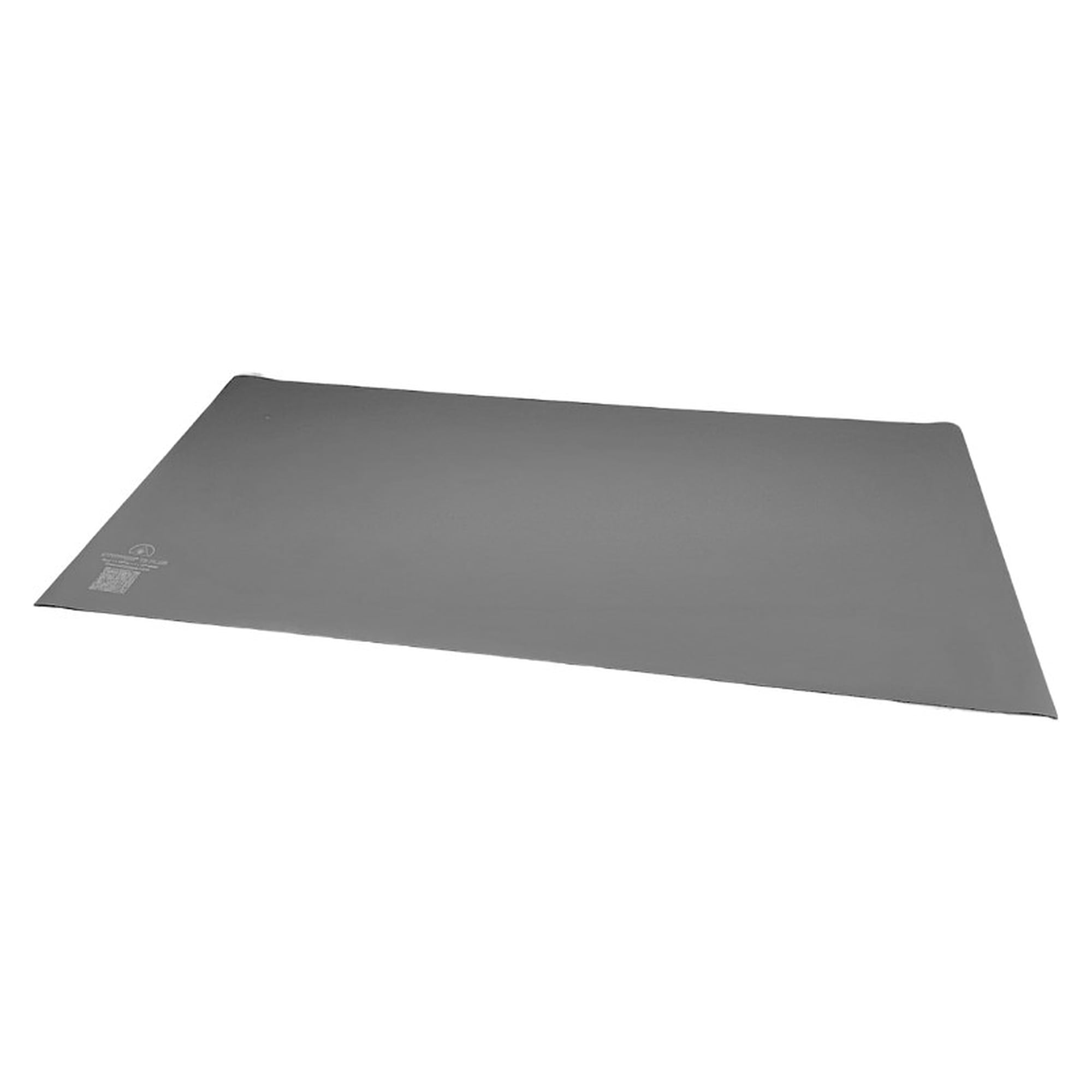

Statfree T2 Plus ESD Table Mat, Dissipative, Grey, 1.5 mm, 0.6 x 0.9 m - Desco 66446E

An ESD workstation needs a surface that generates no charge of its own and drains charges from parts and tools in a controlled way. The Statfree T2 Plus table mat in 0.6 x 0.9 m is made of oil-resistant nitrile rubber with a dissipative grey top layer (1 x 10⁶ to < 1 x 10⁹ ohms) and a conductive black bottom layer.

Key benefits

• Controlled discharge: the top layer with Rtt and Rtg of 1 x 10⁶ to < 1 x 10⁹ ohms meets the minimum worksurface recommendation of IEC 61340-5-1.
• Conductive black bottom layer with < 1 x 10⁶ ohms lowers the resistance to ground and allows use with ESD workstation monitors.
• Solder-safe: the material does not melt or burn on contact with hot solder or soldering irons and resists flux, acids, mineral oil, aldehydes and amines.
• Oil-resistant nitrile compound limits oil absorption, so electrical and physical properties hold up over the service life.
• UV stabilisers keep the colour stable and prevent the top layer from cracking when the material is flexed.

Applications

For assembly, test, repair and soldering stations in electronics production, laboratories and service. The mat must be grounded to remove charges. If it lies on a surface that is already properly grounded, separate grounding hardware may not be needed. Do not daisy-chain mats, ground each one individually.

Standards

Meets the worksurface requirements of ANSI/ESD S20.20 and the minimum recommendation of IEC 61340-5-1. Resistance is measured per ANSI/ESD STM4.1 and ESD TR53. Lead-free and RoHS compliant. Desco guarantees the dissipative and conductive properties for the life of the mat.
