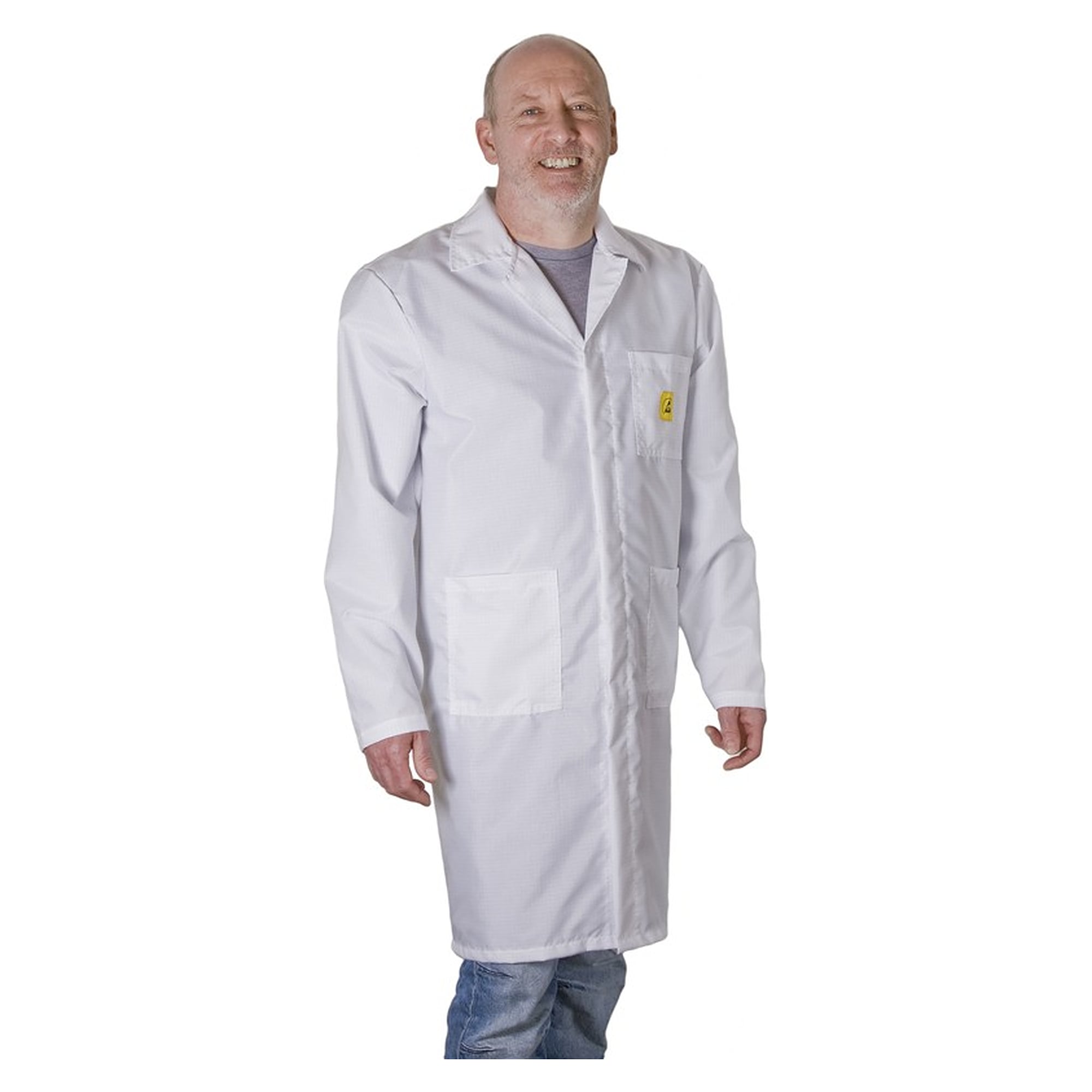

ESD Lab Coat, Static Dissipative, White, Unisex, Size XS - Desco 72150

Everyday clothing creates electric fields that can induce charges in sensitive components and trigger CDM-type discharges. The Desco static dissipative lab coat covers the clothing and keeps these fields away from the workstation. The fabric achieves Rp-p of 1 x 10⁵ to < 1 x 10⁹ ohms. This is unisex size XS with 48 cm shoulder width.

Key benefits

• Dissipative fabric with Rp-p of 1 x 10⁵ to < 1 x 10⁹ ohms, well below the < 1 x 10¹¹ ohms limit of IEC 61340-5-1.
• A grid of 4 % conductive fibres shields charges from everyday clothing on the Faraday cage principle.
• Concealed button placket: the buttons sit under a fabric overlap and cannot touch components.
• Electrical properties are maintained after more than 50 industrial launderings, machine washable at 40 °C.
• Lightweight, breathable and crease-resistant blend for full shifts, with two side pockets and one breast pocket.

Applications

For electronics production, laboratories, test areas and service wherever staff in everyday clothing handle ESD sensitive components. The coat covers the clothing and keeps its electric fields from inducing charges in components. Wash at max. 40 °C with a neutral detergent, do not use fabric softener or bleach, do not dry clean. Tumble dry at low temperature, iron at up to 110 °C if needed.

Standards

Meets the garment limit of IEC 61340-5-1 (EN 61340-5-1), Rp-p tested per ANSI/ESD STM2.1 at a test voltage of 100 V. ESD protective symbol on the breast pocket.
