USB fluorescence microscope 1.3 MP 20-220x - Dino-Lite AM4115T-GFBW
The Dino-Lite AM4115T-GFBW excites the sample selectively and separates the fluorescence signal from the excitation light with a barrier filter. Measurement function with calibration via the supplied calibration target. Two year manufacturer warranty, shipped from Germany.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Dino-Lite AM4115T-GFBW excites the sample selectively and separates the fluorescence signal from the excitation light with a barrier filter.
What it does for you
- A 1.3 MP sensor and a 20-220x magnification range, so overview and detail come from the same device.
- Measurement function with calibration via the supplied calibration target.
- The MicroTouch trigger on the housing captures the image without shaking the camera.
Magnification, working distance and field of view
| Magnification | Working distance (mm) | Field of view X (mm) | Field of view Y (mm) | Depth of field (mm) |
|---|---|---|---|---|
| 20 | 60.2 | 19.5 | 15.6 | 2.5 |
| 30 | 33.5 | 13.0 | 10.4 | 1.8 |
| 40 | 20.9 | 9.8 | 7.8 | 1.5 |
| 50 | 13.9 | 7.8 | 6.3 | - |
| 60 | 9.7 | 6.5 | 5.2 | - |
| 70 | 7.1 | 5.6 | 4.5 | 1.0 |
| 80 | 5.5 | 4.9 | 3.9 | - |
| 90 | 4.5 | 4.3 | 3.5 | - |
| 100 | 4.1 | 3.9 | 3.1 | - |
| 110 | 4.0 | 3.6 | 2.8 | - |
| 120 | 4.1 | 3.3 | 2.6 | - |
| 130 | 4.5 | 3.0 | 2.4 | - |
| 140 | 5.0 | 2.8 | 2.2 | - |
| 150 | 5.6 | 2.6 | 2.1 | - |
| 160 | 6.3 | 2.4 | 2.0 | - |
| 170 | 7.1 | 2.3 | 1.8 | - |
| 180 | 8.0 | 2.2 | 1.7 | - |
| 190 | 8.9 | 2.1 | 1.6 | - |
| 200 | 9.9 | 2.0 | 1.6 | - |
| 210 | 10.9 | 1.9 | 1.5 | - |
| 220 | 11.9 | 1.8 | 1.4 | 0.1 |
Values without front cap, as published by the manufacturer.
Typical uses
- Laboratory and life science: labelled specimens, cell cultures, fluorescence signals.
- Forensics and test labs: security features, residues, comparison images.
- Quality control and incoming inspection: surface defects, burrs, coatings, dimensional checks.
Technical data
| Property | Value |
|---|---|
| Magnification | 20x ~ 220x |
| Working distance | Standard |
| Macro zoom | No |
| Lens type | Glass with anti-reflection coating |
| Sensor type | CMOS |
| Resolution | 1.3 Megapixel (1280x1024) |
| Frame rate | 30 fps |

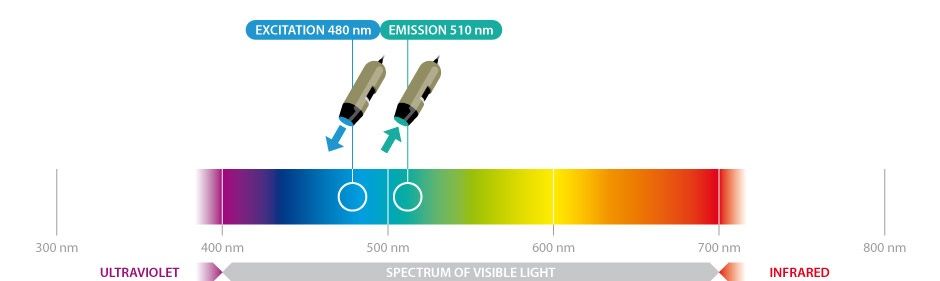

| Illumination | 480nm excitation + white |
| Number of LEDs | 7 FL + 1 White |
| LEDs switchable | Yes |
| Polarizer | No |
| Infrared filter | No |
| Emission filter | 510nm, LP |
| Diffuser cap | No |
| Measurement | Yes |
| Calibration | Yes |
| MicroTouch sensor | Yes |
| Magnification lock | Yes |
| Interface | USB 2.0 |
| Imaging standards | DirectShow, UVC |
| Operating system | Windows 7, 8, 10 & 11, MacOS 10.9 and up |
| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Housing | Composite/ plastic housing |
| Dimensions | 10.5cm (L) x 3.2cm (D) |
| Weight | 100g |
| Cable length | 1.8m |
| ESD safe | No |
| Country of origin | Taiwan |
| Warranty | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Package contents | Microscope, carry pouch, calibration target, user manual, N3C-C (Close Cap) N3C-EB (Extended Open Black Cap) N3C-LB (Black Long Cap) N3C-OB (Black Open Cap) |
| Manufacturer | Dino-Lite |
| Manufacturer Nr. | AM4115T-GFBW |
| EAN | 4712805478088 |
| HS-Code | 90118000 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment, info@esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Taiwan |
| Material | ABS plastic |
| ESD version | TEC |
| ESD equipment | USB Mikroskop |
| Certification | RoHS 2011/65/EU |
| Magnification max (x) | 220 |
| Long Working Distance | No |
Downloads
Datasheet
User Manual
Brochure
