Dino-Lite AM4115T-YFGW

Name: Dino-Lite AM4115T-YFGW
Brand: Dino-Lite
SKU: AM4115T-YFGW
Price: 759 EUR
Availability: InStock

Lead time

1 week

€759.00

Excl. 19% VAT , excl. Shipping Cost

Article

AM4115T-YFGW

Manufacturer Nr.

AM4115T-YFGW

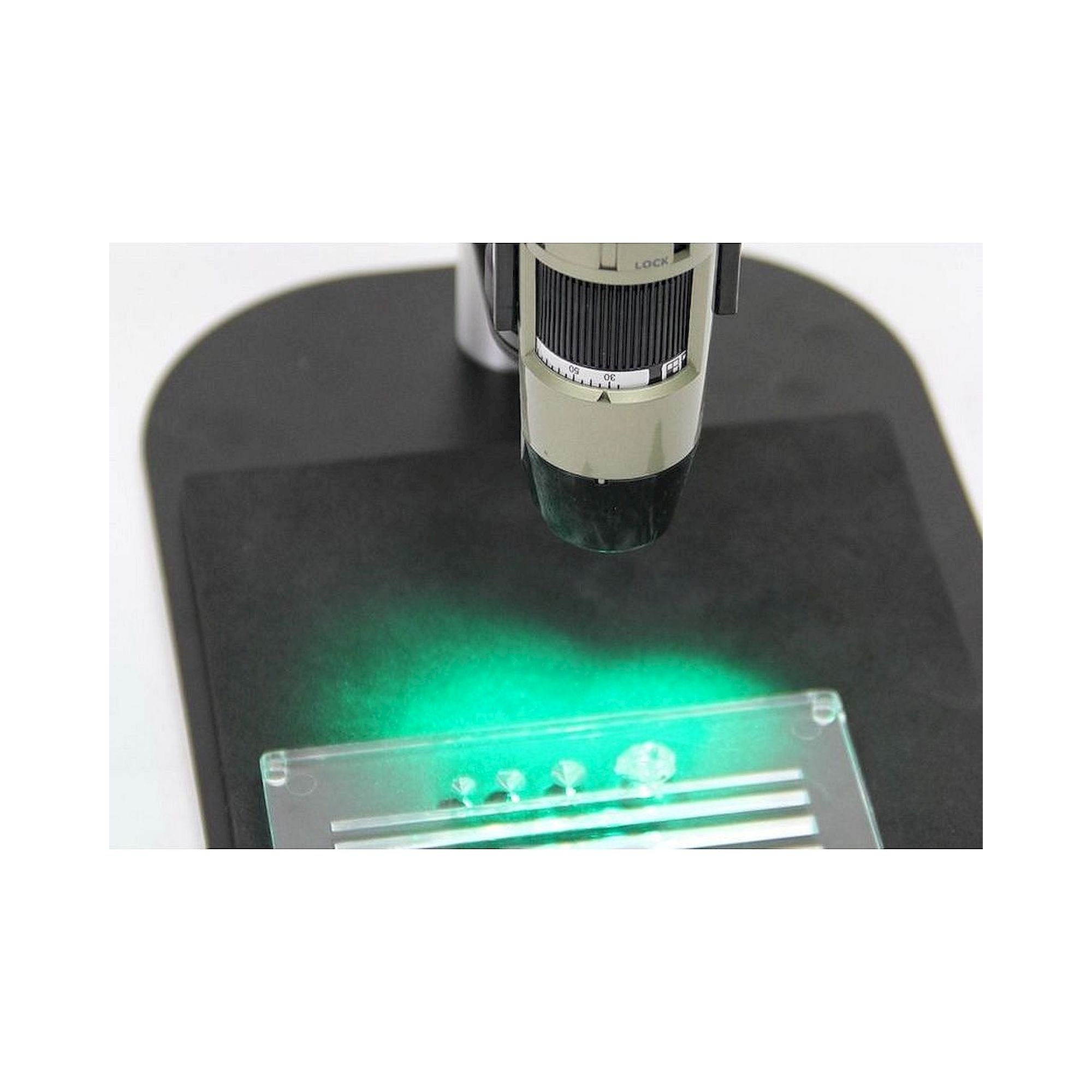

The Dino-Lite AM4115T-YFGW digital microscope is optimized for research and viewing fluorescent objects by using 525nm LEDs. It has a 570nm emission filter that is designed to observe but not limited to Cy3 and TRITC. Compared to the traditional fluorescence microscope's band-pass type of emission filters, the Dino-Lite's long-pass type emission filter provides visibility and sensitivity over a larger range of the fluorescence wavelength. The AM4115T-YFGW has the capability of switching the light source from the 525nm green excitation LED's to the white LED, which is convenient for locating the object and obtaining an easy focus. » Special models available on request.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Dino-Lite AM4115T-YFGW
€759.00
Excl. 19% VAT , excl. Shipping Cost
Dino-Lite AM4115T-FUW
€639.00
Excl. 19% VAT , excl. Shipping Cost
Dino-Lite RK-06-PL. Verlongerung for RK-06 Stativ
€26.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Additional Info

Dino-Lite range:	Dino-Lite Special lighting

Lighting

Light/ LED type:	525nm excitation + white
Number of LEDs:	7 FL + 1 White
LED on/off switchable:	Yes
Infrared filter:	No
Diffuser available:	No
Emission filter:	570nm, LP
Fluorophores:	Cy3, TRITC
Polarizer:	No

Optics

Magnification:	20-220x
Macro zoom:	No
Working distance:	Standard
Lens type:	Glass with anti-reflection coating

Sensor

Sensor type:	CMOS
Resolution:	1.3 Megapixel (1280x1024)
Maximum frame rate:	30 fps

Compatibility

Interface:	USB 2.0
Operating system:	Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and up
Included software:	DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows):	BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows):	WMV, FLV, SWF
Supported image formats (MacOS):	JPEG, PNG
Supported video formats (MacOS):	MOV
Imaging standards:	DirectShow, UVC

Housing

Housing material:	Composite/ plastic housing
Magnification lock:	Yes
Dimensions:	10.5cm (L) x 3.2cm (D)
Weight:	105g
Cable length:	1.8m

Features

Special feature:	No
Measurement:	Yes
Calibration:	Yes
Microtouch sensor:	Yes
ESD safe:	No

Information

Package contents:

Microscope, Carry pouch, Software CD, Calibration target, User manual

Warranty information:

2 years European warranty

Regulatory approval:

CE, FCC, ROHS

Price range:

€550,00 - €750,00

Working distance/ field of view/ depth of field:

Magnification Rate	Working Distance 1	Working Distance 2*	Field of View(x)	Field of View(y)	Depth of Field
Listed values may differ slightly		* Without front cap			Unit = mm
20	52.7	60.2	19.5	15.6	2.5
30	26.0	33.5	13.0	10.4	1.8
40	13.4	20.9	9.8	7.8	1.5
50	6.4	13.9	7.8	6.3	-
60	2.2	9.7	6.5	5.2	-
70	-	7.1	5.6	4.5	1.0
80	-	5.5	4.9	3.9	-
90	-	4.5	4.3	3.5	-
100	-	4.1	3.9	3.1	-
110	-	4.0	3.6	2.8	-
120	-	4.1	3.3	2.6	-
130	-	4.5	3.0	2.4	-
140	-	5.0	2.8	2.2	-
150	-	5.6	2.6	2.1	-
160	-	6.3	2.4	2.0	-
170	-	7.1	2.3	1.8	-
180	-	8.0	2.2	1.7	-
190	-	8.9	2.1	1.6	-
200	-	9.9	2.0	1.6	-
210	-	10.9	1.9	1.5	-
220	-	11.9	1.8	1.4	0.1

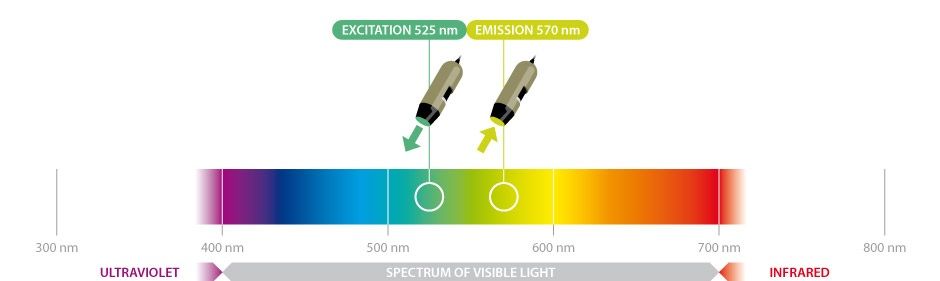

Special Light:

Information

More Information
Execution	TEC
Manufacturer Nr.	AM4115T-YFGW
Manufacturer	Dino-Lite
Country of Manufacture	Taiwan, Province of China
EAN	4712805475513
ESD equipment	USB Mikroskop
Lead time	1 week
Weight	1.000000
HS-Code	90119090
GPSR manufacturer information	A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Article authenticity	Original product
Condition of article	New
