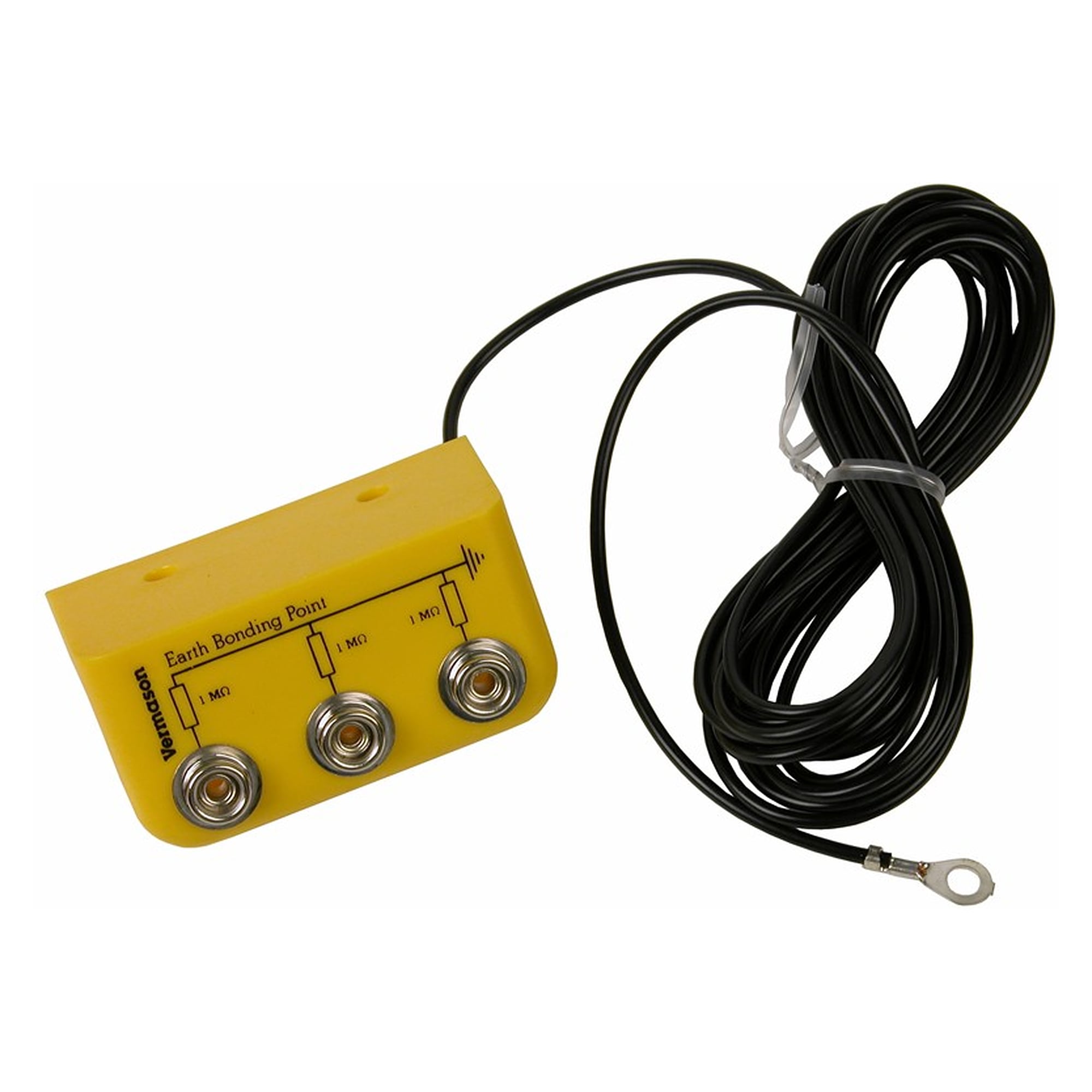

ESD grounding box with 3 x DK10 and 3 m earthing lead, 1 MΩ each

The A1-ESD grounding box EP0102001 connects three earthing points centrally to protective earth. Instead of a Schuko plug, the 3 m earthing lead ends in a screw eyelet for an M5 thread and is bolted firmly to an existing ground point.

Benefits

• Three 10 mm snap connections for mats, earthing cables and personnel grounding
• 1 MΩ protective resistor per connection to IEC 61340-5-1
• Mounted at a 90-degree angle for fitting at the bench edge
• 3 m earthing lead with a screw eyelet for an M5 thread for fixed grounding

Application

Central grounding of ESD workstations with a fixed connection to a verified ground point.

Standards and compliance

Supports the IEC 61340-5-1 requirements for grounding within the EPA.
