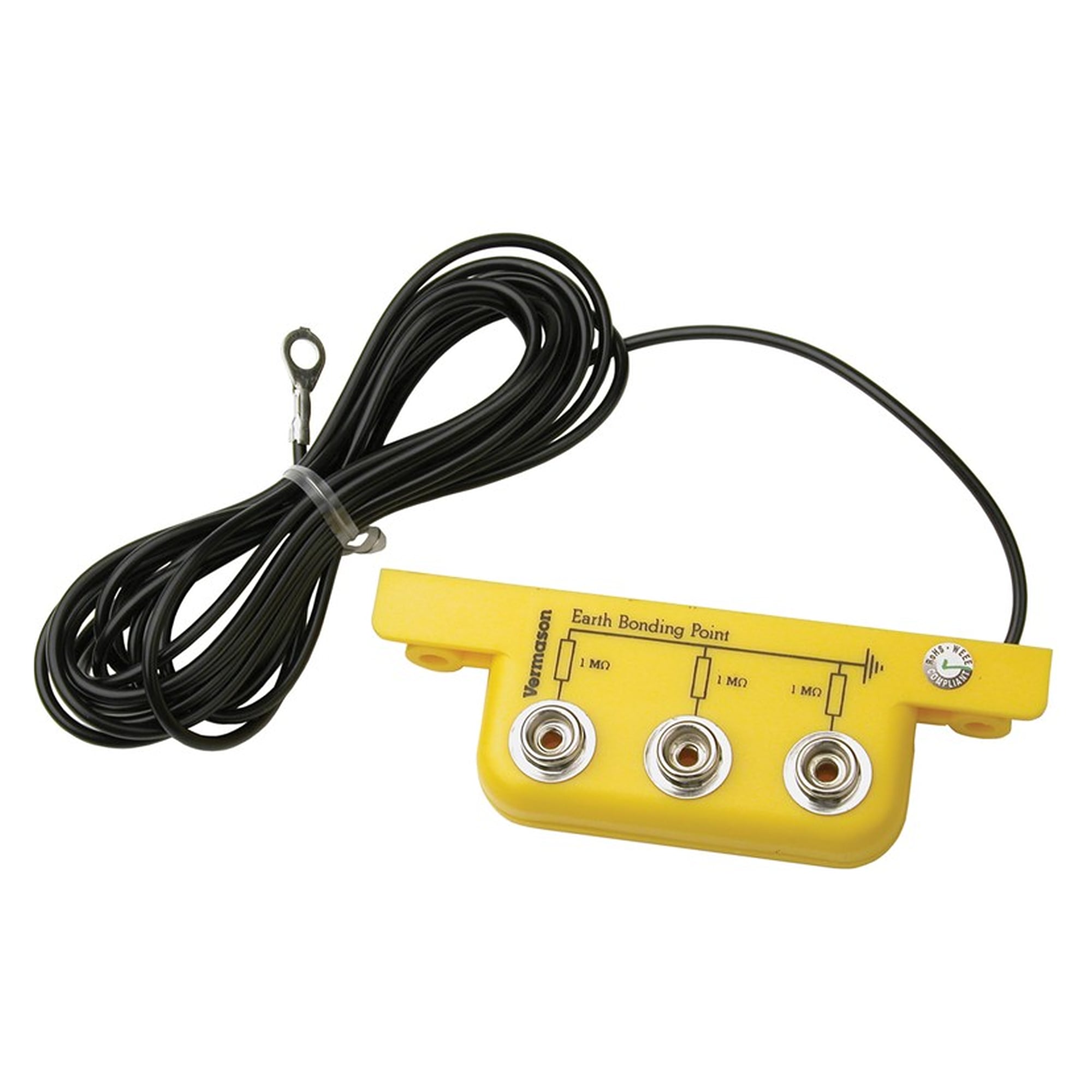

ESD earthing point with 3 x 4 mm banana sockets and 3 m lead, 1 MΩ each, yellow
Earthing point for mounting under the table top with three 4 mm banana sockets, each with a 1 MΩ safety resistor. The 3 m earthing lead is used for personnel grounding.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The earthing point WL24950 mounts under the table top and provides three 4 mm banana sockets for personnel grounding. Each connection has a 1 MΩ safety resistor; the 3 m earthing lead connects the workstation to protective earth.
Benefits
- Three 4 mm banana sockets for wrist straps and mats
- 1 MΩ safety resistor per connection to IEC 61340-5-1
- For space-saving mounting under the table top
- 3 m earthing lead for connection to protective earth
Application
Personnel grounding at ESD workstations where the ground point sits hidden under the table top.
Standards and compliance
Supports the IEC 61340-5-1 requirements for grounding within the EPA.
Technical data
| Model | 30-551-3040 |
|---|---|
| Connection | 3 x 4 mm banana socket |
| Resistance | 1 MΩ safety resistor per connection |
| Cable length | 3 m |
| Colour | yellow |
| Selling unit | 1 piece |
| Weight | 0.04 kg |
| Manufacturer | A1-ESD |
| HS-Code | 85444290 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Sales unit | 1 Stück |
| ESD version | ESD (antistatic) |
| Certification | IEC 61340-5-1 |
