ESD Bench Mat Premium 60 x 120 cm, synthetic rubber, blue, 2 x DK 10 - A1-ESD EP0504021

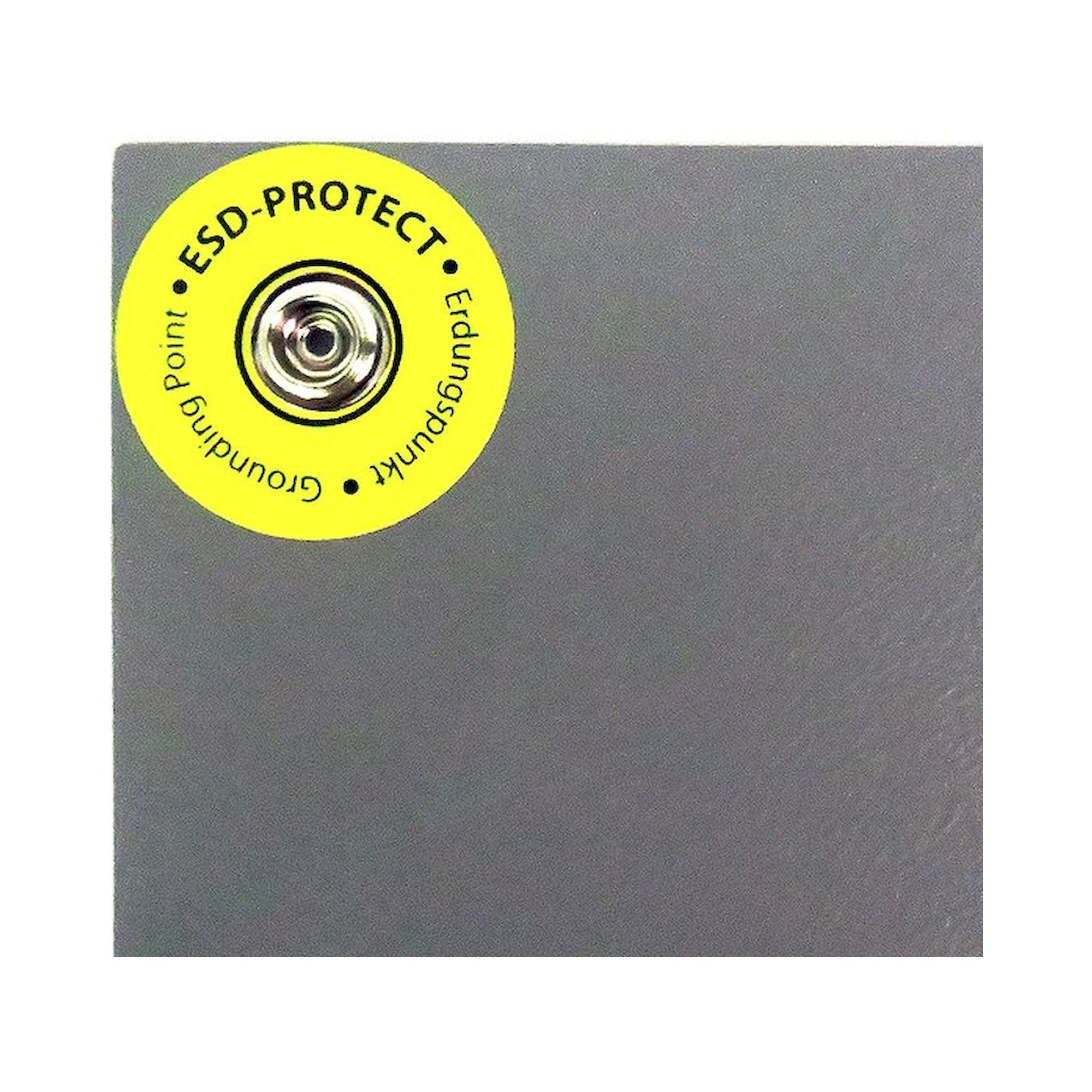

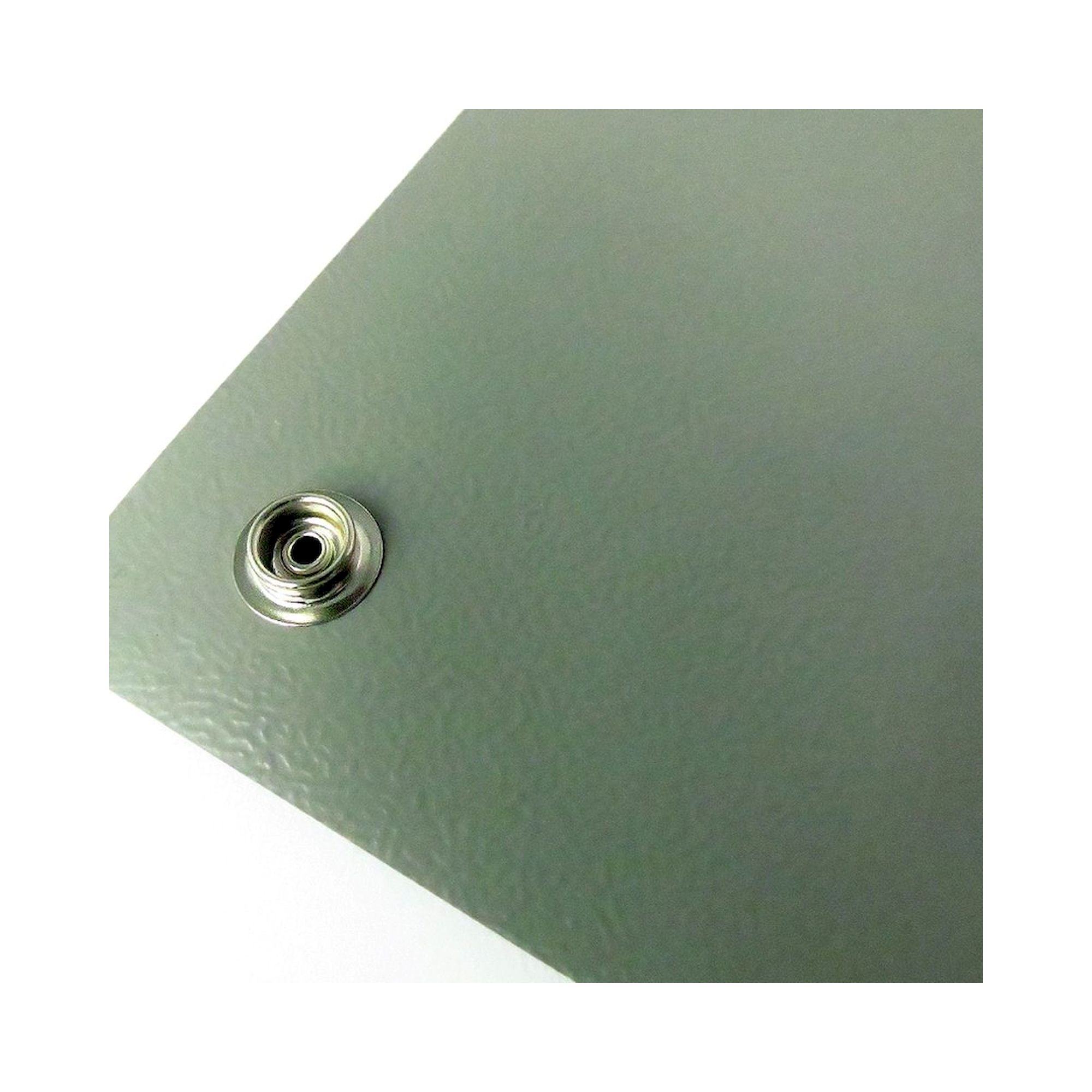

The A1-ESD ProMAT bench mat Premium forms the dissipative work surface at the ESD workstation and reliably protects electronic assemblies against electrostatic discharge. The 60 x 120 cm cut connects to the grounding system through its two DK 10 snap fasteners.

Benefits

• Two-layer build with a dissipative top surface and a conductive low-resistance backing for controlled charge removal
• Discharge resistance in the 10⁶ to 10⁹ ohm range as required for dissipative work surfaces
• Heat resistant against solder splashes and resistant to chemicals and oil
• Anti-reflective surface, permanently elastic and abrasion resistant

Technical data

• Dimensions: 60 x 120 cm
• Thickness: 2 mm
• Material: synthetic rubber
• Colour: blue
• Discharge resistance: 10⁶ to 10⁹ ohm
• Snap fasteners: 2 x DK 10
• Construction: two-layer (dissipative/conductive)

Applications

Suitable for soldering and assembly benches, test and repair stations and EPA areas in electronics manufacturing.

Standards and compliance

Supports building an EPA in line with IEC 61340-5-1.
