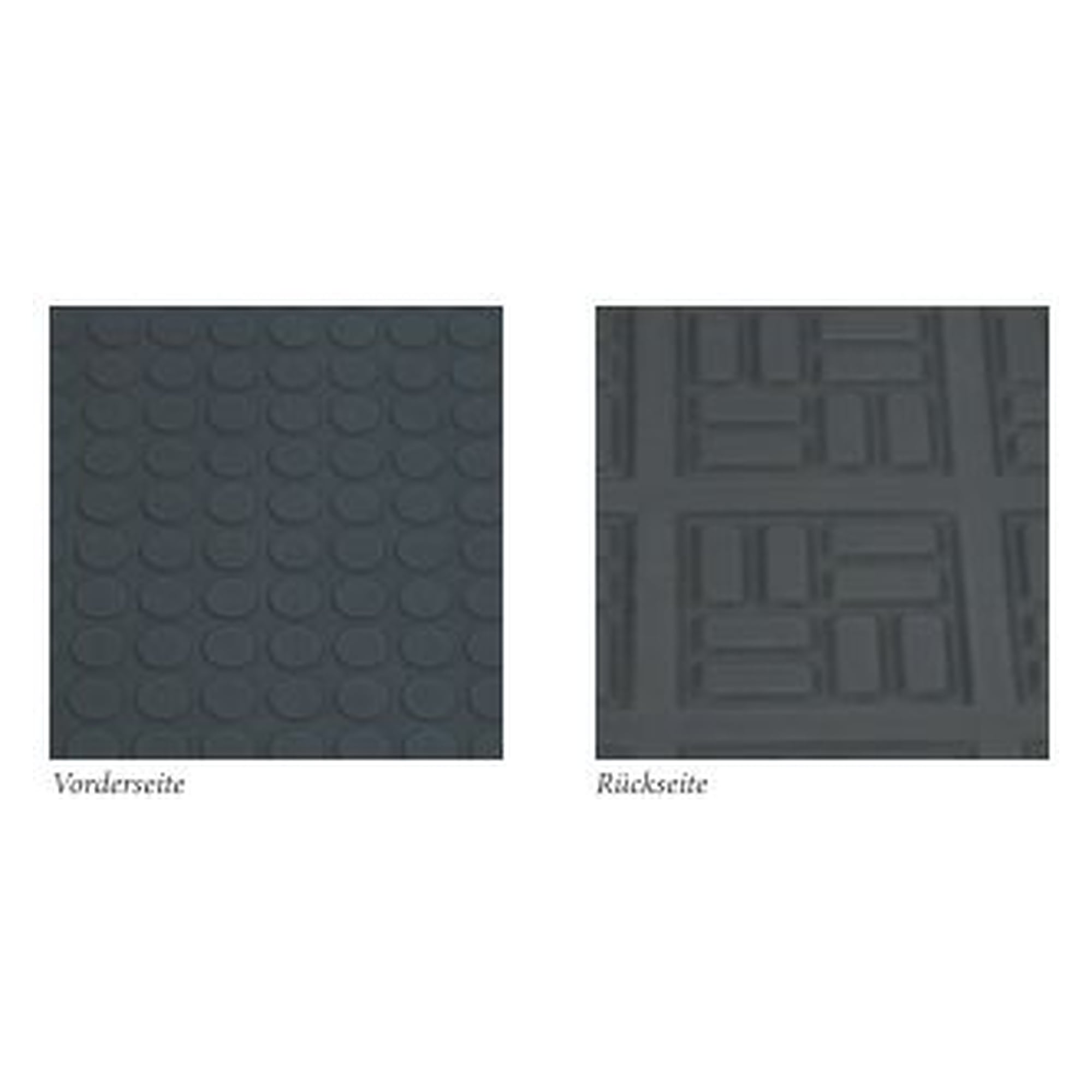

ESD floor mat in PUR foam, conductive, black, flat studs, 960 x 660 x 12 mm - Ergokomfort FN-ESD-B1
Conductive anti-fatigue mat in foamed polyurethane with a flat stud profile. For dry standing and walking workstations in ESD protected areas, easy to roll over.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Ergokomfort FN-ESD-B1 ESD floor mat safely dissipates static charges and relieves staff at predominantly dry standing and walking workstations. The flattened stud profile lowers turning resistance and keeps the mat easy to roll over.
Benefits
- Conductive dissipation of static charges via the snap-button earthing point
- Foamed polyurethane cushions and relieves legs, back and joints
- Flat studs for stable footing and easy trolley movement
Applications
For ESD protected areas (EPA) in production, assembly and inspection with mostly dry floors. Special widths and shapes are available.
Standards and compliance
Resistance to ground per DIN EN 61340-5-1. Fire protection per DIN 4102 class B1. Three-year manufacturer warranty.
Technical data
| Material | foamed polyurethane (PUR) |
|---|---|
| Surface | flat studs |
| Dimensions | 960 x 660 x 12 mm, bevelled edge included |
| Thickness | 12 mm |
| Resistance to ground | 105 to 107 Ohm |
| Fire behaviour | flame retardant per DIN 4102 class B1 |
| Colour | black |
| Weight | 2.78 kg |
| Manufacturer | Ergokomfort |
| Manufacturer Nr. | 20.008.1 |
| GPSR manufacturer information | Ergokomfort GmbH Südstraße 43 DE-21698 Harsefeld www.ergokomfort.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Sales unit | 1 Stück |
| Height | 12 |
| Width | 660 |
| Depth | 960 |
| ESD version | ESD (antistatic) |
| ESD equipment | ESD Bodenmatte |
| Certification | DIN 4102, IEC 61340-5-1 |
