ESD energy back panel for energy channel, module width 1330 mm, 1320x28x157 mm, for 5 modules - Lista 92.442

On stations in the 1330 mm grid where test equipment, power supply and lighting run side by side: this energy back panel with 1330 mm module width lines up all connections just above the work surface. It is designed for 5 modules. It hangs into the support columns or sits in the base frame on the workbench top.

Benefits

• Dissipative surface: All painted surfaces carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• Two mounting options: hang it into support columns or fit it into the energy channel base frame.
• Slim build: only 28 mm deep at 157 mm high, so the work surface stays usable.

Colours

Select the ESD colour when you order:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y

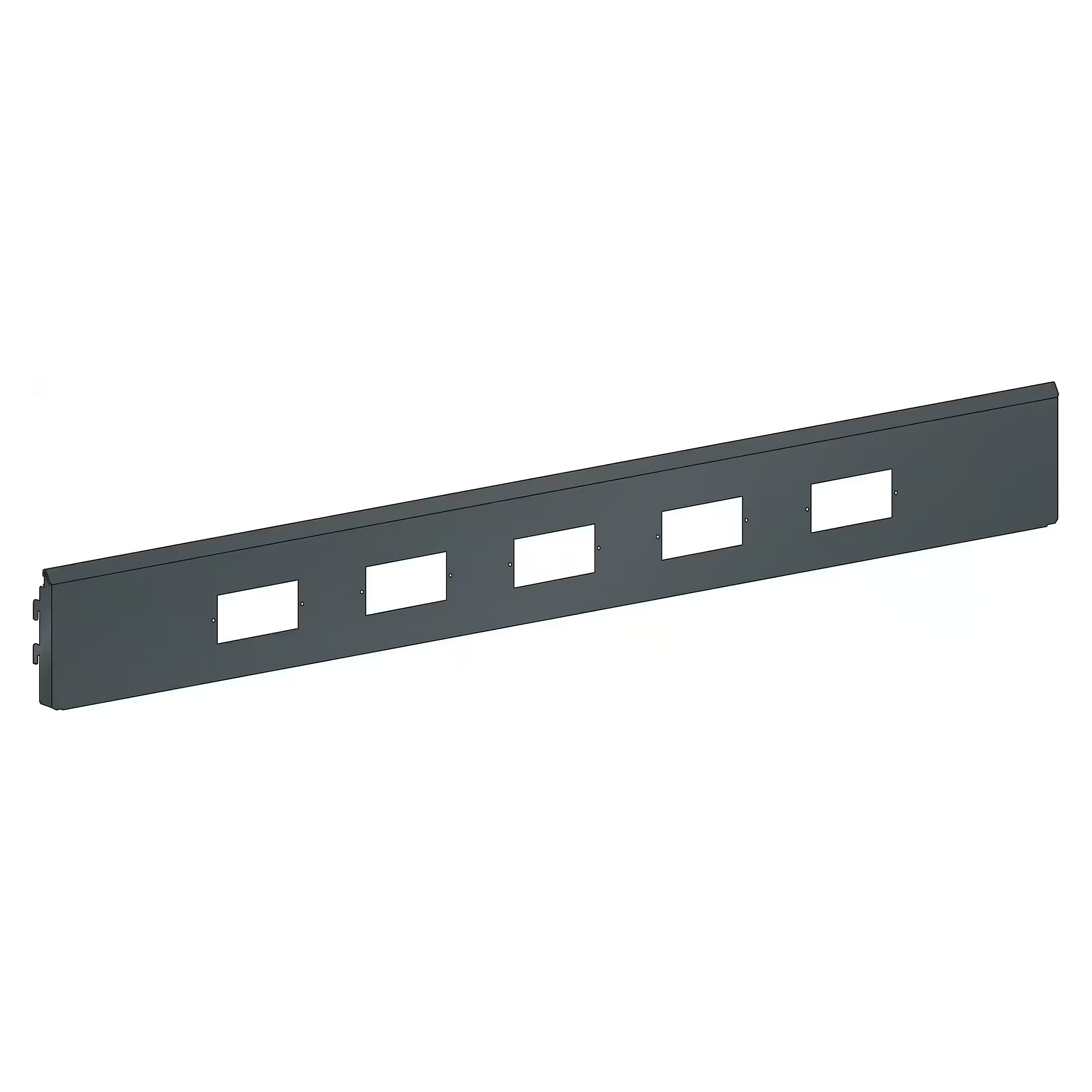

• Anthracite grey RAL 7016

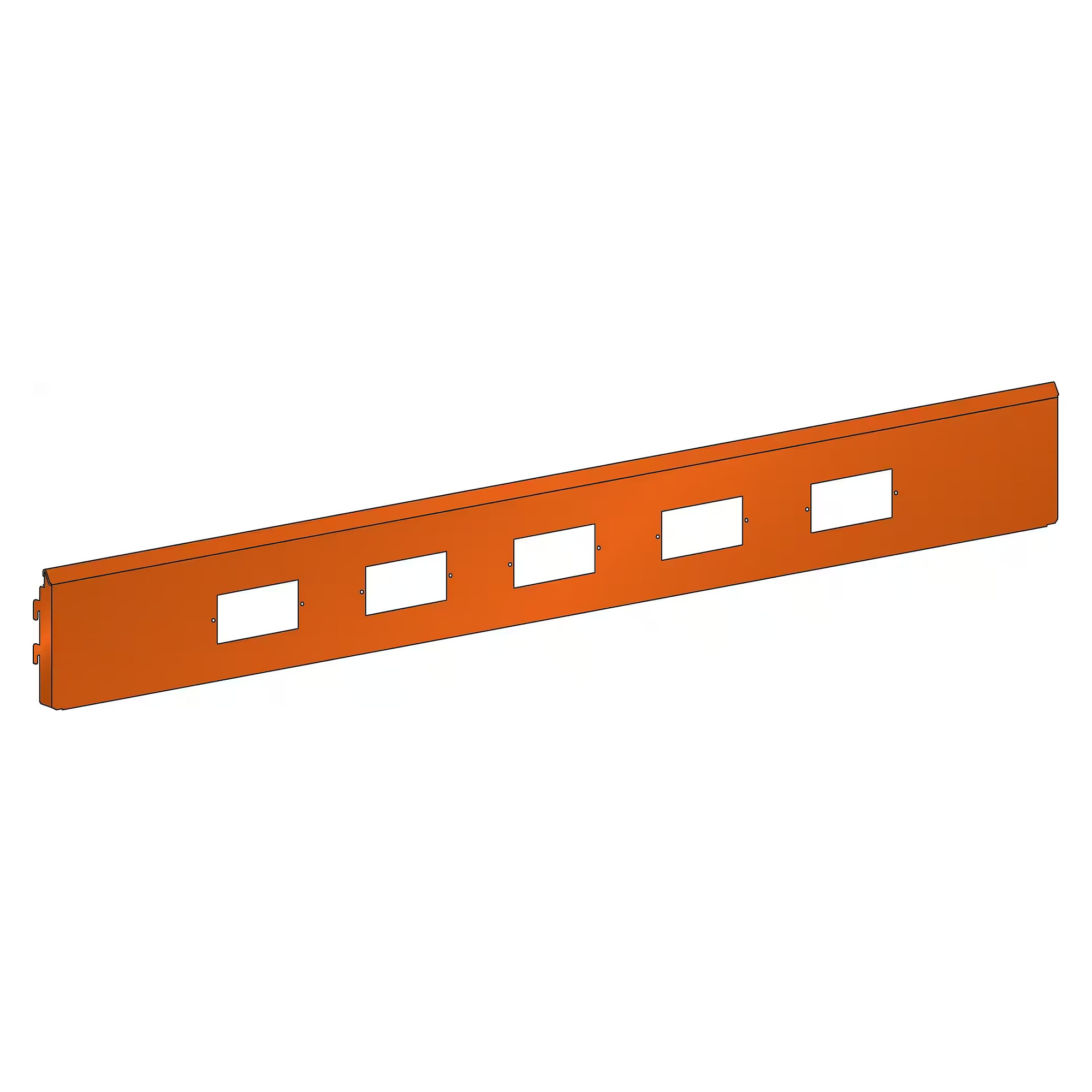

• Orange NCS S 1080-Y40R

Use and combination

Typical locations are ESD workstations in electronics production, test stations, repair and labs. Energy modules and elements are selected and fitted separately. Lista support columns or a base frame of 1330 mm module width serve as carrier. The dissipative effect depends on the workstation system being properly earthed.
