ESD support column 1050 mm for mounting on workbench tops, mounting position right, profile 30x60 mm - Lista 92.391

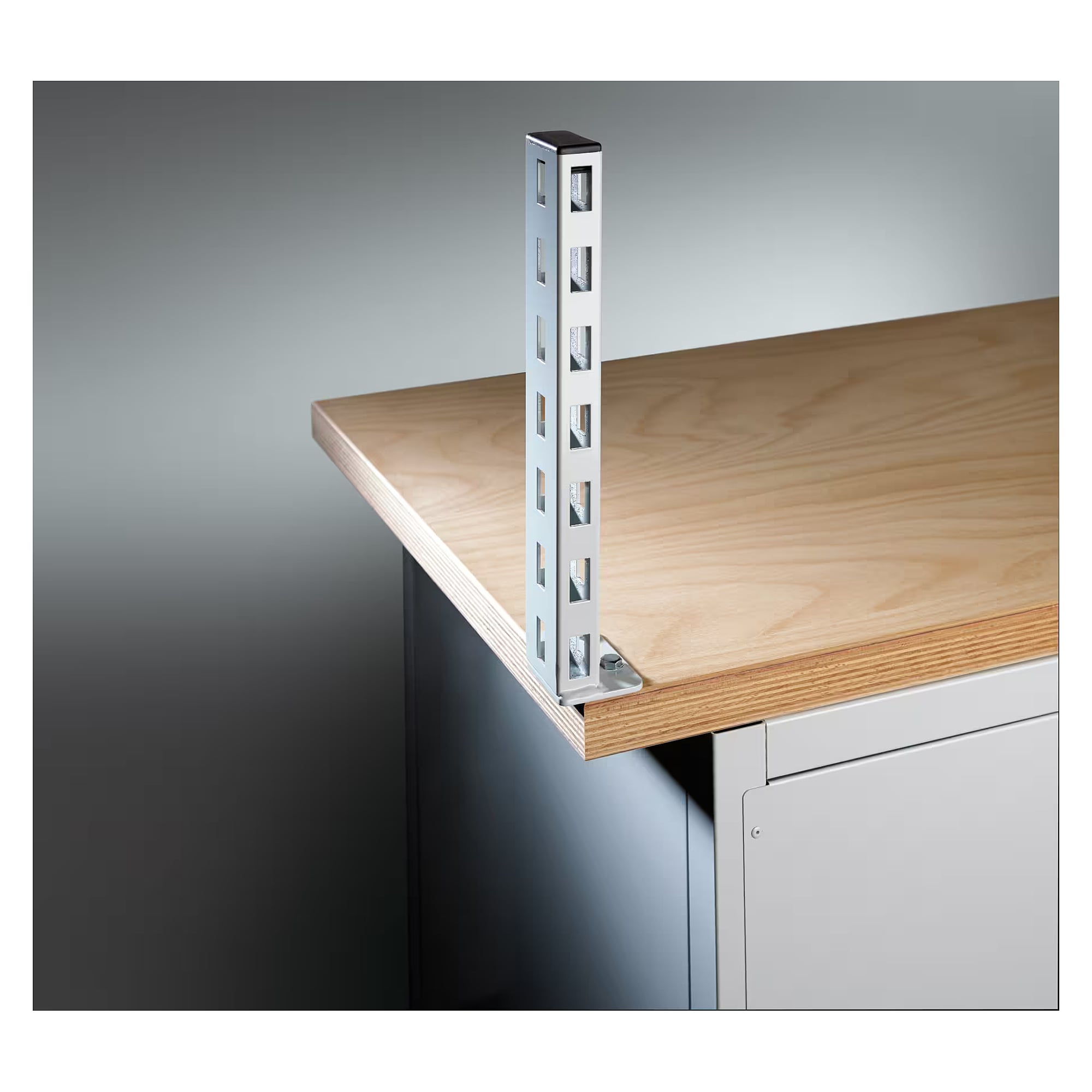

A superstructure above the bench needs a solid column at each end. This support column forms the right-hand end with 1050 mm usable height and is screwed onto the top with the supplied fixing material.

Benefits

• Dissipative: the dissipative paint coating developed by Lista drains charges, provided the superstructure is earthed.
• Perforated on four sides: add-on parts hook in largely without screws and can be moved in height.
• Directly on the top: mounted on the worktop surface with the supplied fixing material, usable height 1050 mm.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y

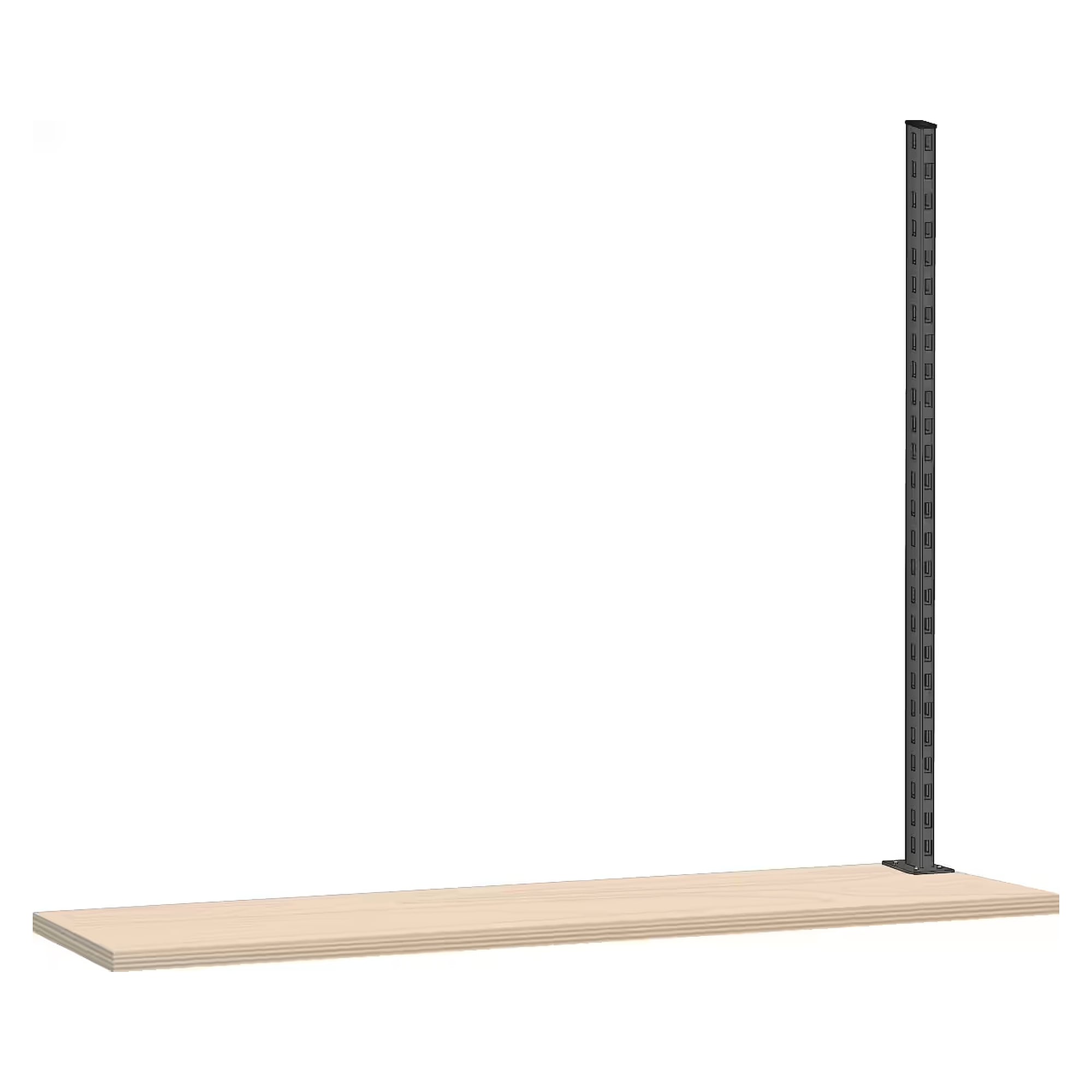

• Anthracite grey RAL 7016

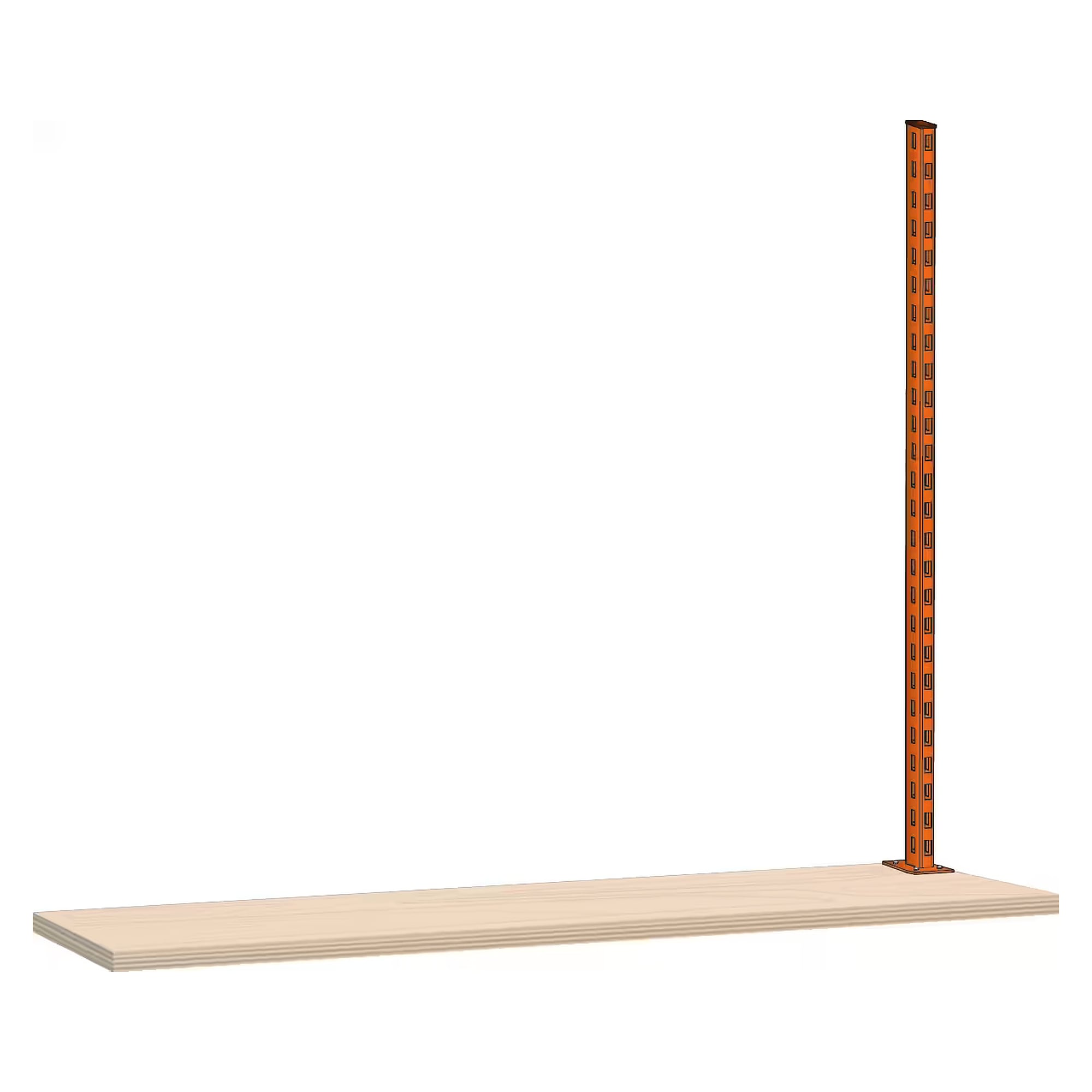

• Orange NCS S 1080-Y40R

Use and combination

The support column is the basis for superstructures on ESD workbenches in electronics manufacturing, at test and repair stations and in labs. Plain or perforated rear panels, shelves and bin holders hook into it, with the cable tray at the back. A superstructure combines one left and one right column, with centre columns added for several bays.

Notes

• According to Lista the column carries 100 kg, on Universal, Eterlux, synthetic resin and ABS tops 50 kg.
• Minimum top thickness 40 mm. Suitable only for workbench tops made of beech, multiplex, Universal, Eterlux, synthetic resin and ABS.
• The outer support columns protrude by 15 mm as standard. For a flush finish, tops with 30 mm extra length are available, for example 1530 or 2030 mm.
• When mounting on a 28 or 30 mm worktop of an electrically height-adjustable table (Lista Quattro, Duo, Solo), one of the three counter holders or counter plates is required.
