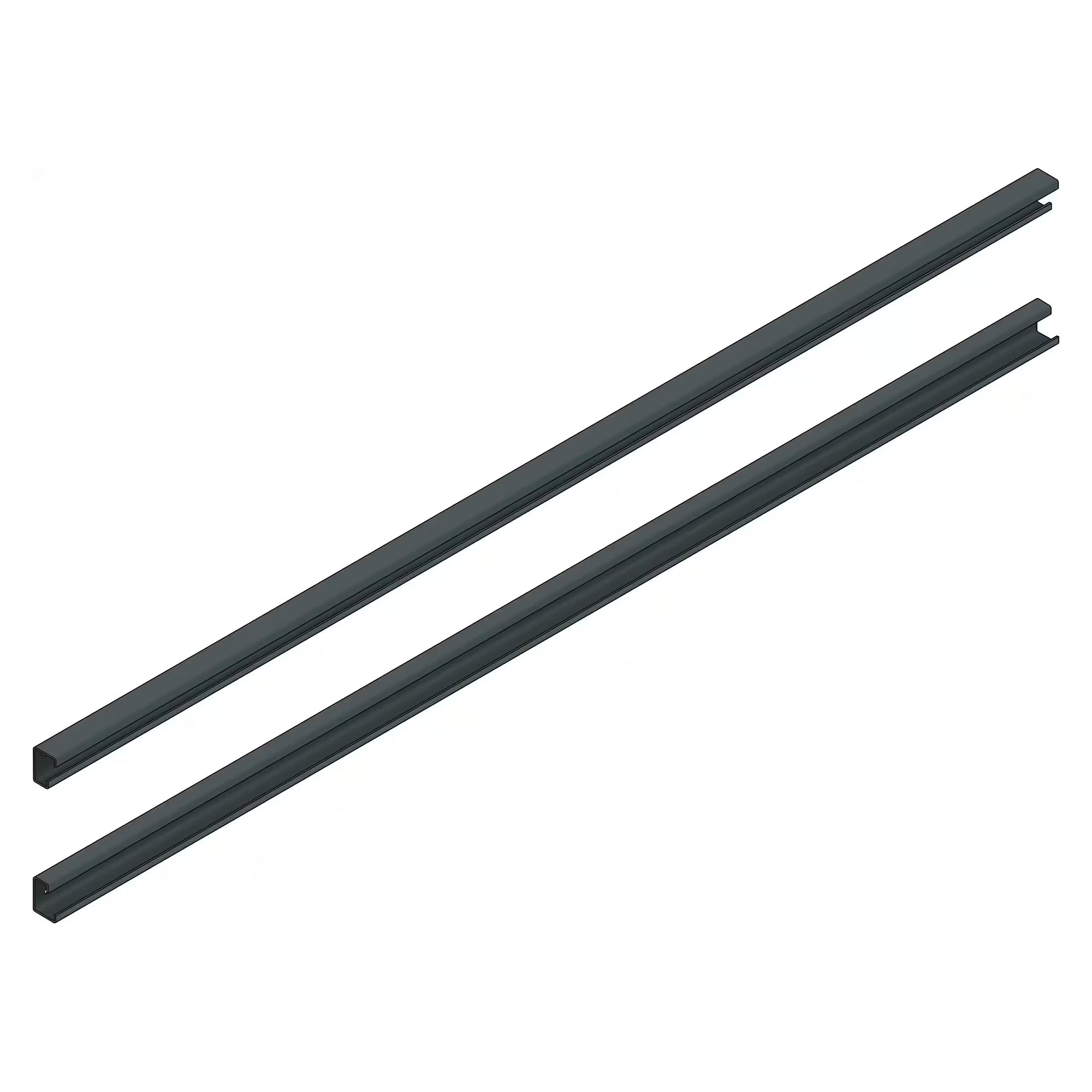

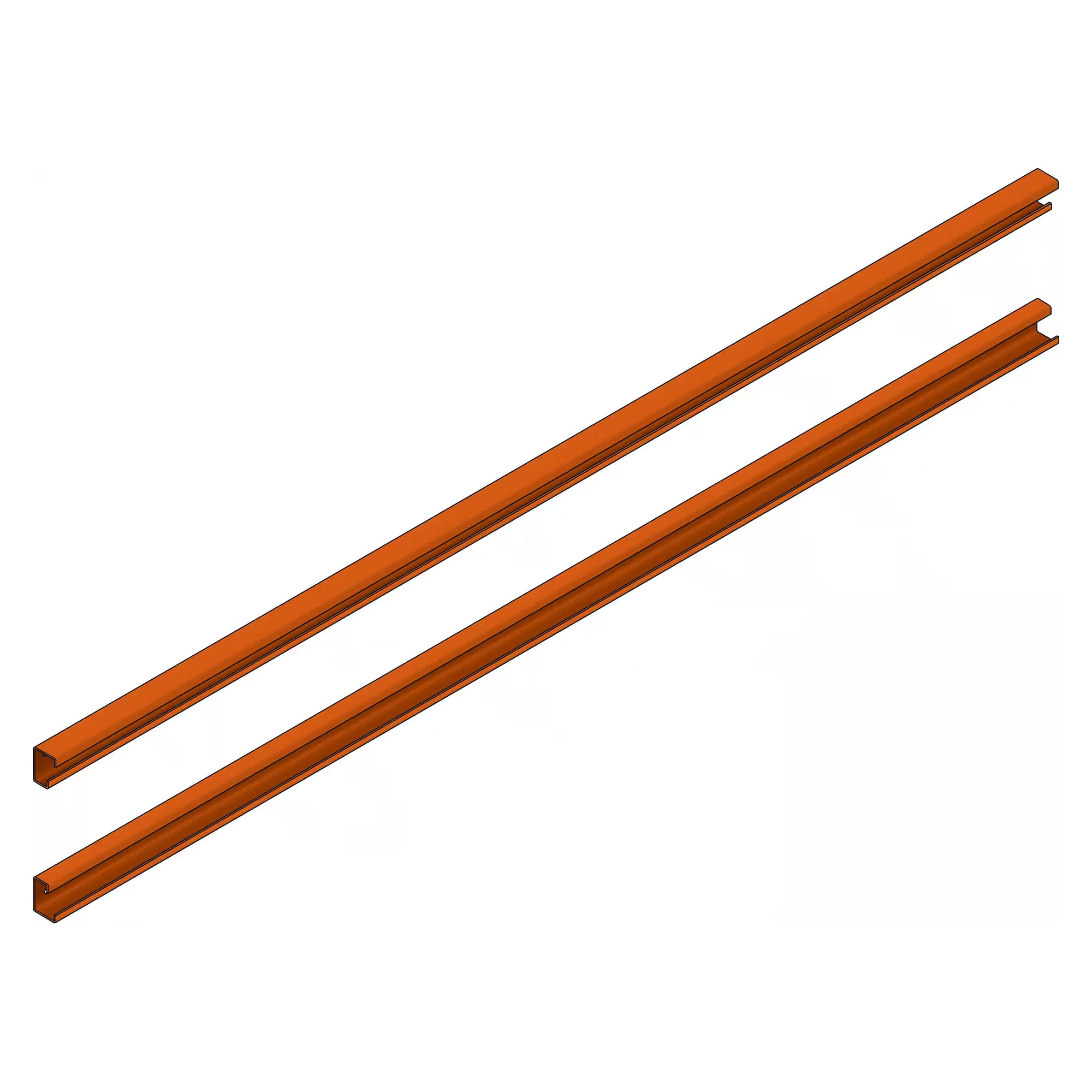

ESD guide rail pair 2000 mm width for mounting on workbench substructure and drawer cabinet - Lista 93.937

Long workbenches 2000 mm wide need a continuous base for legs and cabinets under the top. The 12 kg rail pair joins these elements into one substructure.

Benefits

• Dissipative surface: The Lista dissipative paint coating discharges charges in a controlled way into the earthed substructure.
• One rail system for several substructures: Designed for workstation legs Quattro, Duo, Solo, workbench leg and drawer cabinet.
• 2000 mm width: Sheet steel rail pair, 12 kg net weight, fixing material included.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

The rail pair is mounted on the substructure of Lista workbenches and workstations 2000 mm wide, for example at assembly and test stations in electronics manufacturing. It connects workstation leg, workbench leg and drawer cabinet into one unit. Discharge takes place via the earthed workstation.

Notes

For drawer cabinets with a depth of 27 E a TWIN-Link adapter is required. One guide rail adapter is needed per workstation leg Quattro, Duo or Solo. The holes on the rear of the cabinet housing are essential for fixing the guide rail pair or the TWIN-Link adapters.
