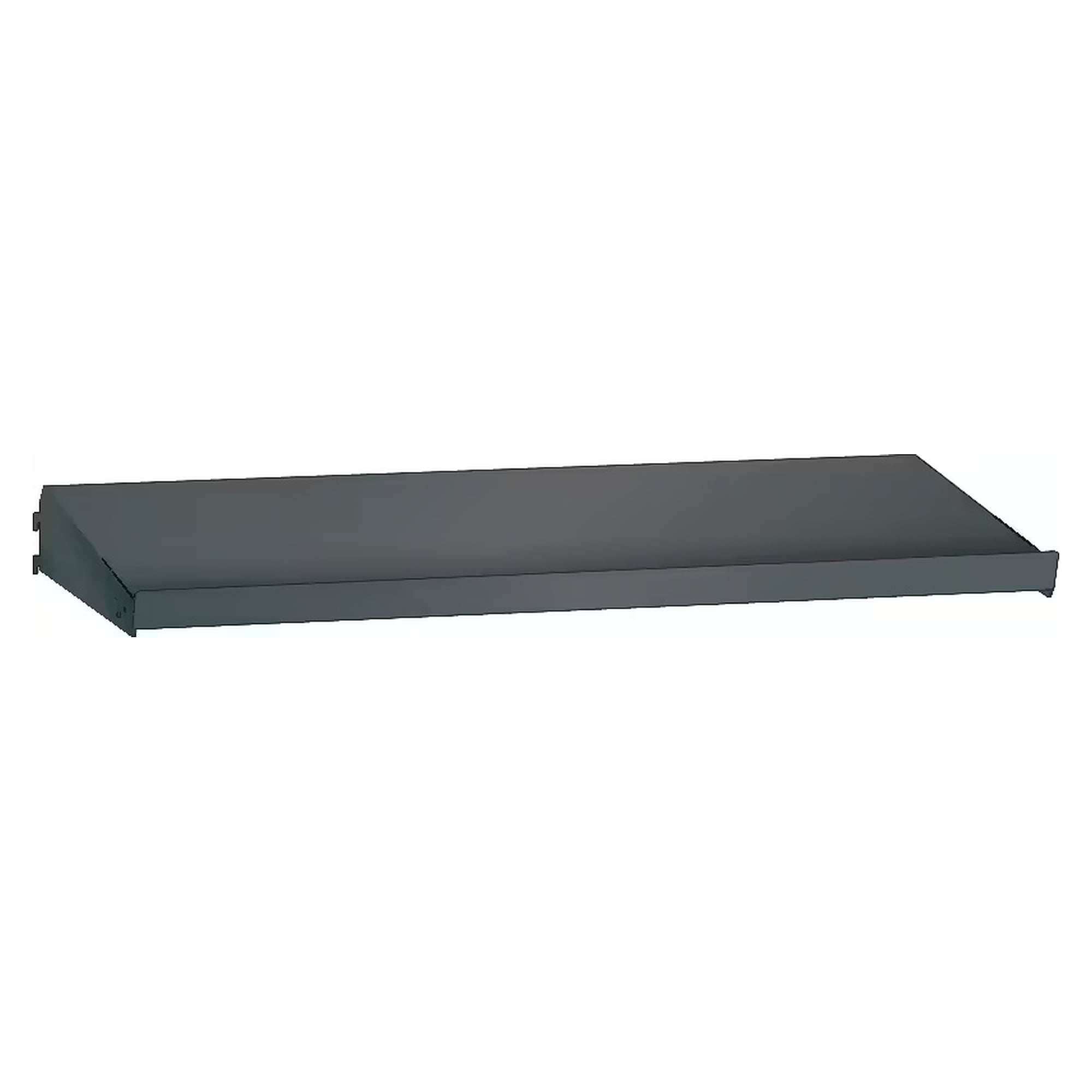

ESD adjustable shelf smooth 1330x200 mm, usable width 1329 mm, level or tilted 15°, 50 kg - Lista 93.763

At 200 mm deep, this shelf adds storage in the 1330 mm module. It hangs on two brackets in the support columns without screws, either level or tilted by 15 degrees. At a net weight of 4 kg the shelf is easy to reposition.

Benefits

• Dissipative surface: The painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.

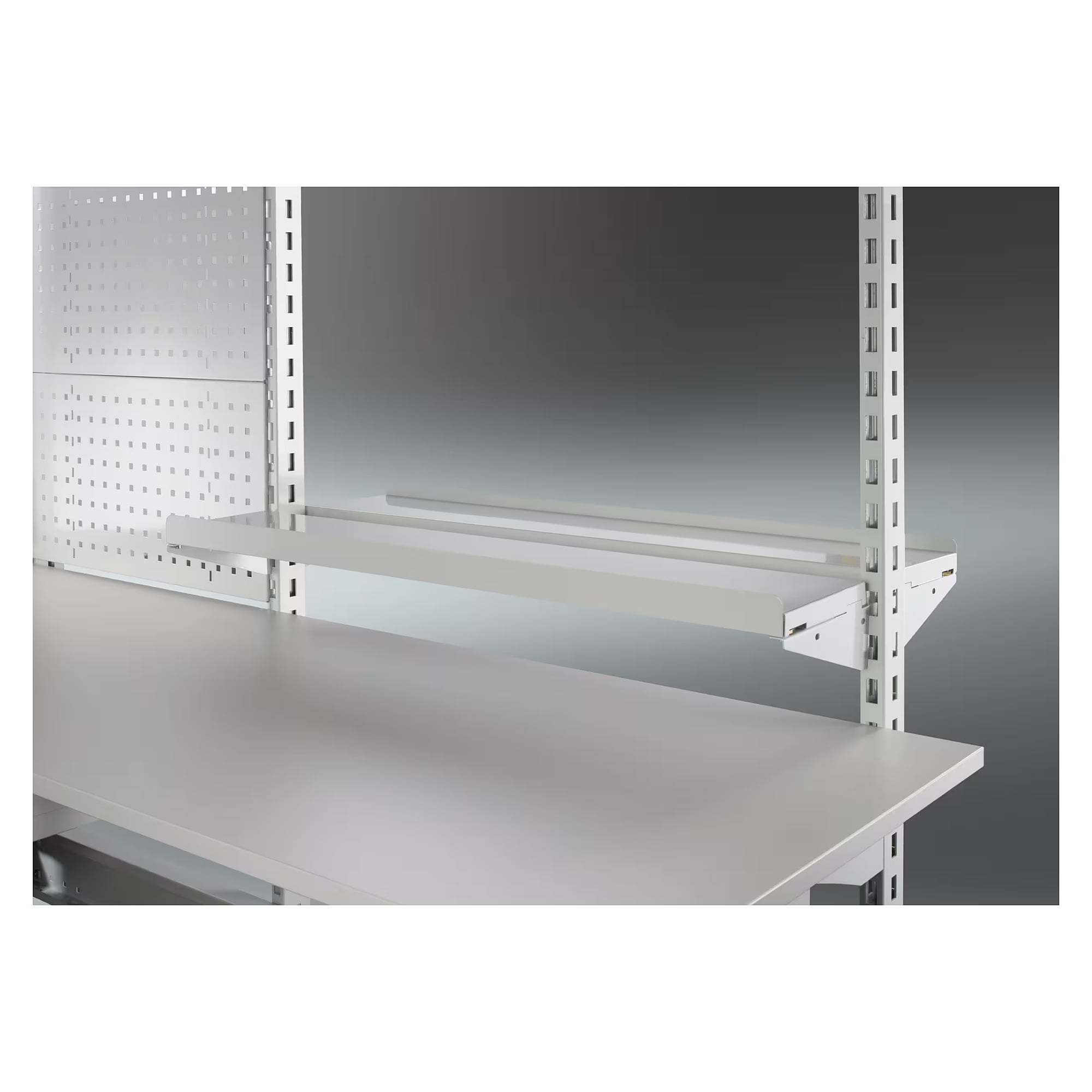

• Two angles: With the two brackets supplied, the shelf hangs in the support columns level or tilted by 15 degrees, without screws.
• Stop edge: The 17 mm edge on one long side is mounted at the front and keeps parts on the shelf.
• 50 kg load capacity: sheet steel shelf with 25 mm shelf height and a surface of 1330 x 200 mm.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

The shelf complements ESD workstation superstructures, frames and assembly trolleys with a 1330 mm module width in electronics production, test stations, labs and repair. It combines with bin rails and back panels of the same width. The dissipative effect depends on the complete set-up being properly earthed.
