ESD cabinet housing 36x27E, 717x572x850 mm, inner height 750 mm, KEY Lock without cylinder - Lista 93.160

At 850 mm high, this housing stands roughly level with a work surface and, with a cover plate, can serve as an extra surface next to the workstation. You distribute the inner height of 750 mm freely across drawers in the 36 x 27 E grid, while the wide housing measures 717 x 572 mm outside. Drawers are not included and are ordered separately.

Benefits

• Dissipative surface: All painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.

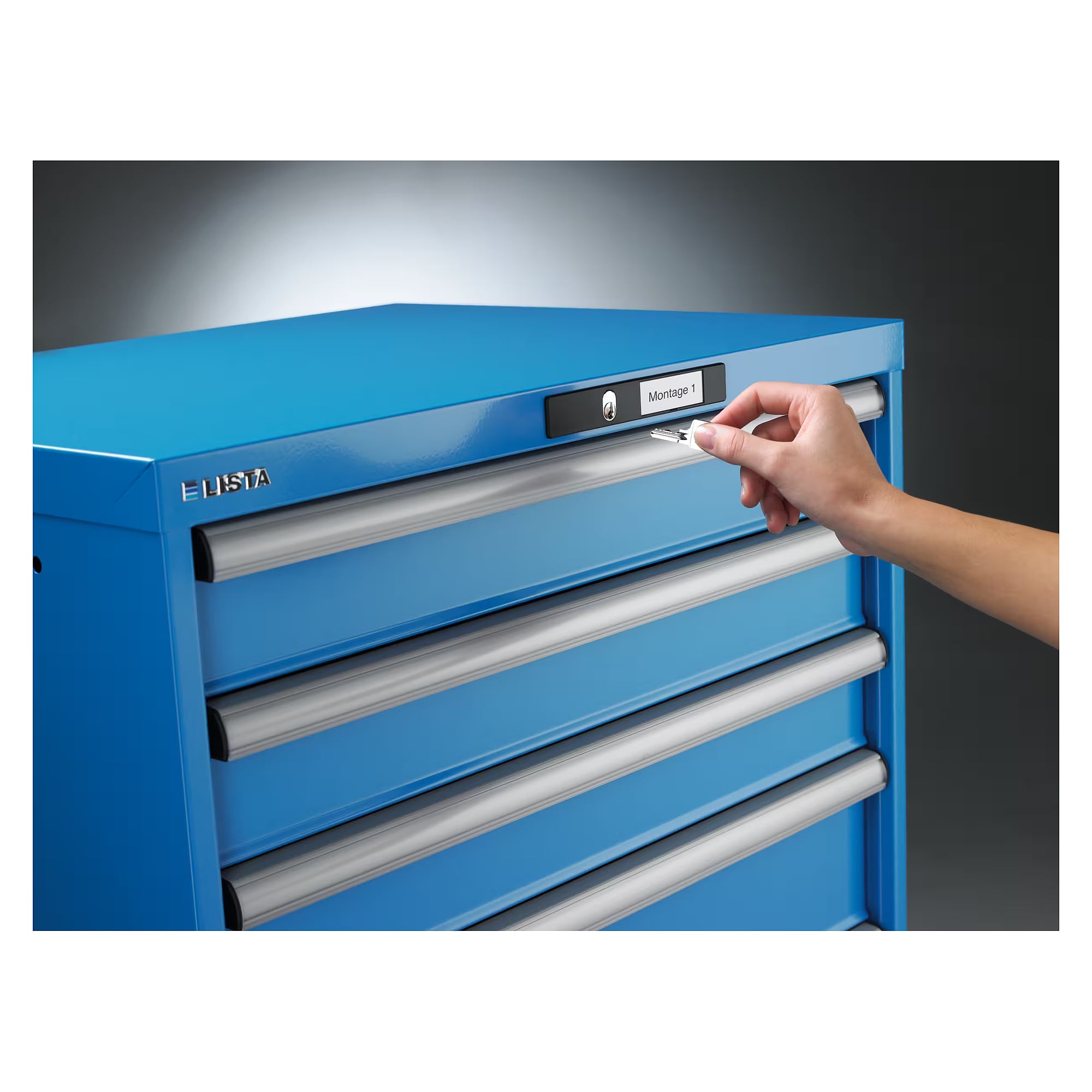

• KEY Lock: Lista standard lock with interchangeable cylinder, opened and locked manually with a key. The cylinder is not included and is ordered separately, so you are free to choose the locking system.
• Freely configurable: 750 mm inner height in the 36 x 27 E grid, you put together the drawers and their front heights as needed.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y

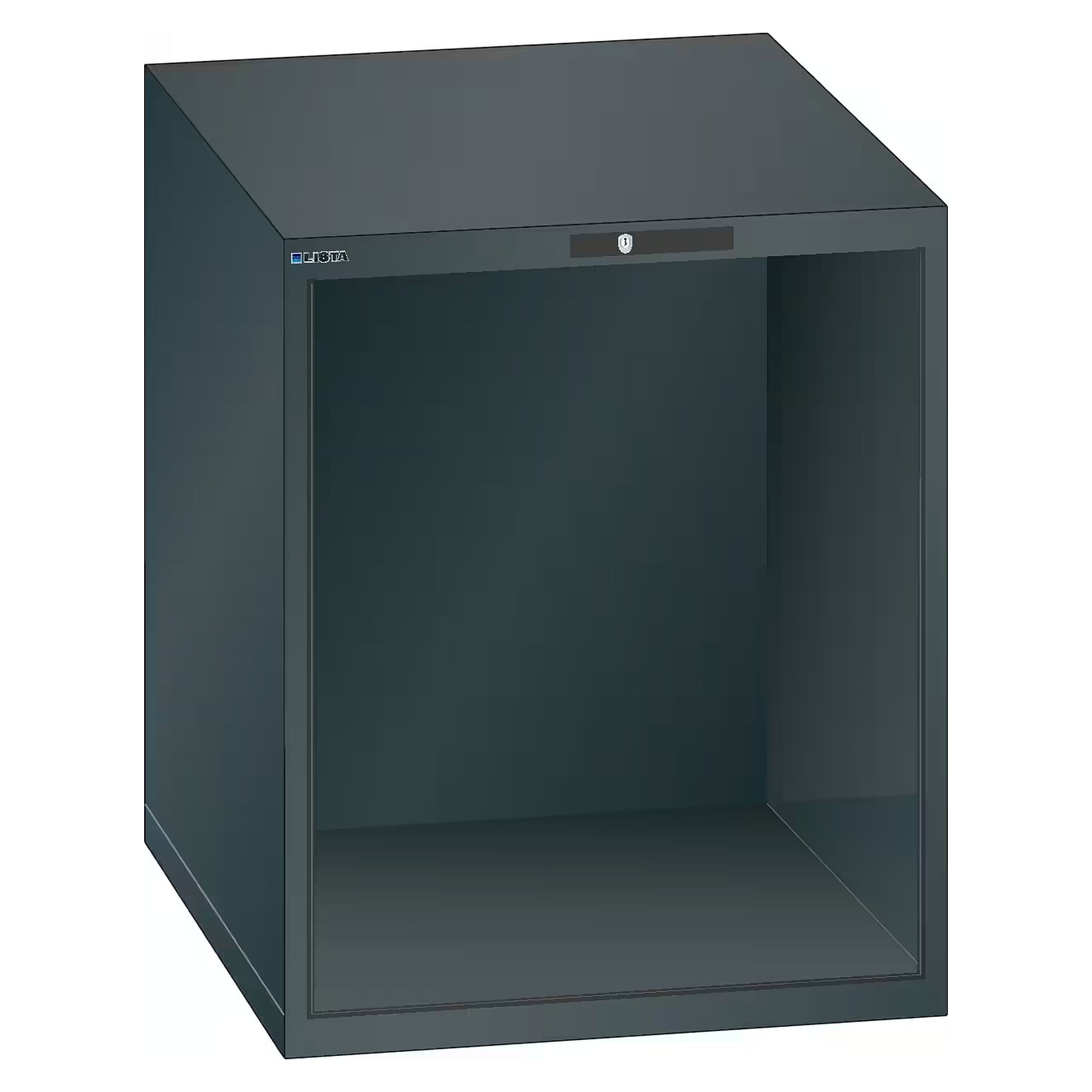

• Anthracite grey RAL 7016

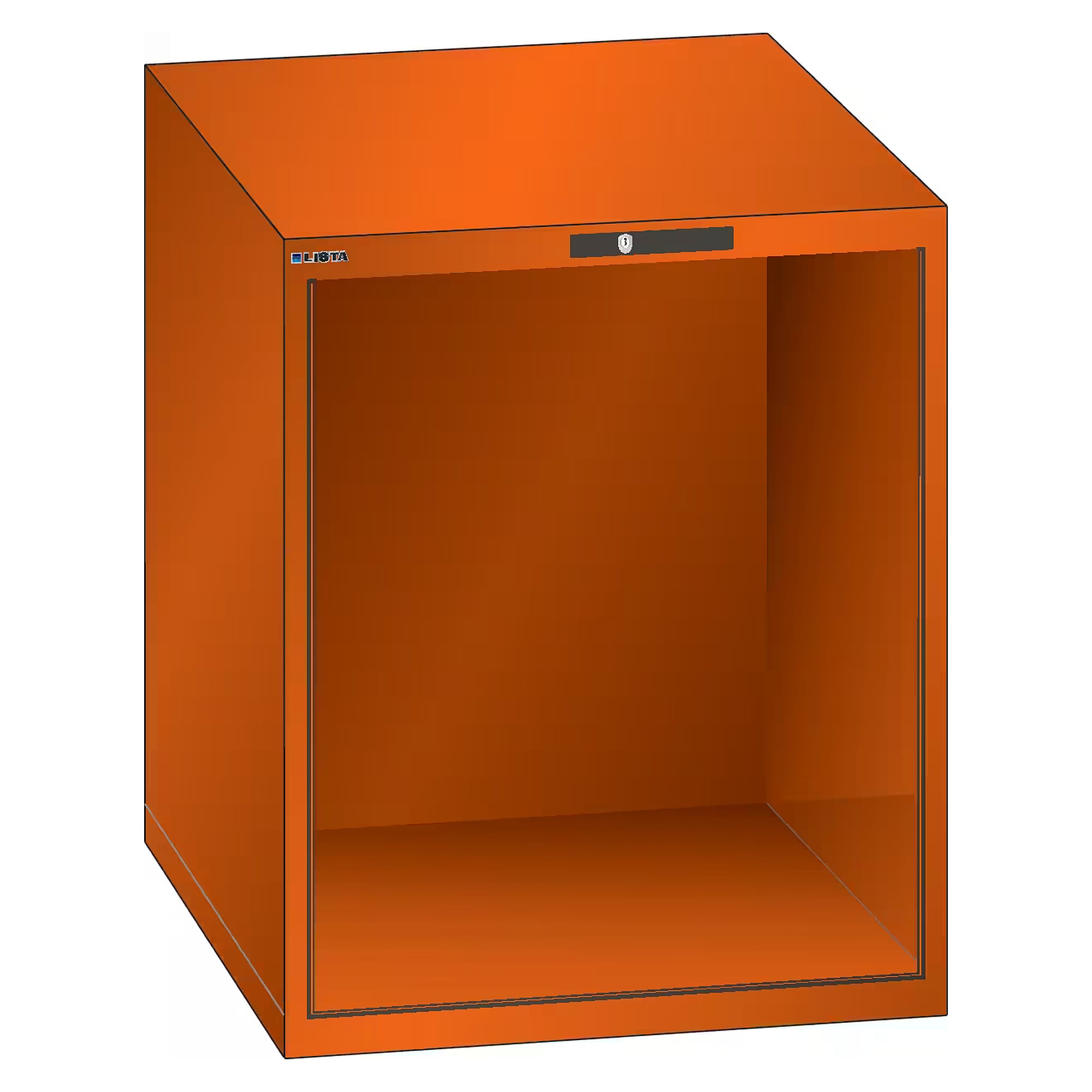

• Orange NCS S 1080-Y40R

Use and combination

Typical places are workstations in electronics production, test stations and labs within the EPA. The dissipative effect requires the cabinet to be properly grounded. Matching items in the 36 x 27 E format include an ESD resin cover plate as a top surface, a ribbed mat for the top, a three-sided roll-off edge, a four-sided roll-off edge with push bar and pairs of ESD castor rails that make the cabinet mobile.

Notes

For loading the drawers, follow the Lista assembly instructions and loading guidelines. Stated load capacities apply to evenly distributed loads. The KEY Lock is supplied without cylinder. Please order the interchangeable cylinder separately.
