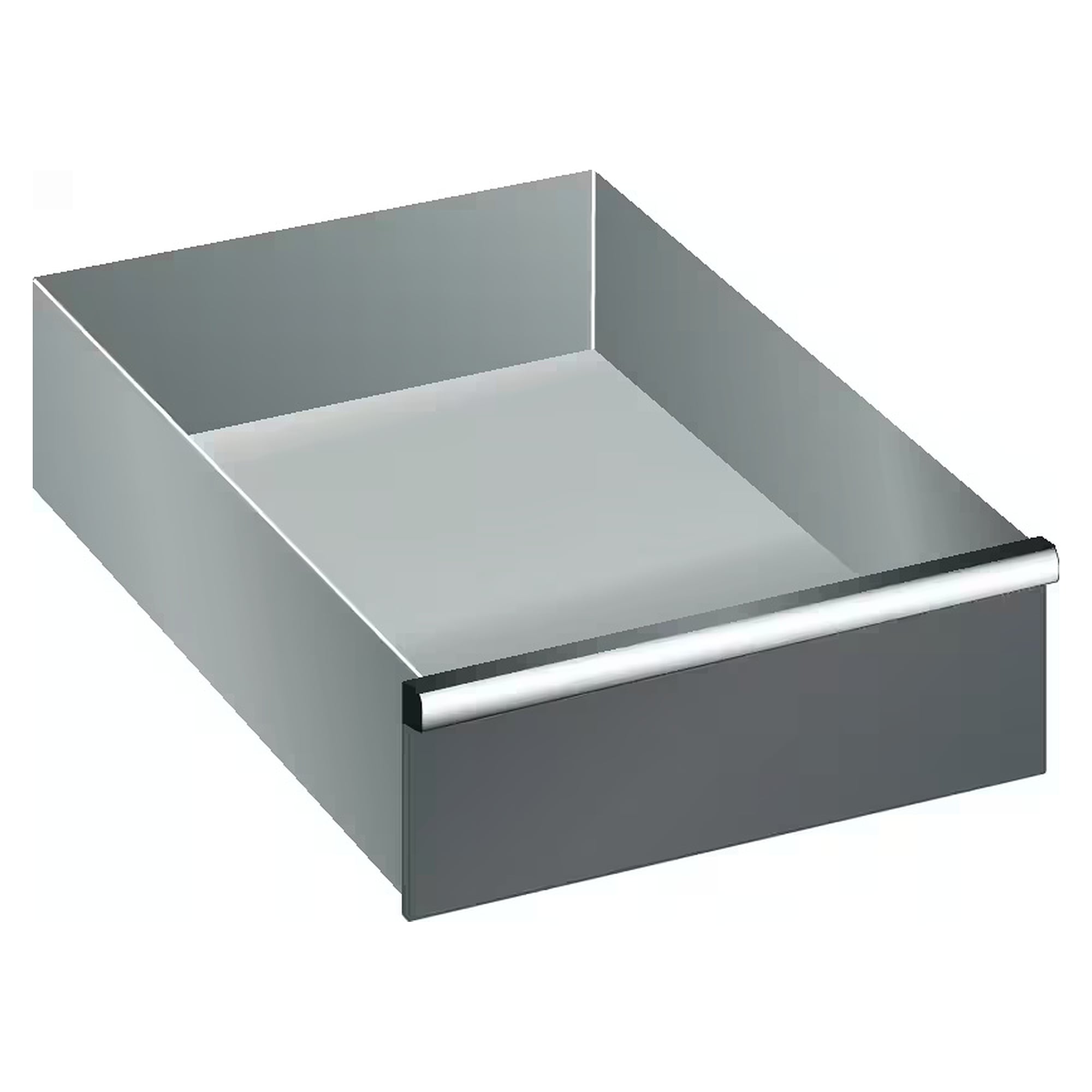

ESD drawer 27x36E, 459x612 mm, front height 150 mm, load capacity 75 kg, standard safety catch - Lista 95.693

For test adapters, power supplies and taller bins at the ESD workstation, this Lista drawer offers 132.5 mm usable height across 459 x 612 mm. The standard version includes a single drawer lock. It carries 75 kg.

Benefits

• Lista dissipative paint coating on all painted surfaces drains charges in a controlled way, provided the cabinet is grounded
• Slot grid in 17 mm units on all inner walls for individual subdivision
• Load capacity 75 kg with evenly distributed load
• Standard version with single drawer lock
• Freely combinable with drawers of other front heights in the same housing

Colours

Choose the ESD colour when ordering.

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

The drawer is ordered separately and fitted into a Lista cabinet housing on the 27x36E grid. It is intended for EPAs in electronics production, test stations, repair and component stores. The slot grid accepts Lista partitioning material such as dividers and component bins.

Notes

• Load drawers according to the Lista assembly instructions and loading rules. The load capacity applies to evenly distributed loads.
• The clear height of the cabinet housing is decisive. The sum of the front heights must equal this clear height.
