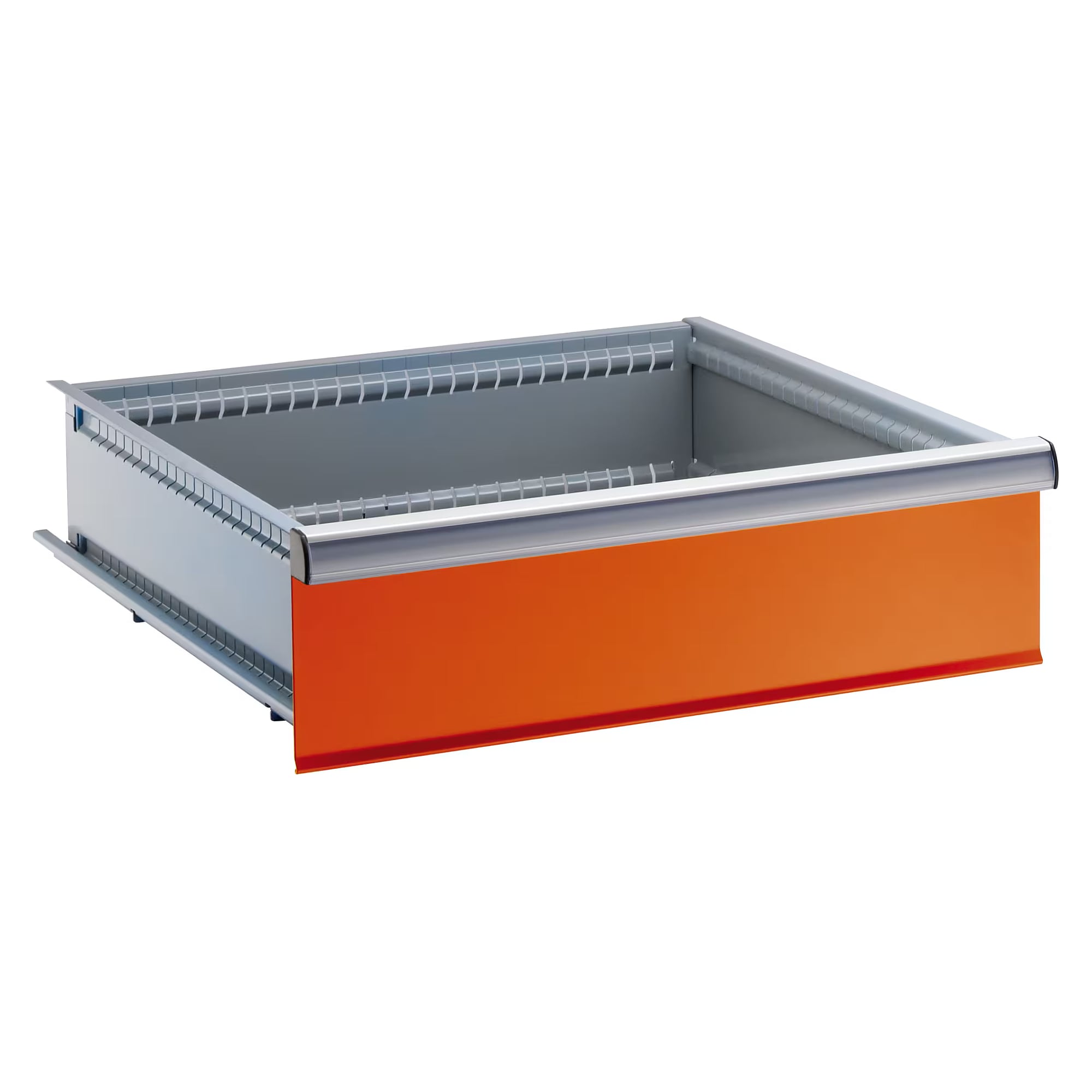

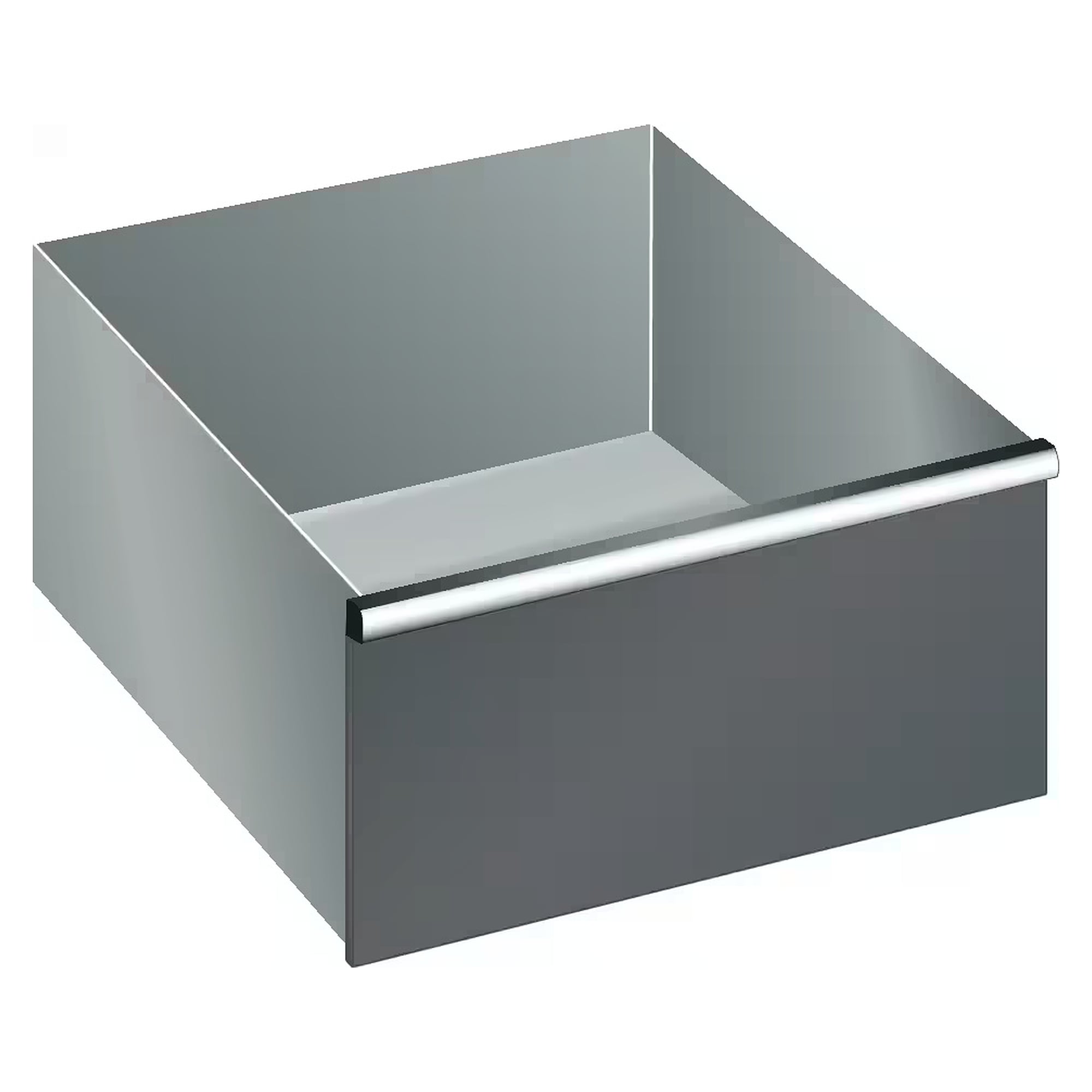

ESD drawer 36x36E, usable 612x612 mm, front height 300 mm, 75 kg, single catch right - Lista 95.763

In mobile 36 x 36 E cabinets, drawers should stay closed even when the lock is open. This version with a 300 mm front, 75 kg capacity and single catch on the right holds tall containers, complete devices and bulky spare parts on 612 x 612 mm.

Benefits

• Dissipative surface: The painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• 75 kg capacity: rated for an evenly distributed load.

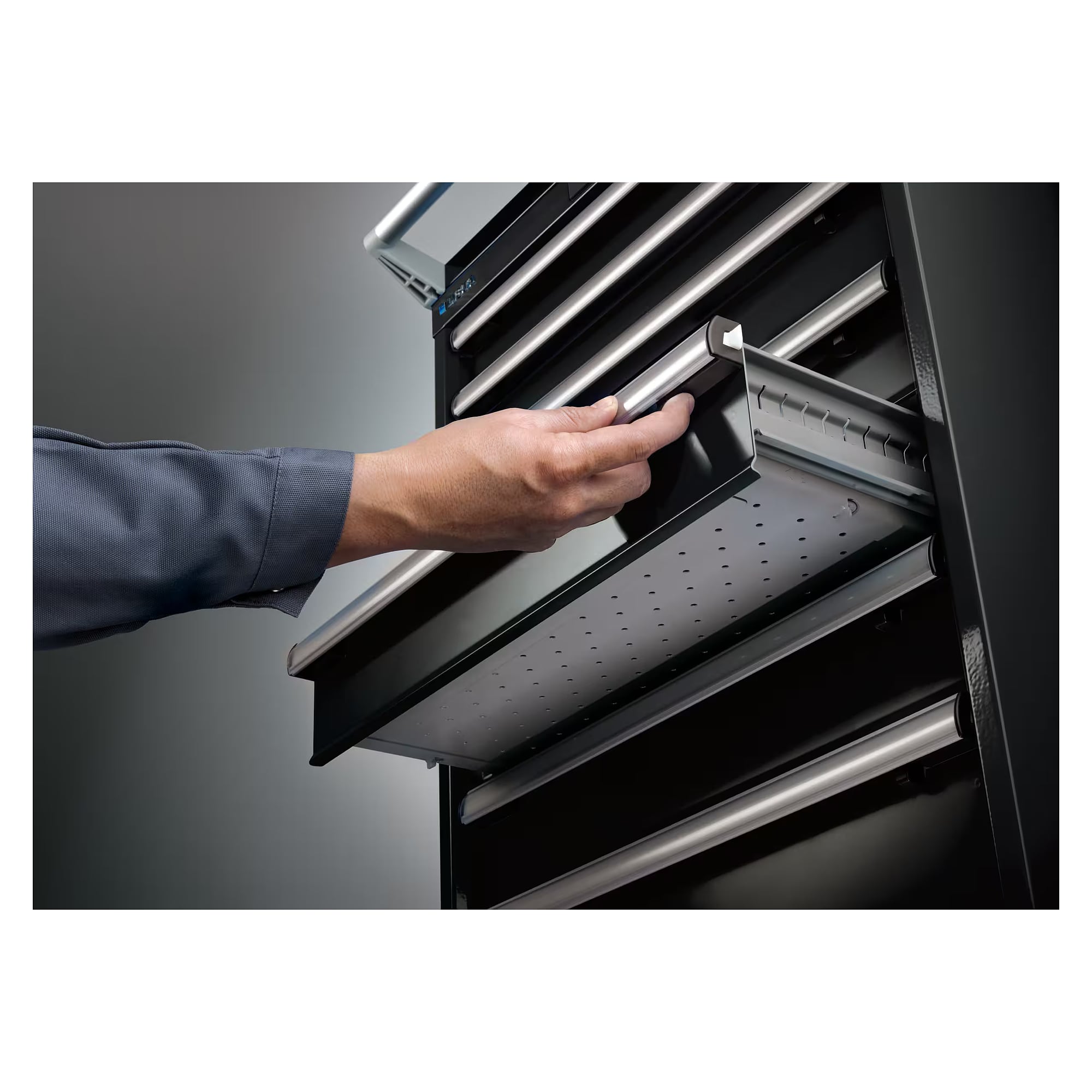

• Single catch on the right: The right-hand single catch is released with one hand and keeps the drawer shut even when the cabinet is not locked.
• 17 mm slot grid: The inner walls are slotted all round in 17 mm units, so the drawer can be divided freely.

Colours

Choose the ESD colour when you order, from these options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

The drawer fits Lista 36 x 36 E cabinet housings, where it can be combined in any order with drawers of other front heights. Typical locations are EPA areas in electronics manufacturing, test and repair stations and the component store. The dissipative effect requires the cabinet to be properly earthed. Lista partitioning material in the 17 mm grid keeps the contents organised.

Notes

• Observe the Lista assembly instructions and loading rules for loading the drawers. The load capacity applies to an evenly distributed load.
• The clear height of the cabinet housing determines the selection: the sum of all front heights must match it.
