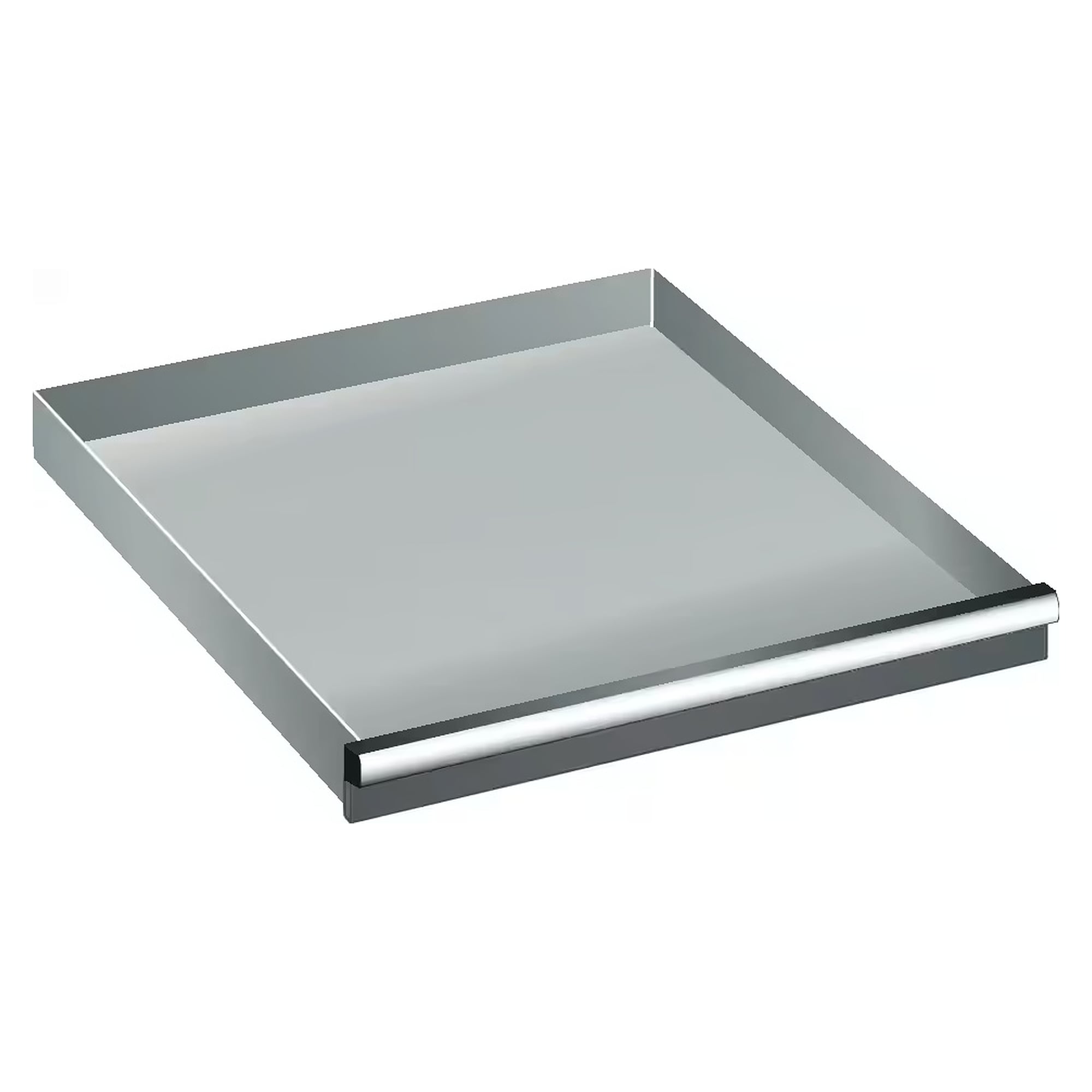

ESD drawer 36x36E, usable area 612x612 mm, front height 50 mm, 75 kg, standard with single-drawer interlock - Lista 95.709

32.5 mm of usable height on 612 x 612 mm: that is the space this ESD drawer in the 36 x 36 E format offers for flat items such as PCBs, stencils and small parts in low inserts. Its 75 kg load capacity is sufficient for components, tools and gauges. It comes in the standard version with single-drawer interlock.

Benefits

• Dissipative surface: the painted surfaces carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• Divisible: the inner walls have a slot grid in 17 mm units on all sides, so the 612 x 612 mm area can be divided as needed.
• 75 kg load capacity: applies to an evenly distributed load.
• Single-drawer interlock: included in the standard version.
• Freely combinable: drawers with different front heights can be fitted in any order in the same 36 x 36 E housing.

Colours

Choose the ESD colour when ordering from these options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016

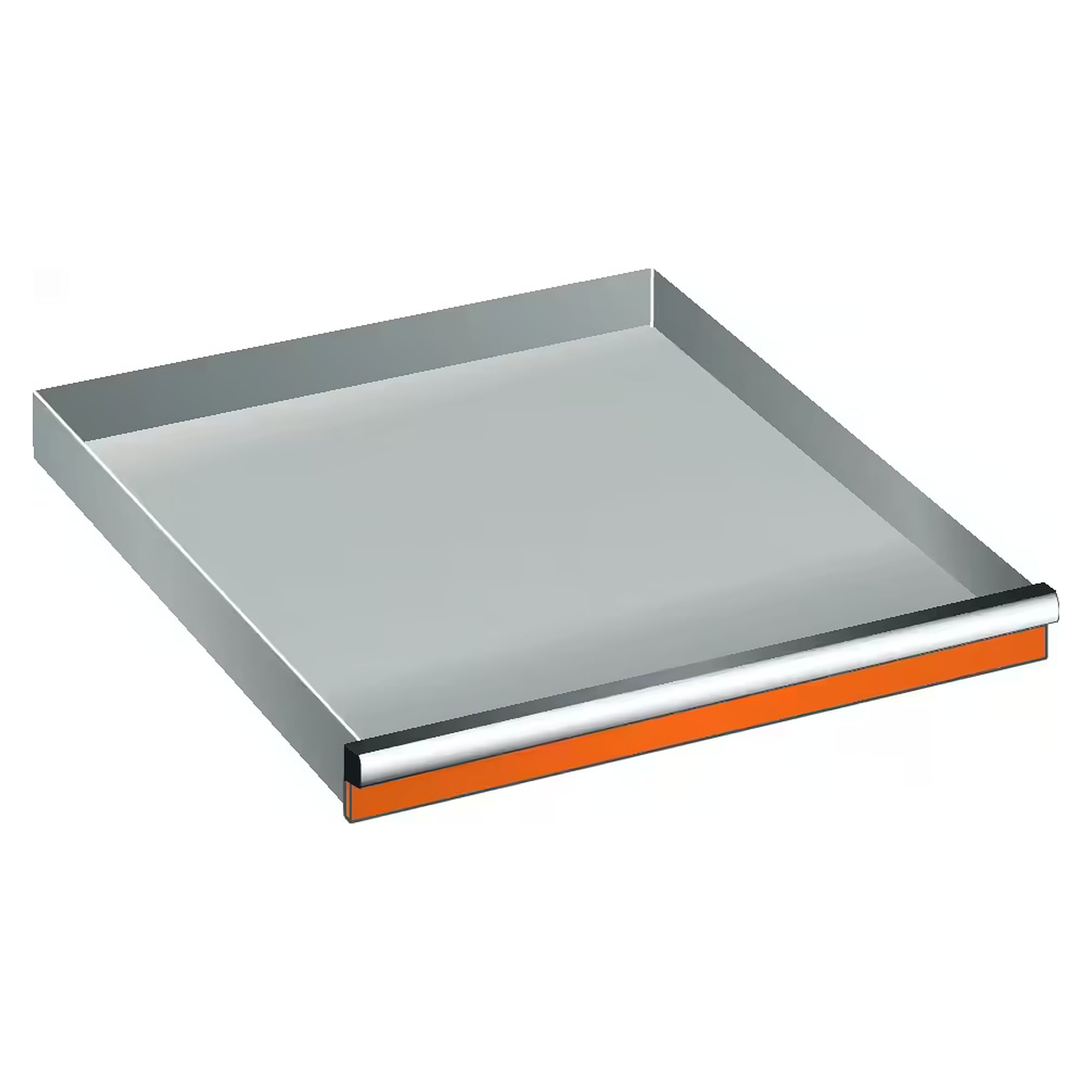

• Orange NCS S 1080-Y40R

Use and combination

The drawer is used in EPA areas of electronics production, at test and repair stations, in labs and in component stores. The dissipative effect requires the cabinet to be properly earthed. It fits Lista cabinet housings in the 36 x 36 E format and can be combined there with drawers of other front heights. The slot grid takes partitioning material for flat items such as PCBs, stencils and small parts in low inserts.

Notes

Follow Lista's assembly instructions and loading guidelines when loading drawers and drawer cabinets. Load capacity applies to an evenly distributed load. The clear height of the cabinet housing determines the drawer selection: the sum of the front heights must equal the clear height. Drawers with a 50 mm front height must be fitted in the top position.
