ESD drawer 54x36E, usable 918x612 mm, front height 50 mm, 75 kg, standard catch - Lista 95.766

32.5 mm usable height on a 918 x 612 mm base: this drawer with a 50 mm front is designed for flat items such as data sheets, stencils, soldering tips and small hand tools in the Lista 54 x 36 E housing and carries 75 kg. At 54 E wide, it is the wide variant in the Lista system.

Benefits

• Dissipative surface: The painted parts carry the dissipative paint coating developed by Lista, which drains charges in a controlled way.
• 75 kg capacity: rated for an evenly distributed load.
• Single drawer interlock: The standard version includes a single drawer interlock, so only one drawer can be open at a time.
• 17 mm slot grid: The inner walls are slotted all round in 17 mm units, so the drawer can be divided freely.

Colours

Choose the ESD colour when you order, from these options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y

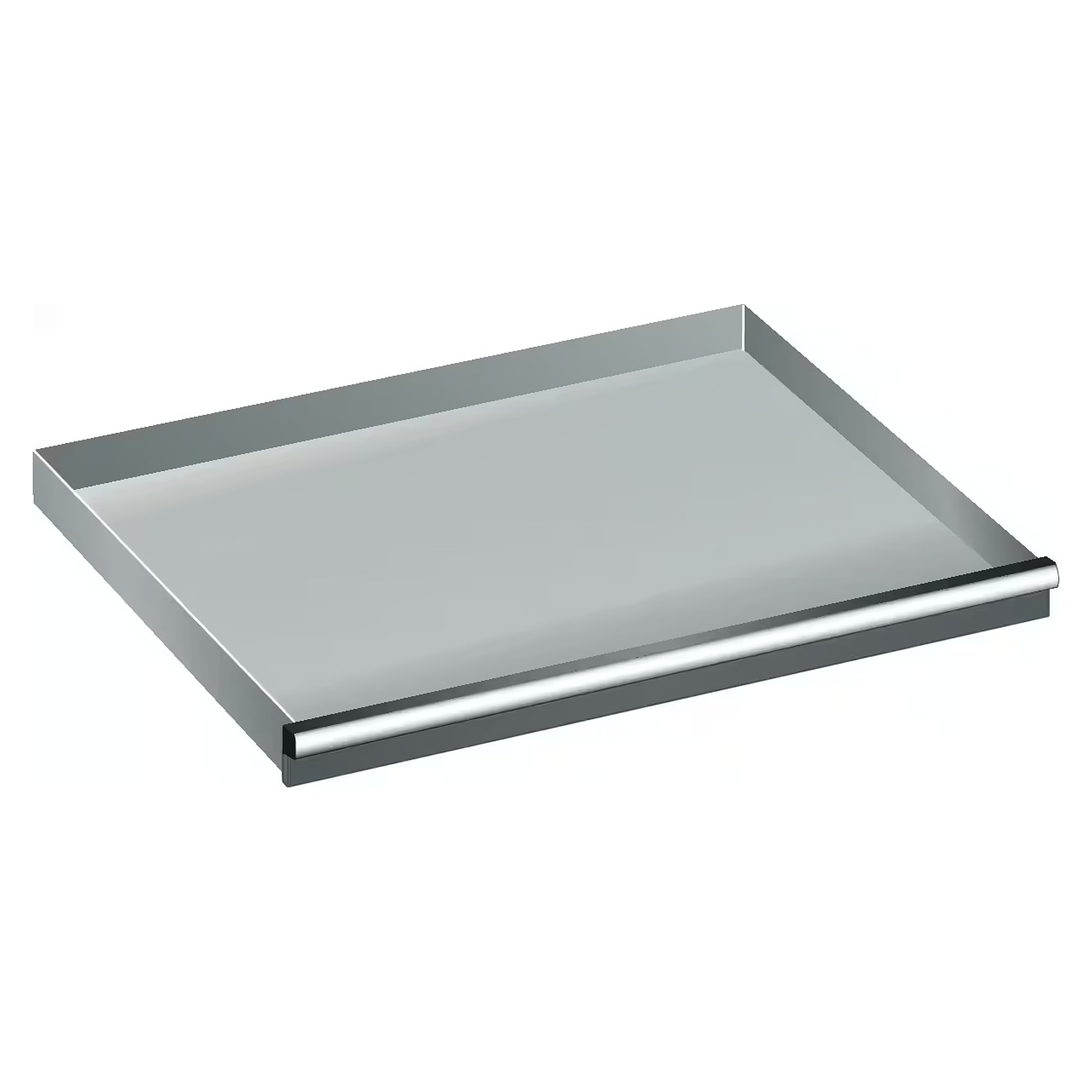

• Anthracite grey RAL 7016

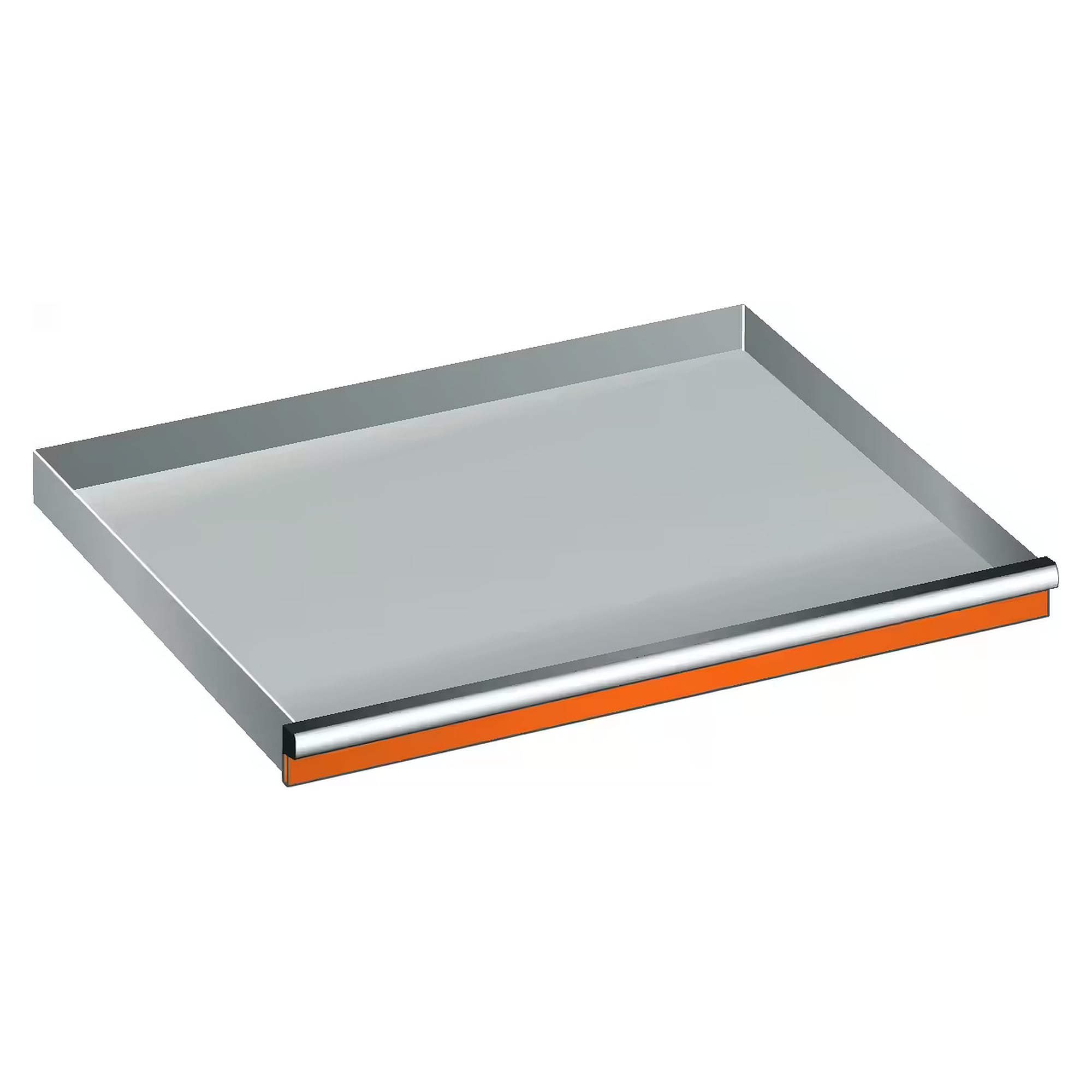

• Orange NCS S 1080-Y40R

Use and combination

The drawer fits Lista 54 x 36 E cabinet housings, where it can be combined in any order with drawers of other front heights. Typical locations are EPA areas in electronics manufacturing, test and repair stations and the component store. The dissipative effect requires the cabinet to be properly earthed. Lista partitioning material in the 17 mm grid keeps the contents organised.

Notes

• Observe the Lista assembly instructions and loading rules for loading the drawers. The load capacity applies to an evenly distributed load.
• The clear height of the cabinet housing determines the selection: the sum of all front heights must match it.
• Drawers with a 50 mm front height must be fitted in the top position.
