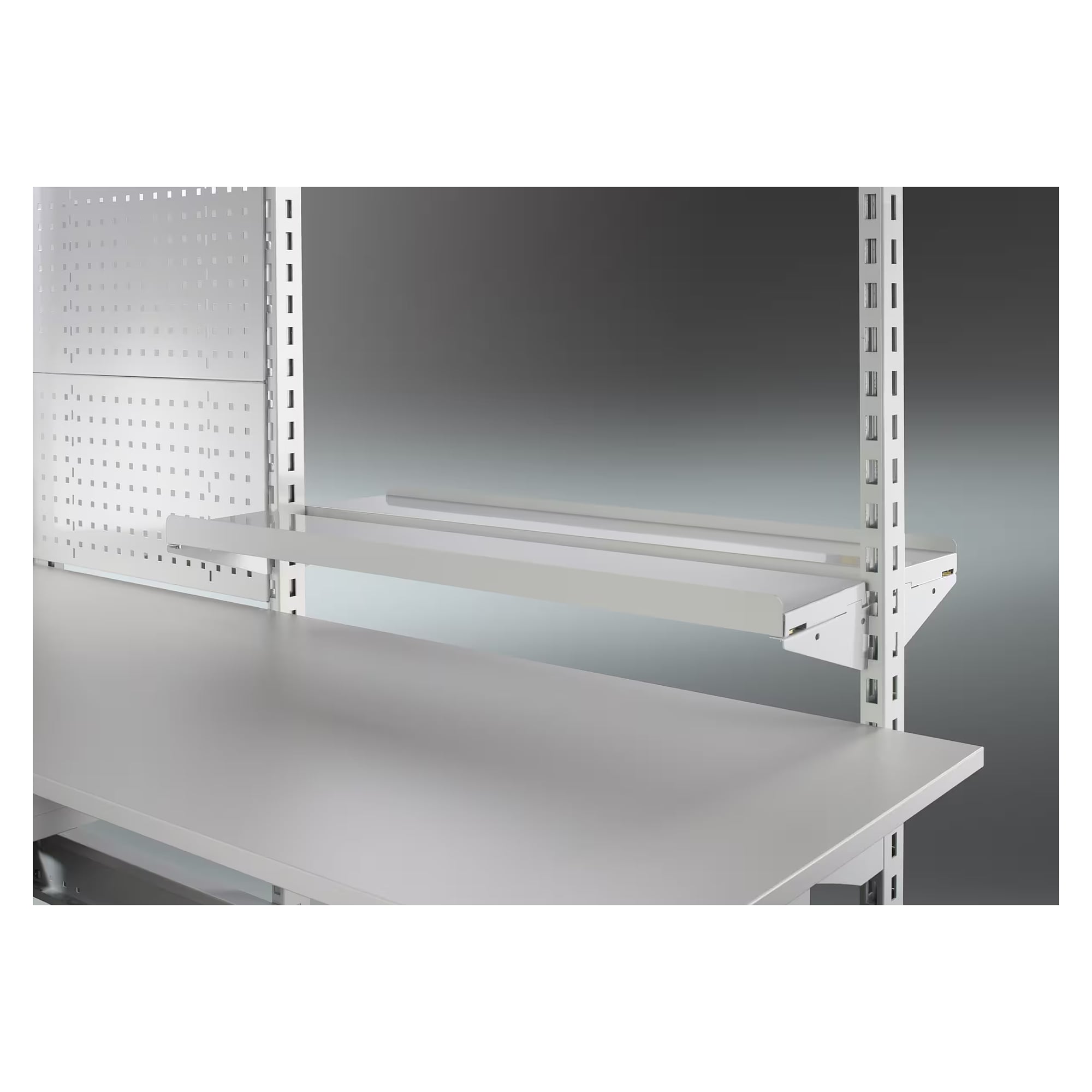

ESD adjustable shelf slotted, 1500x300 mm, usable width 1499 mm, 50 kg, incl. 2 brackets - Lista 95.989

Long assembly stations with 1500 mm column spacing need a shelf that offers continuous space for tools and material. This adjustable shelf provides 1499 mm of usable width at a depth of 300 mm and weighs 6 kg.

Benefits

• Tool-free mounting: two supplied brackets hook into the support columns without screws, horizontal or inclined.
• Slotted surface: the slot row takes dividers and splits the shelf into compartments.
• Stop edge front or rear: the edge along one long side keeps parts from sliding off.
• Load capacity 50 kg: with the dissipative paint coating developed by Lista, which drains charges in a controlled way.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

The adjustable shelf belongs to the Lista universal superstructures and is mounted on support columns above ESD workbenches, for assembly, test and repair stations in the EPA. The module width of 1500 mm must match the column spacing of the superstructure. Dividers create compartments for components, tools and documents. The dissipative effect requires an earthed workstation.
