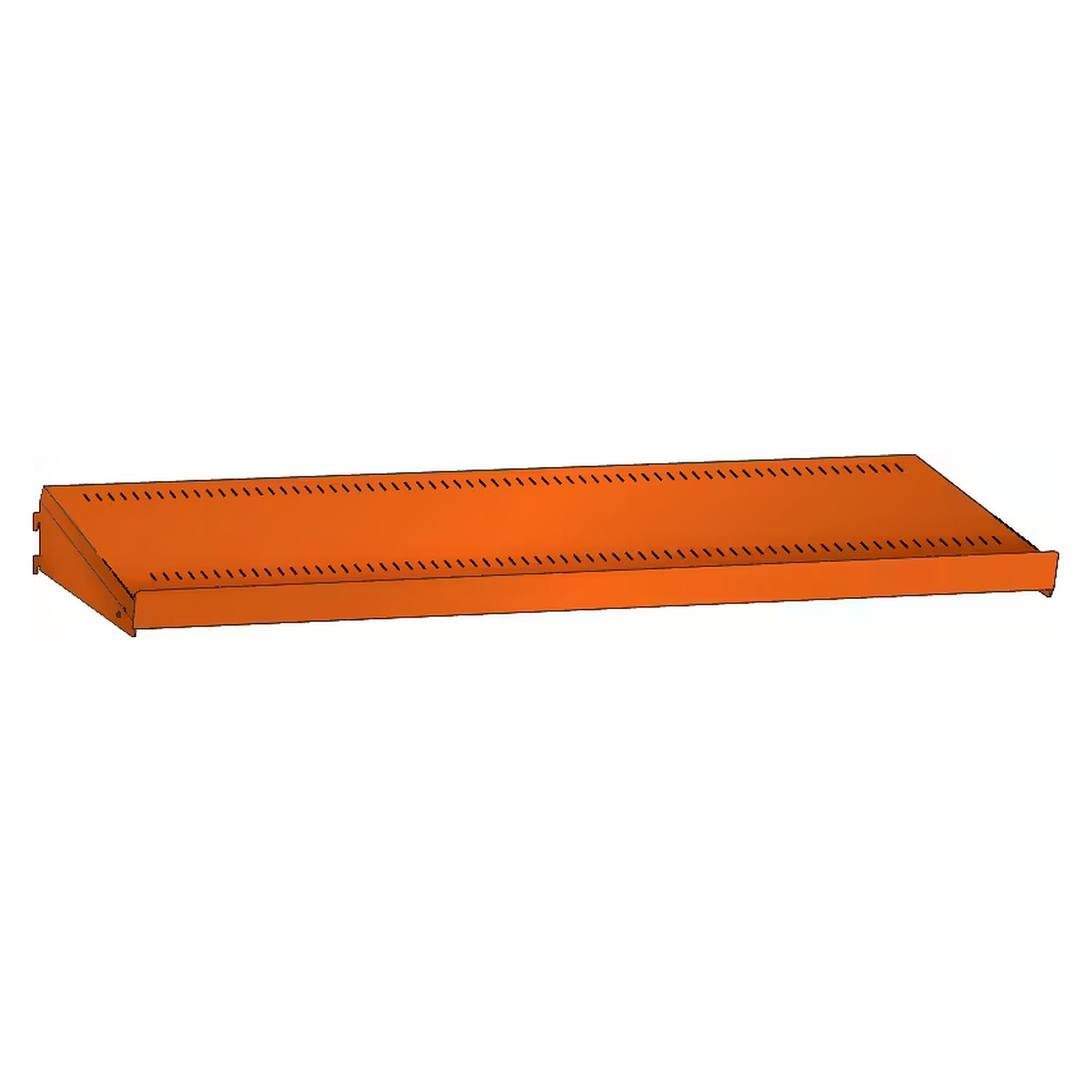

ESD adjustable shelf slotted, 750x300 mm, usable width 749 mm, 50 kg, incl. 2 brackets - Lista 95.986

When the soldering station, fume extraction and component boxes all need a place, the 750 module width is the right size. The shelf measures 750 x 300 mm, offers 749 mm of usable width and carries 50 kg.

Benefits

• Tool-free mounting: two supplied brackets hook into the support columns without screws, horizontal or inclined.
• Slotted surface: the slot row takes dividers and splits the shelf into compartments.
• Stop edge front or rear: the edge along one long side keeps parts from sliding off.
• Load capacity 50 kg: with the dissipative paint coating developed by Lista, which drains charges in a controlled way.

Colours

Choose the ESD colour when ordering from the following options:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

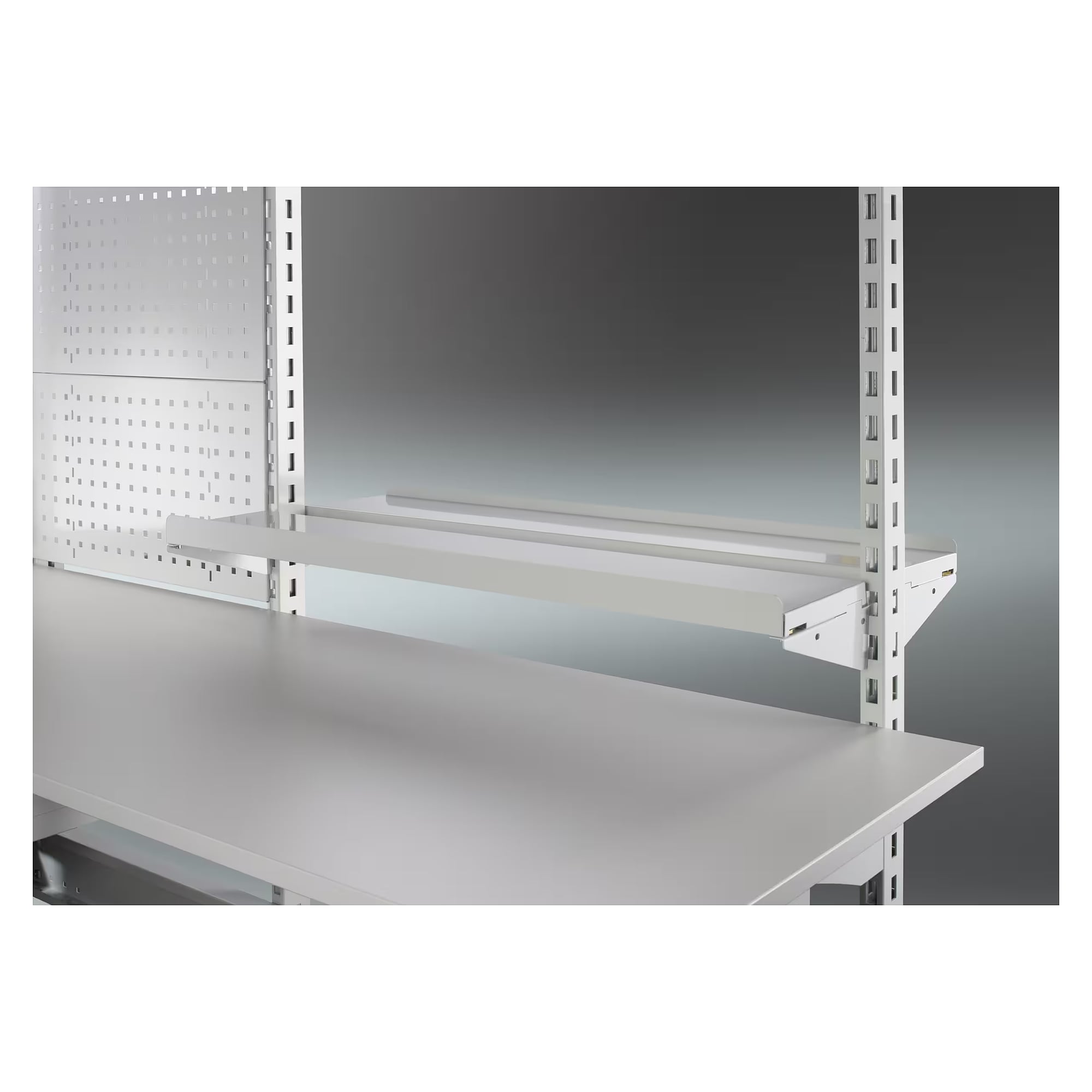

The adjustable shelf belongs to the Lista universal superstructures and is mounted on support columns above ESD workbenches, for assembly, test and repair stations in the EPA. The module width of 750 mm must match the column spacing of the superstructure. Dividers create compartments for components, tools and documents. The dissipative effect requires an earthed workstation.
