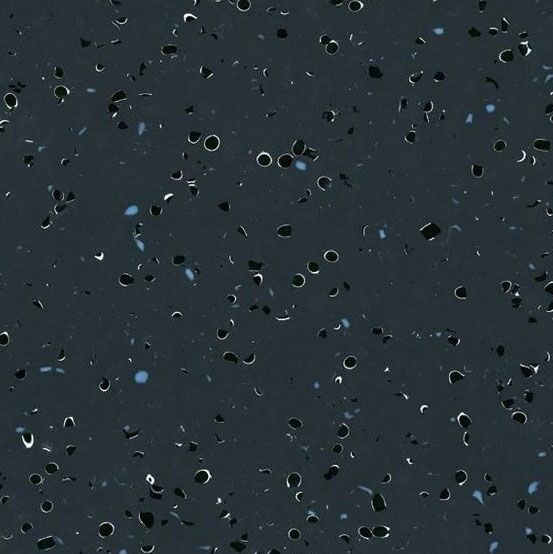

ESD interlocking floor tile GTI EL5 Connect 63.5 x 63.5 cm, black - Gerflor 3551-0351

The GTI EL5 Connect is a dissipative interlocking floor tile for ESD protected areas in electronics manufacturing, test areas and cleanrooms. The tiles are loose-laid and join through a dovetail profile to form a continuous dissipative floor without adhesive.

Benefits

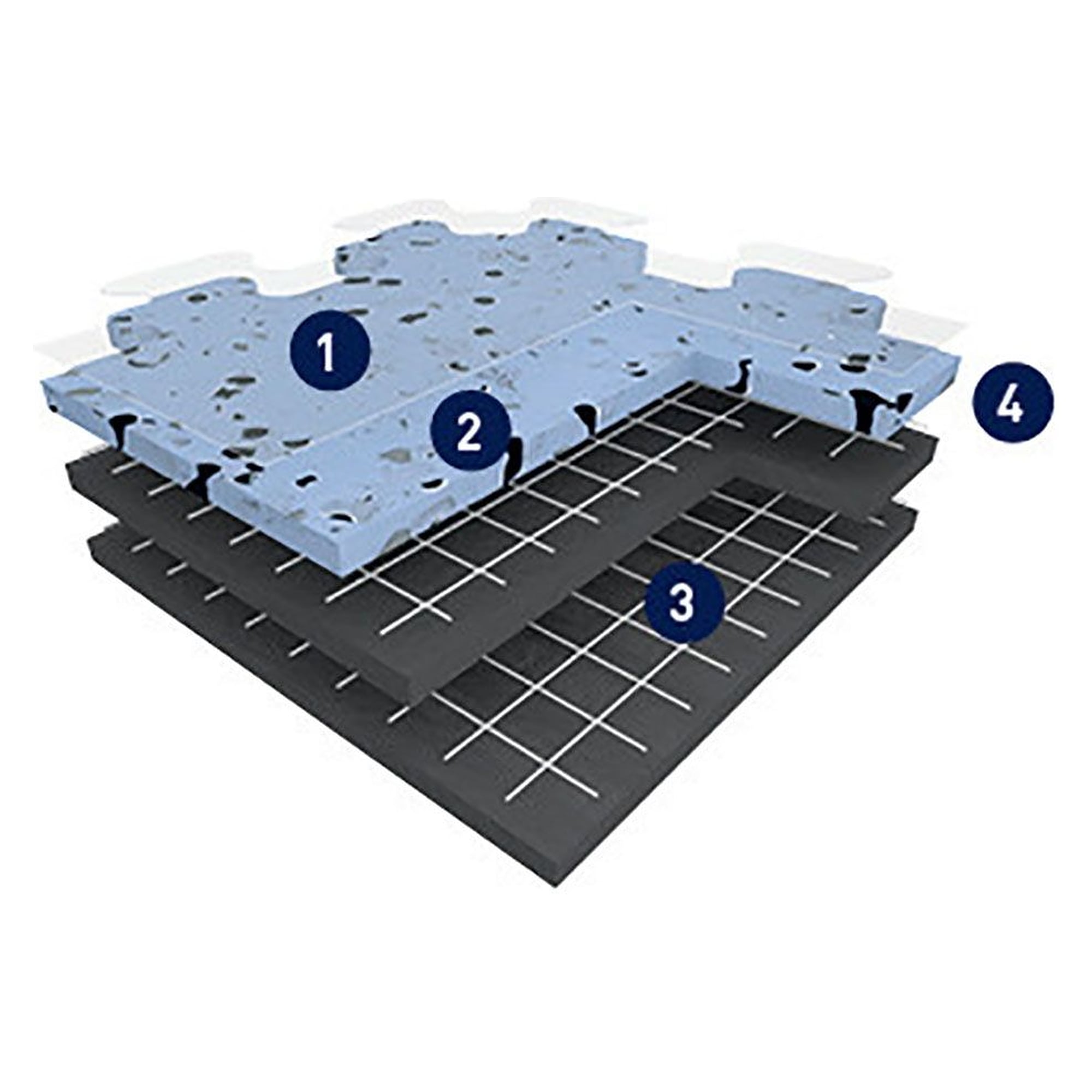

• Permanent dissipative behaviour from carbon granules through the full thickness and a conductive backing
• Evercare PUR surface for low cleaning and maintenance effort, no wax for life

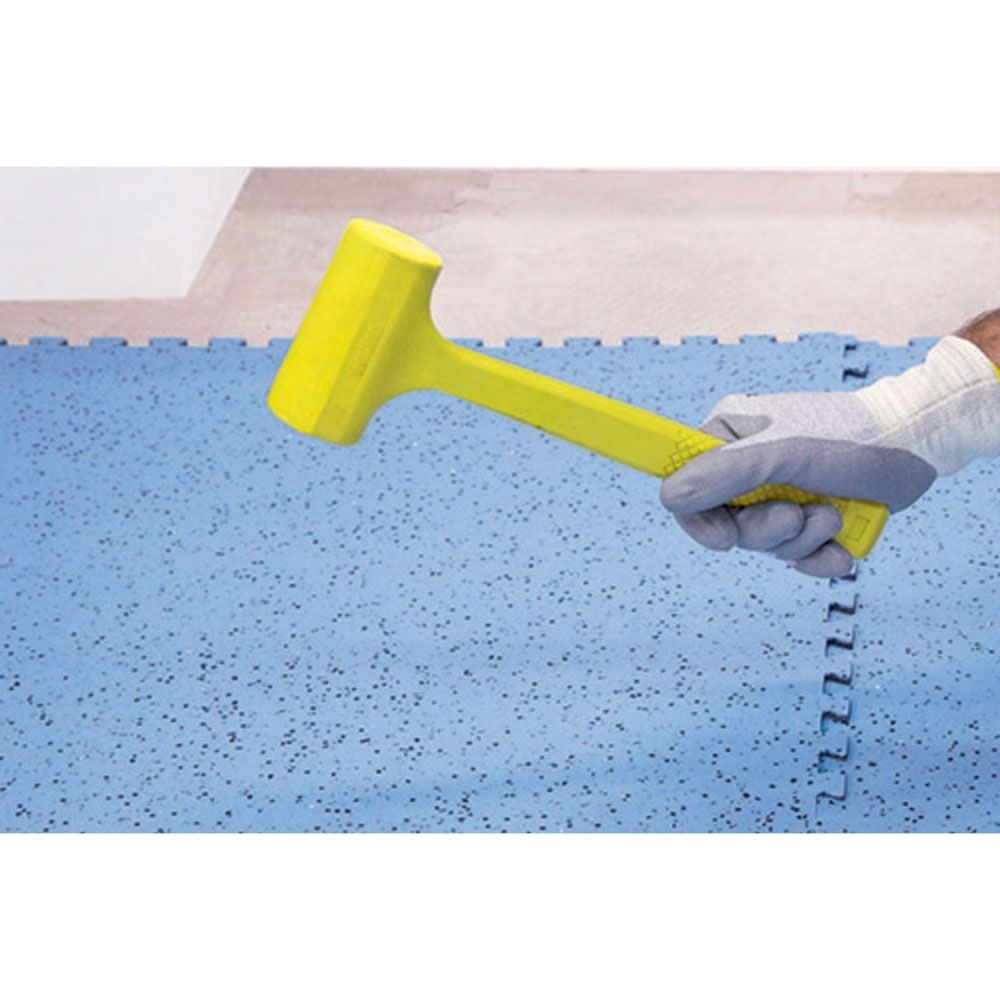

• Adhesive-free installation, also in renovation and during operation
• Fully recyclable, free of heavy metals, VOC < 10 µg/m³ after 28 days (EN 16000-6)

Technical data

• Material: heterogeneous vinyl to ISO 10582, type I
• Tile format: 63.5 x 63.5 cm (0.40 m²)
• Overall thickness: 6.0 mm, wear layer 2.0 mm
• Joint: dovetail profile, loose-lay (adhesive-free)
• Surface: Evercare PUR treatment, smooth, non-directional
• Reinforcement: double fibreglass grid
• Electrical resistance: ≤ 10⁹ Ω (IEC 61340-4-1 / IEC 61340-4-5 / ANSI ESD 7.1)
• Body voltage: < 2 kV (EN 1815)
• Use class: 34 / 43 (ISO 10874)
• Reaction to fire: Bfl-s1 (EN 13501-1)
• Slip resistance: R9 (DIN 51130)
• Weight per area: 9,240 g/m² (ISO 23997)

Applications

Suitable for castor chairs to EN 12529 type W and for areas under the highest load. The first row of tiles at the entrance is bonded per the manufacturer instruction.

Standards and compliance

Meets IEC 61340-5-1 (ESD), IEC 61340-4-1, EN 13501-1 (Bfl-s1) and carries CE marking.
