ESD floor tile GTI EL5 Cleantech, conductive, 65 x 65 cm, Black - Gerflor 3552-0351

Conductive ESD floor tile GTI EL5 Cleantech in Black, 65 x 65 cm, overall thickness 6.0 mm. 5 x 10^4 <= Rt <= 10^6 Ohm (EN 1081).

Benefits

• Permanently conductive through the full thickness, with no loss of effect over time
• Installation: laid without adhesive, straight edges for heat welding
• Use class 34 - 43 to EN ISO 10874, the highest commercial and industrial rating
• Reaction to fire Bfl-s1 to EN 13501-1, slip resistance R9 to DIN 51130
• TVOC below 10 µg/m³ after 28 days (ISO 16000-6), FloorScore certified

Technical data

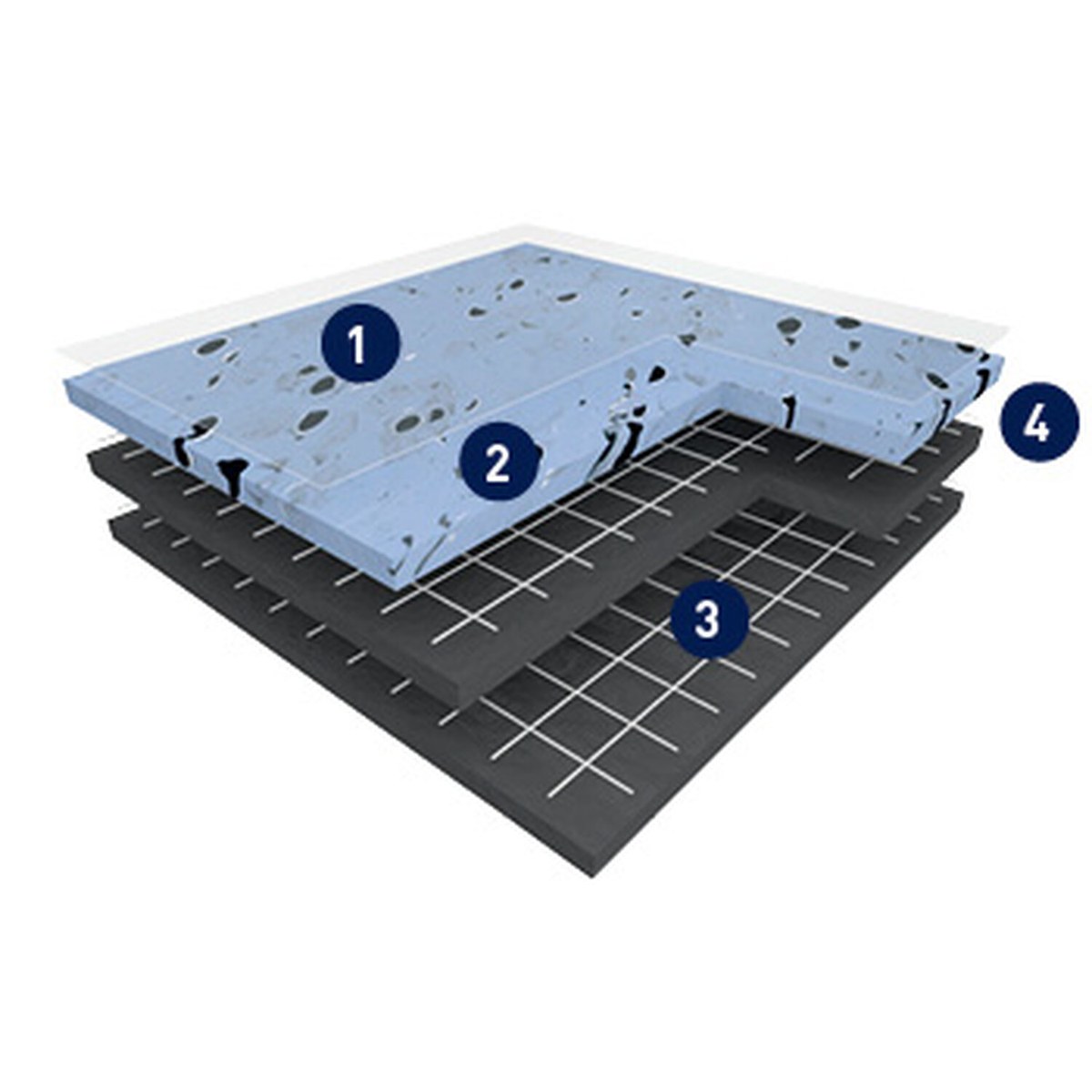

• Material: heterogeneous vinyl tile to EN ISO 10582, binder content type I
• Colour: 0351 Black (NCS 8000-N, light reflectance value LRV 7)
• Format: 65 x 65 cm (0.4225 m² per unit)
• Overall thickness: 6.0 mm, wear layer 2.0 mm
• Weight per area: 9240 g/m² to EN ISO 23997
• Electrical resistance: 5 x 10⁴ ≤ Rt ≤ 10⁶ Ω (EN 1081)
• Body voltage generation: below 2 kV to EN 1815
• Gerflor article number: 3552-0351

Installation

The covering is connected to the equipotential bonding, earthed through a copper strip grid in the substrate. Resistance has to be measured and documented on the finished floor to IEC 61340-4-1 after installation. Manufacturer values apply before installation.

Standards and conformity

Complies with IEC 61340-5-1 and ANSI/ESD S20.20 (ESD control), EN ISO 10581 or EN ISO 10582 (product standard), EN 13501-1 (reaction to fire) and EN 14041 (CE marking). Data sheet, installation and cleaning instructions are available for download in the category.

Price on request. We calculate quantity, waste allowance, welding rod and accessories for your project.
