Glamox O3669178421D. Bollard O36 LED 1700 DALI 840 1000MM AL

Name: Glamox O3669178421D. Bollard O36 LED 1700 DALI 840 1000MM AL
Brand: Glamox
SKU: GL-O3669178421D
Price: 1183 EUR
Availability: InStock

Lead time

6 weeks

€1,183.00

Excl. 19% VAT , excl. Shipping Cost

Article

GL-O3669178421D

Manufacturer Nr.

O3669178421D

O36 LED 1700 DALI 840 1000MM AL

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox O3669178421D. Bollard O36 LED 1700 DALI 840 1000MM AL
€1,183.00
Excl. 19% VAT , excl. Shipping Cost
Glamox O4979008421. Pole O49 LED 4000 HF 840 CL/OP ALU
€999.60
Excl. 19% VAT , excl. Shipping Cost

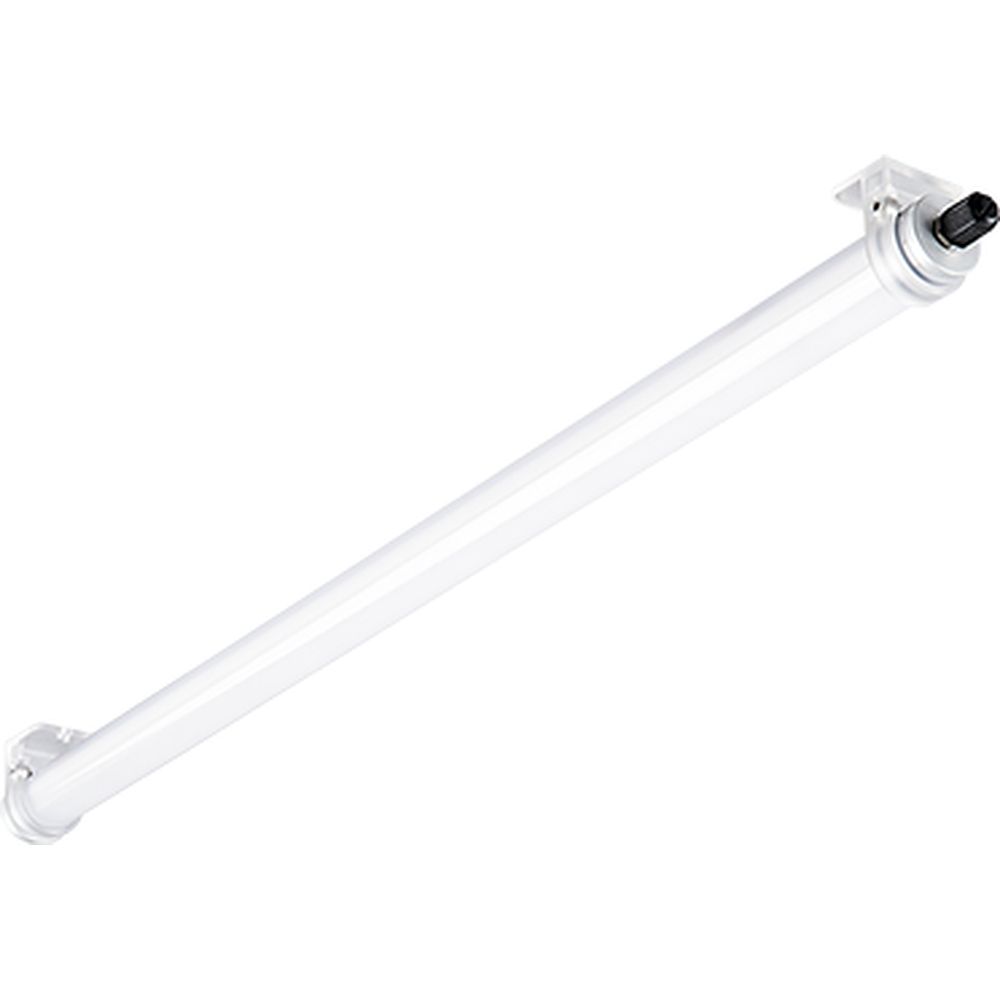

Glamox 523032. Linear O65-550 LED 200 840 OP
€179.20
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Square
LMS System
1. Number of DALI addresses
  1
2. LMS Protocol
  DALI
Technical Data
1. Minimum ambient temperature (ºC)
  -25
2. Maximum ambient temperature (°C)
  35
3. IK classification
  09
4. IP classification
  66
5. Corrosion class
  C4
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  1,750
3. Lumen per Watt (lm/W)
  49
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  D
Driver / Ballast
1. Type of LED Driver
  DALI: Dimming
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. L70 Median useful life LED MaxTa (hr)
  100 000

Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Main Feed DC (V) Min
  180
6. Main Feed DC (V) Max
  270
7. Total consumption (W)
  36
8. IEC Protection Class
  II
9. Protection against surges (kV)
  4
10. Number of luminaires on a 10A MCB type B (80% load)
  8
11. Number of luminaires on a 10A MCB type C (80% load)
  13
12. Number of luminaires on a 16A MCB type B (80% load)
  13
13. Number of luminaires on a 16A MCB type C (80% load)
  22
Optic
1. Material of diffuser
  Tempered glass
2. Diffuser material design
  Clear
Housing
1. Main body material
  Aluminium
2. Body colour
  Grey
3. Main body colour name
  Aluminium grey

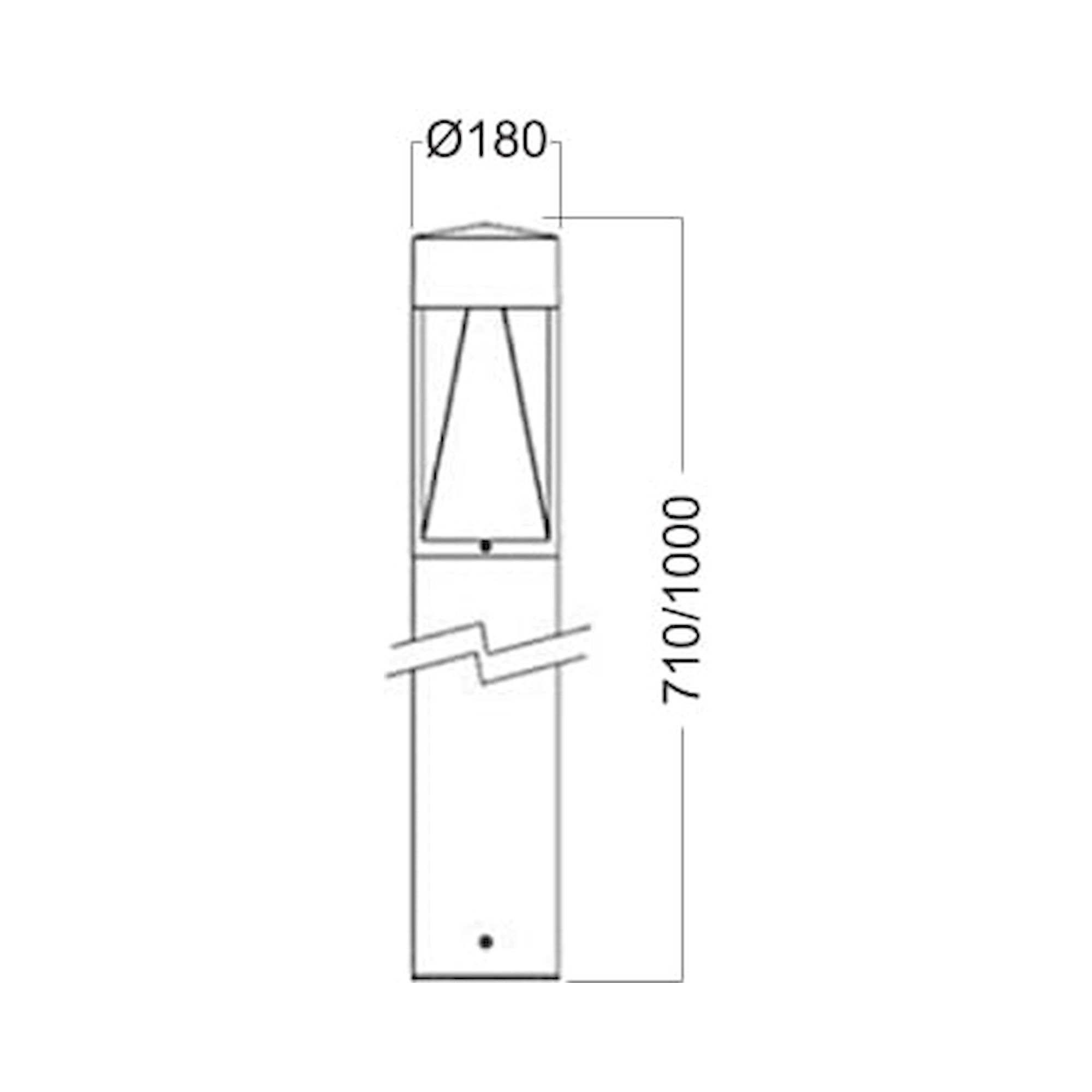

Dimensions
1. Length (mm)
  180
2. Width (mm)
  180
3. Height (mm)
  1,000
4. Net weight (kg)
  12.18
Mounting
1. Product mounting
  Surface Ground
Logistic Data
1. Item gross weight (kg)
  13.24

Information

More Information
Manufacturer Nr.	O3669178421D
Manufacturer	Glamox
EAN	8054378412950
Lead time	6 weeks
Weight	13.240000
Colour	4000K
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
