Glamox O5584028312ND1. Pole O55-250 LED 6500 ND1 830 WBA BLACK

Name: Glamox O5584028312ND1. Pole O55-250 LED 6500 ND1 830 WBA BLACK
Brand: Glamox
SKU: GL-O5584028312ND1
Price: 795.9 EUR
Availability: InStock

Lead time

6 weeks

€795.90

Excl. 19% VAT , excl. Shipping Cost

Article

GL-O5584028312ND1

Manufacturer Nr.

O5584028312ND1

O55-250 LED 6500 ND1 830 WBA BLACK

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox O5584028312ND1. Pole O55-250 LED 6500 ND1 830 WBA BLACK
€795.90
Excl. 19% VAT , excl. Shipping Cost

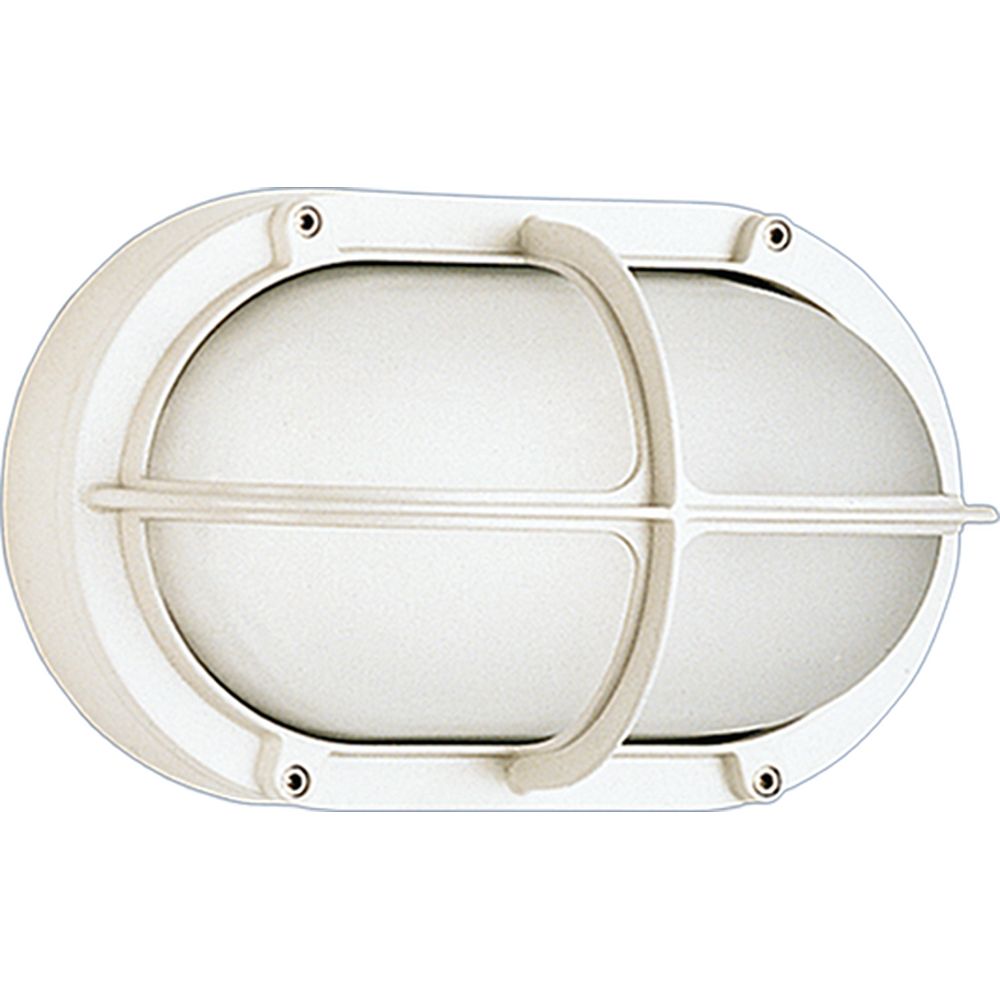

Glamox 4020672. ALFA OVAL 40-20 LED 1000 HF 830 WHITE
€291.90
Excl. 19% VAT , excl. Shipping Cost
Glamox 5250824. Architectural Lighting O44-175 LED 1800 HF 840 MB BL
€499.10
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Square
Completeness
1. Item is not complete, missing
  Bracket
Technical Data
1. Minimum ambient temperature (ºC)
  -25
2. Maximum ambient temperature (°C)
  35
3. IK classification
  09
4. IP classification
  66
5. Corrosion class
  C4
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  6,800
3. Lumen per Watt (lm/W)
  89
4. Lamp colour temp (K)
  3000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  D
Driver / Ballast
1. Type of LED Driver
  Night Dim Mode 1: Dim 50% for 6hrs
2. Number of Driver
  1
Lifetime
1. L90 Median useful life LED Ta25 (hr)
  100 000
2. L80 Median useful life LED MaxTa (hr)
  100 000
3. Luminous flux decline (LLMF) 50.000h Ta25
  0.95
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Total consumption (W)
  76
6. IEC Protection Class
  II
7. Protection against surges (kV)
  6
8. Number of luminaires on a 10A MCB type B (80% load)
  7
9. Number of luminaires on a 10A MCB type C (80% load)
  13
10. Number of luminaires on a 16A MCB type B (80% load)
  12
11. Number of luminaires on a 16A MCB type C (80% load)
  21

Optic
1. Optic
  WBA - Wide beam asymmetric
2. Material of diffuser
  Tempered glass
3. Diffuser material design
  Clear
Housing
1. Main body material
  Aluminium
2. Body colour
  Black
3. Main body colour name
  Black
Dimensions
1. Length (mm)
  520
2. Width (mm)
  250
3. Height (mm)
  95
4. Net weight (kg)
  6.96
Cable
1. Cable Cross section (mm²)
  1
2. Cable End / Plug Name
  Open End
3. Cable length (m)
  6
4. Cable material
  RUBBER
5. No of leads
  2
Mounting
1. Product mounting
  Pole
Logistic Data
1. Item gross weight (kg)
  7.56

Information

More Information
Execution	TEC
Manufacturer Nr.	O5584028312ND1
Manufacturer	Glamox
Country of Manufacture	Germany
EAN	8054378349416
Lead time	6 weeks
Weight	7.560000
Colour	3000K
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
