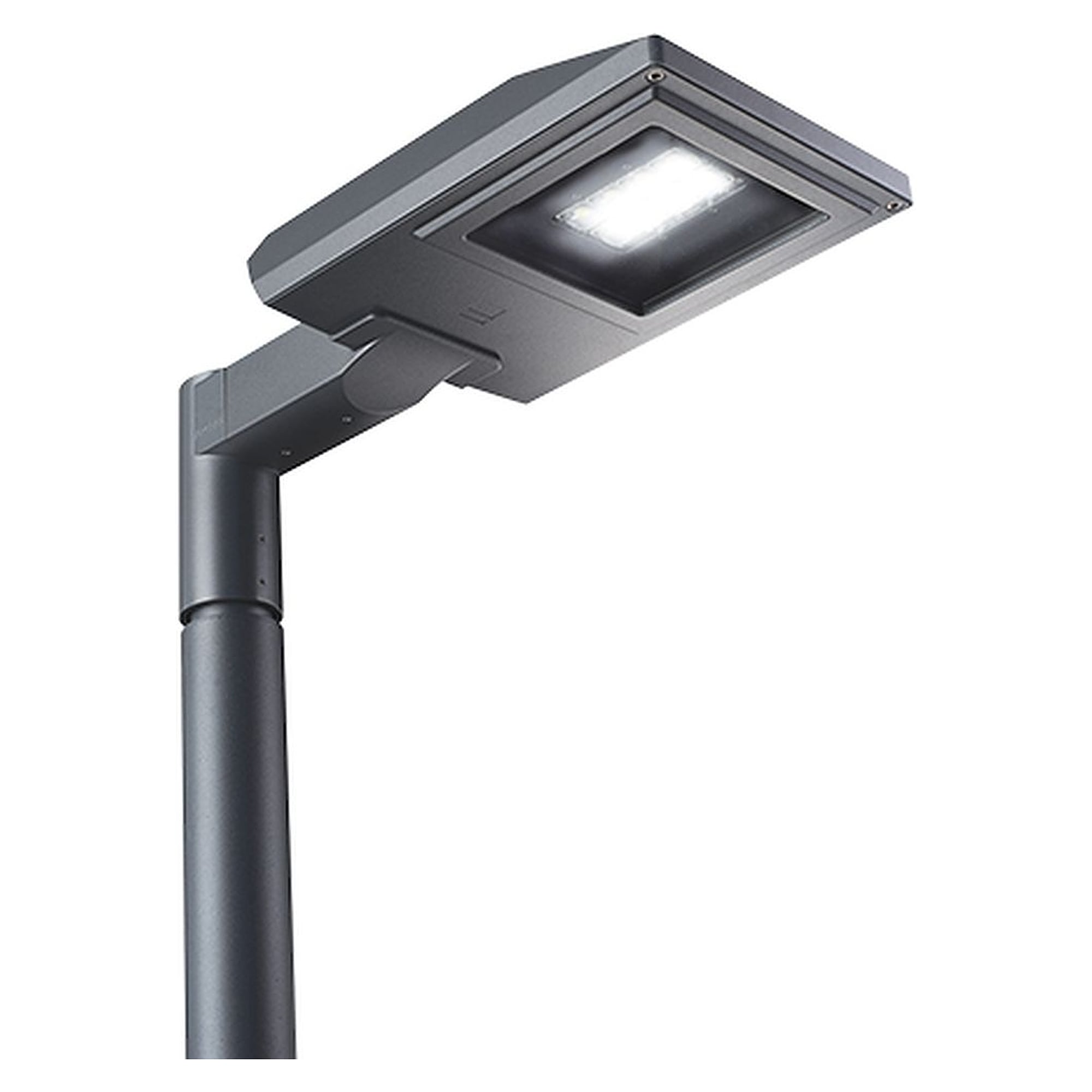

Glamox O5584048412D. Pole O55-250 LED 7000 DALI 840 MBA BL

Name: Glamox O5584048412D. Pole O55-250 LED 7000 DALI 840 MBA BL
Brand: Glamox
SKU: GL-O5584048412D
Price: 890.4 EUR
Availability: InStock

Lead time

6 weeks

€890.40

Excl. 19% VAT , excl. Shipping Cost

Article

GL-O5584048412D

Manufacturer Nr.

O5584048412D

O55-250 LED 7000 DALI 840 MBA BL

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox O5584048412D. Pole O55-250 LED 7000 DALI 840 MBA BL
€890.40
Excl. 19% VAT , excl. Shipping Cost
Glamox 5251024. Architectural Lighting O44-245 LED 3500 HF 840 ASY BL
€753.20
Excl. 19% VAT , excl. Shipping Cost
Glamox 514045393. Pole O52-380 LED 10000 HF 740 WBA
€669.90
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Square
LMS System
1. Number of DALI addresses
  1
2. LMS Protocol
  DALI
Completeness
1. Item is not complete, missing
  Bracket
Technical Data
1. Minimum ambient temperature (ºC)
  -25
2. Maximum ambient temperature (°C)
  35
3. IK classification
  09
4. IP classification
  66
5. Corrosion class
  C4
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  7,400
3. Lumen per Watt (lm/W)
  97
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  D
8. Minimum dim level (%)
  10
Driver / Ballast
1. Type of LED Driver
  DALI: Dimming
2. Number of Driver
  1
Lifetime
1. L90 Median useful life LED Ta25 (hr)
  100 000
2. L80 Median useful life LED MaxTa (hr)
  100 000
3. Luminous flux decline (LLMF) 50.000h Ta25
  0.95

Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Total consumption (W)
  76
6. IEC Protection Class
  II
7. Protection against surges (kV)
  6
8. Number of luminaires on a 10A MCB type B (80% load)
  7
9. Number of luminaires on a 10A MCB type C (80% load)
  13
10. Number of luminaires on a 16A MCB type B (80% load)
  12
11. Number of luminaires on a 16A MCB type C (80% load)
  21

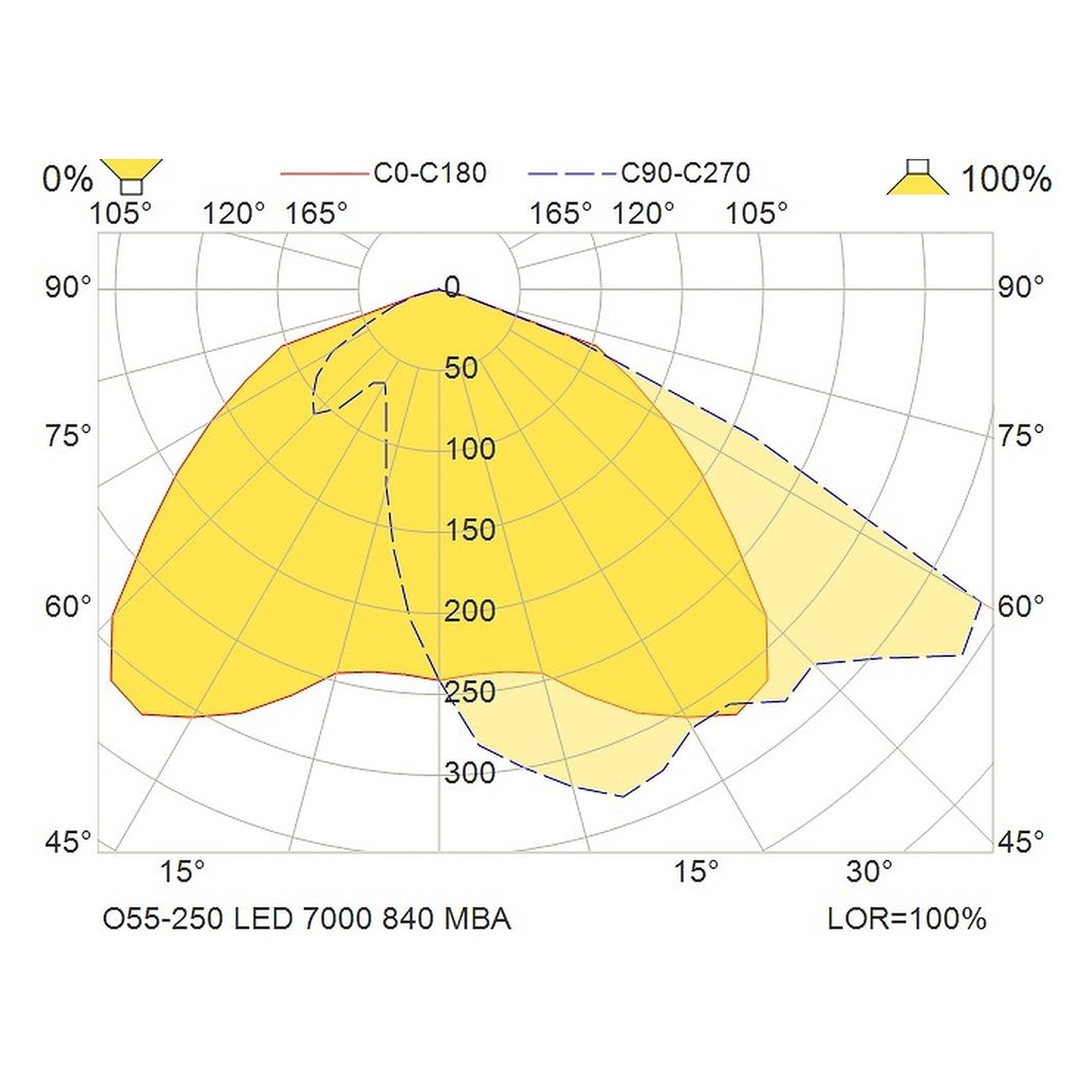

Optic
1. Optic
  MBA - Medium beam asymmetric
2. Material of diffuser
  Tempered glass
3. Diffuser material design
  Clear
Housing
1. Main body material
  Aluminium
2. Body colour
  Black
3. Main body colour name
  Black

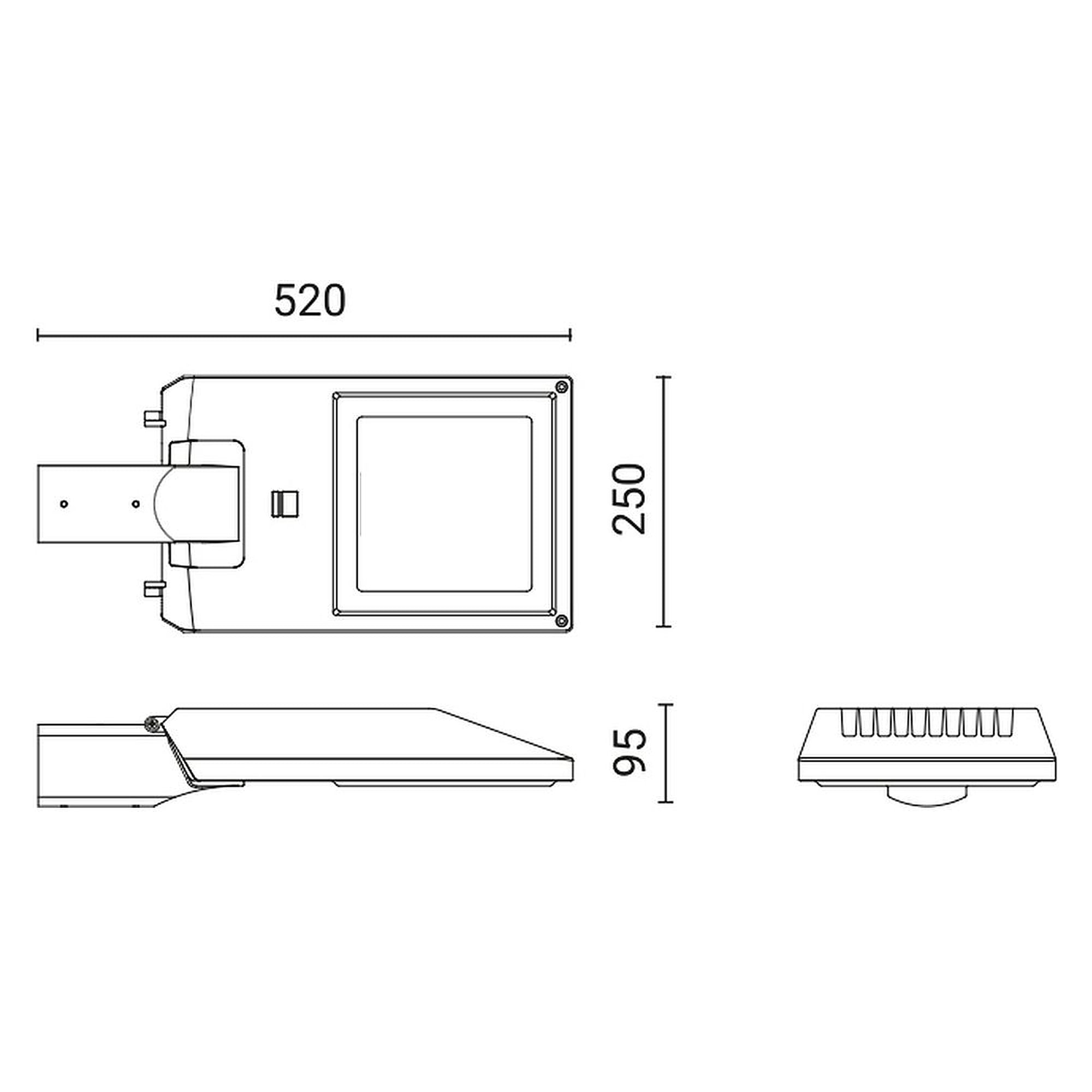

Dimensions
1. Length (mm)
  520
2. Width (mm)
  250
3. Height (mm)
  95
4. Net weight (kg)
  7.25
Cable
1. Cable Cross section (mm²)
  1
2. Cable End / Plug Name
  Open End
3. Cable length (m)
  6
4. Cable material
  RUBBER
5. No of leads
  4
Mounting
1. Product mounting
  Pole
Logistic Data
1. Item gross weight (kg)
  7.88

Information

More Information
Execution	TEC
Manufacturer Nr.	O5584048412D
Manufacturer	Glamox
Country of Manufacture	Germany
EAN	8054378350054
Lead time	6 weeks
Weight	7.880000
Colour	4000K
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
