Multi-Function 3-Port Rework Station - Hakko FM206-17

Overview

The Hakko FM206-17 is a discontinued multi-function rework station that integrates soldering, desoldering, and SMD rework capabilities into a single compact unit. Designed for professional electronics repair and assembly work, this station features an expandable architecture allowing users to select and switch handpieces based on specific application requirements.

Key Features

• Three-port receptacle system for simultaneous connection of multiple handpieces
• Graphic LCD display for intuitive operation and parameter adjustment
• Hot air rework handpiece (FM-2029) included as standard equipment with slender grip for confined spaces

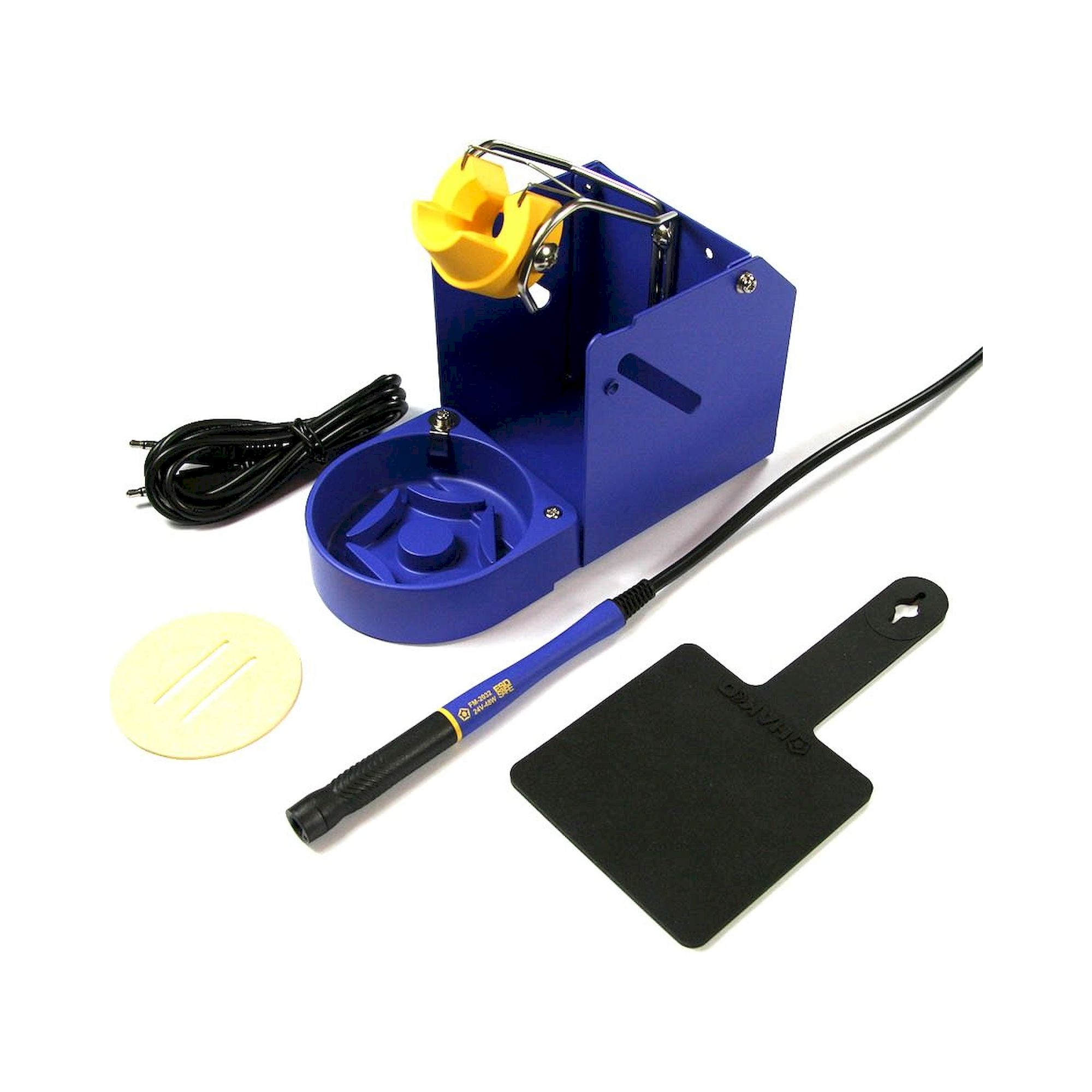

• Support for multiple soldering iron types: standard (FM-2027), N2 nitrogen-assisted (FM-2026, FM-2031), and micro soldering (FM-2032)
• Integrated desoldering tool (FM-2024) with combined heating element and temperature sensor for superior thermal recovery
• Direct heat rework tools (FM-2022, FM-2023) for alternative SMD removal methods
• Expandable handpiece compatibility for future functionality additions
• Secure 10×10 mm chip removal capability

Technical Specifications

Applications

Ideal for electronics repair shops, PCB assembly facilities, and rework centers requiring versatile soldering and desoldering capabilities. Suitable for through-hole soldering, SMD component rework with hot air, nitrogen-assisted micro soldering, and general desoldering operations.

Scope of Delivery

• FM206-17 Main Station Unit
• FM-2029 Hot Air Rework Handpiece

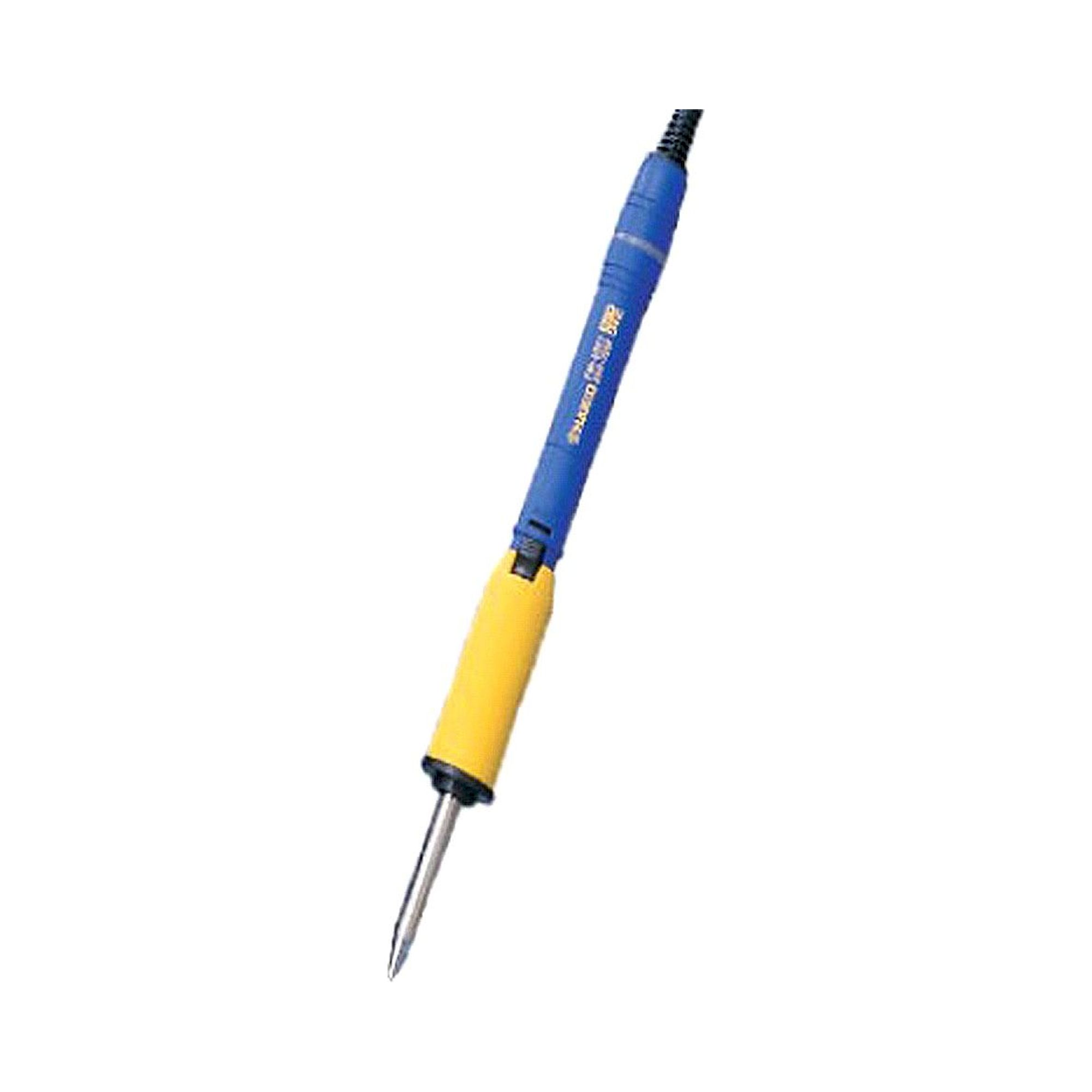

• FM-2027 Soldering Iron
• FM-2024 Desoldering Tool
• FM-2026 N2 Soldering Iron
• Additional compatible handpieces available separately
