Hakko FM-204. Desoldering Station 120W
€840.47
Excl. 19% VAT ,
excl. Shipping Cost
Article
HK-FM204-11
Manufacturer Nr.
FM 204-11
- Vacuum pump type desoldering tool with excellent thermal recovery
- Digital display ensures easy and reliable temperature control
- Sleep function that works with iron holder curbs the oxidation of nozzles
Frequently Bought Together
-
This Item:
€840.47Excl. 19% VAT , excl. Shipping Cost
-

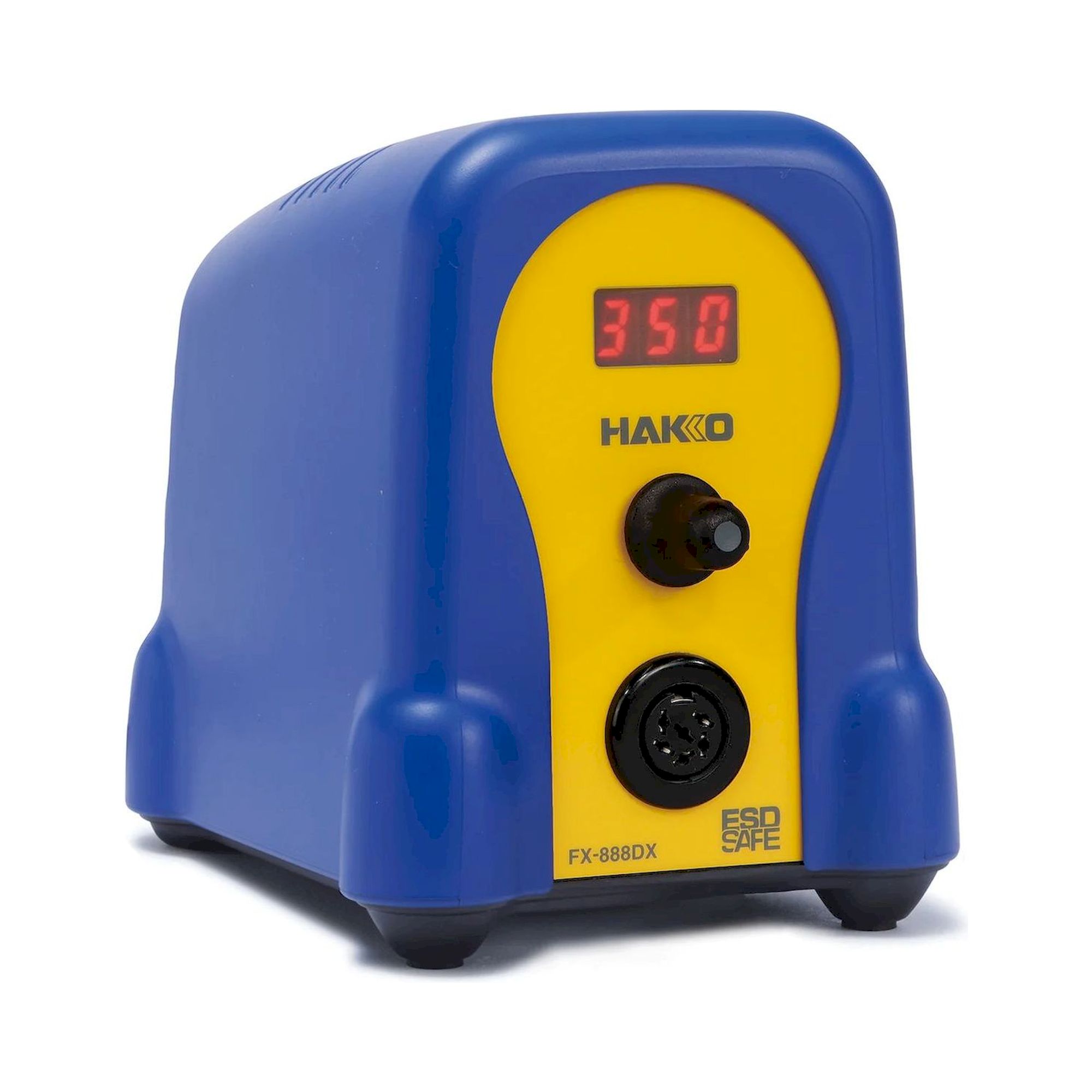

Hakko FX 888DX-31 BY. Lötstation digitale Ausführung,100x120x120 mm
€128.25Excl. 19% VAT , excl. Shipping Cost
-
Hakko FX 972-31. 2-Port Lötstation 200 W, 24V
€585.20Excl. 19% VAT , excl. Shipping Cost
Total price
| Even easier-to-use FM Series Desoldering Tool | |||||||
 | Vacuum pump type desoldering tool | ||||||
 | Excellent thermal recovery | ||||||
·The integrated nozzle containing both heating element and sensor provides higher thermal recovery than conventional tips.  | |||||||
 | Soldering work is possible by replacing the handpiece. | ||||||
| Connectible handpieces: - Desoldering handpiece (HAKKO FM-2024) - Soldering iron (HAKKO FM-2027) - N2 soldering iron (HAKKO FM-2026) | |||||||
 | Selectable grip | ||||||
Two-way use of gun type and straight type is available.
| |||||||
 | Easy maintenance | ||||||
| Filter pipe replacement: - Disposable paper filter pipe - Easy to dispose of paper and solder separately Nozzle replacement: - Safe to replace with nozzle remover - Replaceable even before the end of nozzle has cooled down
| |||||||
 | Power save function Sleep function: When the handpiece is placed on the Iron Holder (FH200-01/FH200-02), the sleep function operates and decreases the unused tip temperature up to approximately 200°C , preventing the tip from being oxidized. In addition, this function can relieve the loads applied to the tip due to the high-temperature settings required for lead-free soldering * The connecting cable enables the iron holder and temperature controller to be activated. | ||||||
 | Auto power shut-off function: By connecting the iron holder (HAKKO FH-200) to the connecting cable, the auto power shut-off function is activated in the same manner as the sleep function. - Selectable buzzer and alert ON/OFF setting Buzzer and alert sound generation upon error and when reaching the setting temperature can be selected. ON/OFF-settable buzzer sound | ||||||
Packing List
| Model No. | Packing List |
| FM-204 |  1. Main unit (HAKKO FM-204 station) 2. Iron holder (No. FH200-05; with tip cleaner) 3. Ceramic paper filter (10pcs.) (for replacement) 4. Cleaning drill (for heating element) 5. Filter pipe assemblies (2pcs.) (originally equipped to the unit and one for spare*5) 6. Control card 7. Desoldering tool (Model FM-2024) 8. Connecting cable 9. Nozzle remover 10. Handle (for gun configuration) *11. Power cord *12. Instruction manual *13 Tip tray *No photos are shown for parts *5,*11, *12 and *13. |
| * This product does not include a nozzle. When purchasing this product, be sure to order a nozzle suitable for the work. |
Specifications
| Model No. | FM-204 |
|---|---|
| Power consumption | 120W |
| Temperature range | FM-2024 : 350 to 450ºC FM-2026/2027 : 200 to 450ºC |
| Temperature stability | ±5ºC at idle temperature |
・Station
| Output voltage | AC 24V |
|---|---|
| Vacuum generator | Vacuum pump, double cylinder type |
| Vacuum pressure | Max. 80kPa (600mmHg) |
| Suction flow | 15L/min. |
| Dimensions | 160(W)×120(H)×225(D)mm |
| Weight | 3.7kg |
・Desoldering Tool
| Power consumption | 70W (24V) |
|---|---|
| Nozzle to ground resistance | <2Ω |
| Nozzle to ground potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 180mm (with Φ1.0mm nozzle) |
| Weight | 65g (with Φ1.0mm nozzle) |
* The suction flow is measured at the filter case suction port of station.
* Total length and weight (w/o cord, hose)
Replacement parts
| Part No. | Name | Specifications | |
|---|---|---|---|
 | B2972 | Control card | |
 | B2876 | Nozzle remover | |
 | FH200-05 | Iron holder <w/ cleaning sponge> | with power-save function |
 | A1514 | Ceramic paper filter (qty 10) * Discontinued. The replacement is "A1613". | |
 | A1613 | Ceramic paper filter (qty 10) * The replacement for A1514. | |
 | A1511 | Filter pipe assembly (qty 10) * Discontinued. The replacement is "A1612". | with ceramic paper filter |
 | A1612 | Filter pipe assembly (qty 10) * The replacement for A1511. | with ceramic paper filter |
 | B3253 | Connecting cable | |
 | FM2024-02 | Desoldering tool FM-2024 | 70W (24V) |
 | B2873 | Cleaning drill | heating element |
 | B2872 | Handle | for gun configuration |
 | A1512 | Front holder | |
 | A1513 | Back holder bushing | |
 | A1519 | Cleaning sponge | yellow |
 | A1536 | Cleaning sponge * Discontinued. The replacement is "A1519". | green |
 | A1013 | Diaphragm (qty 2) | |
 | A1014 | Valve plate (qty 2) |
Options
| Part No. | Name | Specifications | |
|---|---|---|---|

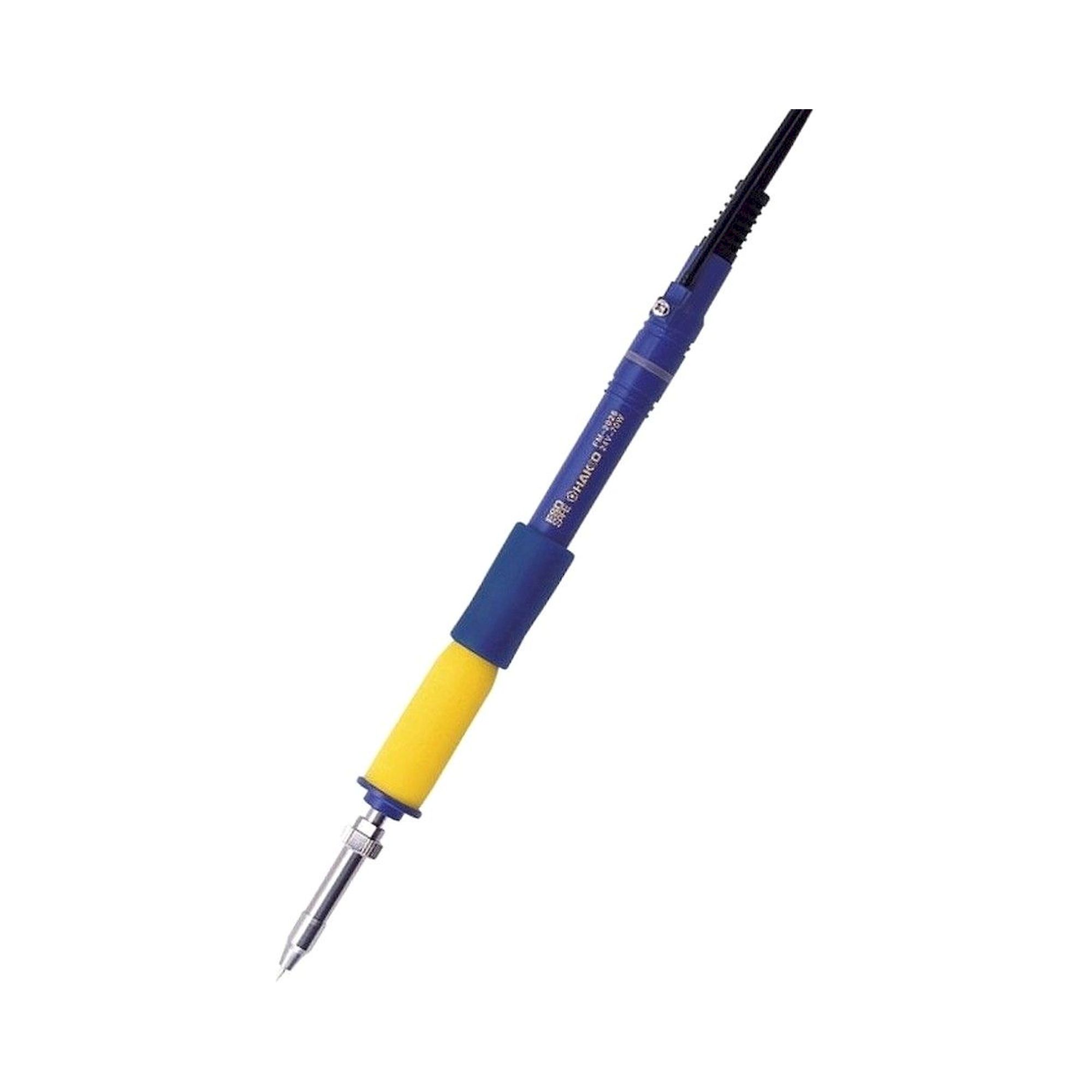

 | FM2026-03 | HAKKO FM-2026 | 70W (24V) |
 | FM2026-05 | HAKKO FM-2026 conversion kit | 70W (24V) |
 | FM2027-01 | HAKKO FM-2027 conversion kit | 70W (24V) |
 | FM2027-04 | HAKKO FM-2027 conversion kit | 70W (24V) |

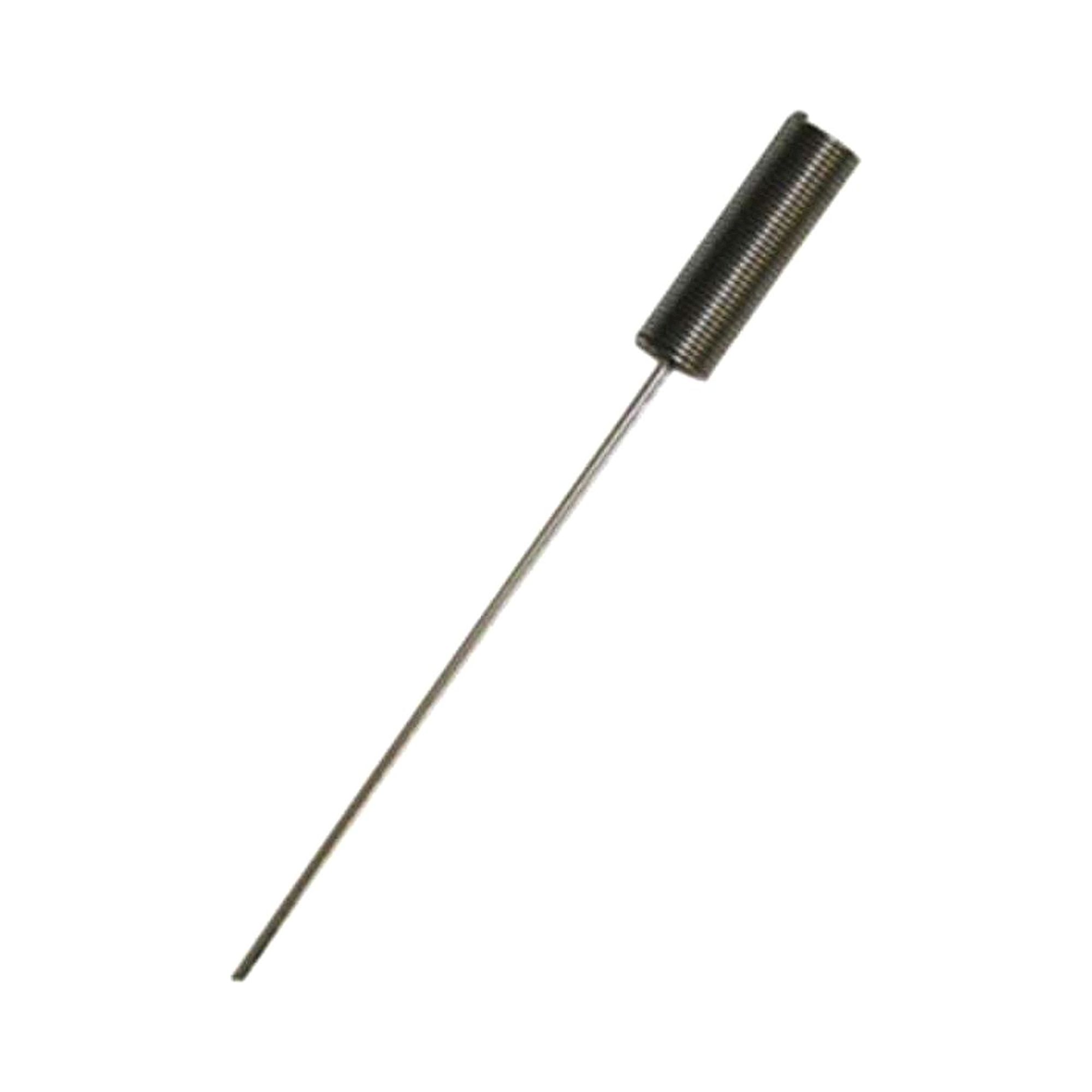

 | B2874 | Cleaning pin | nozzle Φ0.6mm |
 | B1086 | Cleaning pin | nozzle Φ0.8mm |
 | B1087 | Cleaning pin | nozzle Φ1mm |
 | B1088 | Cleaning pin | nozzle Φ1.3mm |
 | B1089 | Cleaning pin | nozzle Φ1.6mm |
 | B2875 | Cleaning pin | nozzle Φ2mm / 2.3mm |
 | 599B | HAKKO 599B tip cleaner |
Maintenance
| Category | Title |
|---|---|
| How to use | HAKKO N2 system |
| How to use | Combinations of handpieces and soldering tips for the FM/FX series |
| Execution | TEC |
|---|---|
| Manufacturer Nr. | FM 204-11 |
| Manufacturer | Hakko |
| Country of Manufacture | Japan |
| EAN | 4962615031045 |
| Weight | 0.009900 |
| Note | Es gibt keine Lieferung von Hakko Produkten in die Schweiz |
| HS-Code | 85151990 |
| GPSR manufacturer information | TBK - Technisches Büro Kullik GmbH Industriestrasse 27 DE-56276 Großmaischeid www.kullik.com |
| Article authenticity | Original product |
| Condition of article | New |
Download
Write Your Own Review
Customers Who Bought This Item Also Bought
Hakko FR-400. Desoldering Tool with Built-in Vacuum Pump 300W
€1,605.50
Excl. 19% VAT ,
excl. Shipping Cost

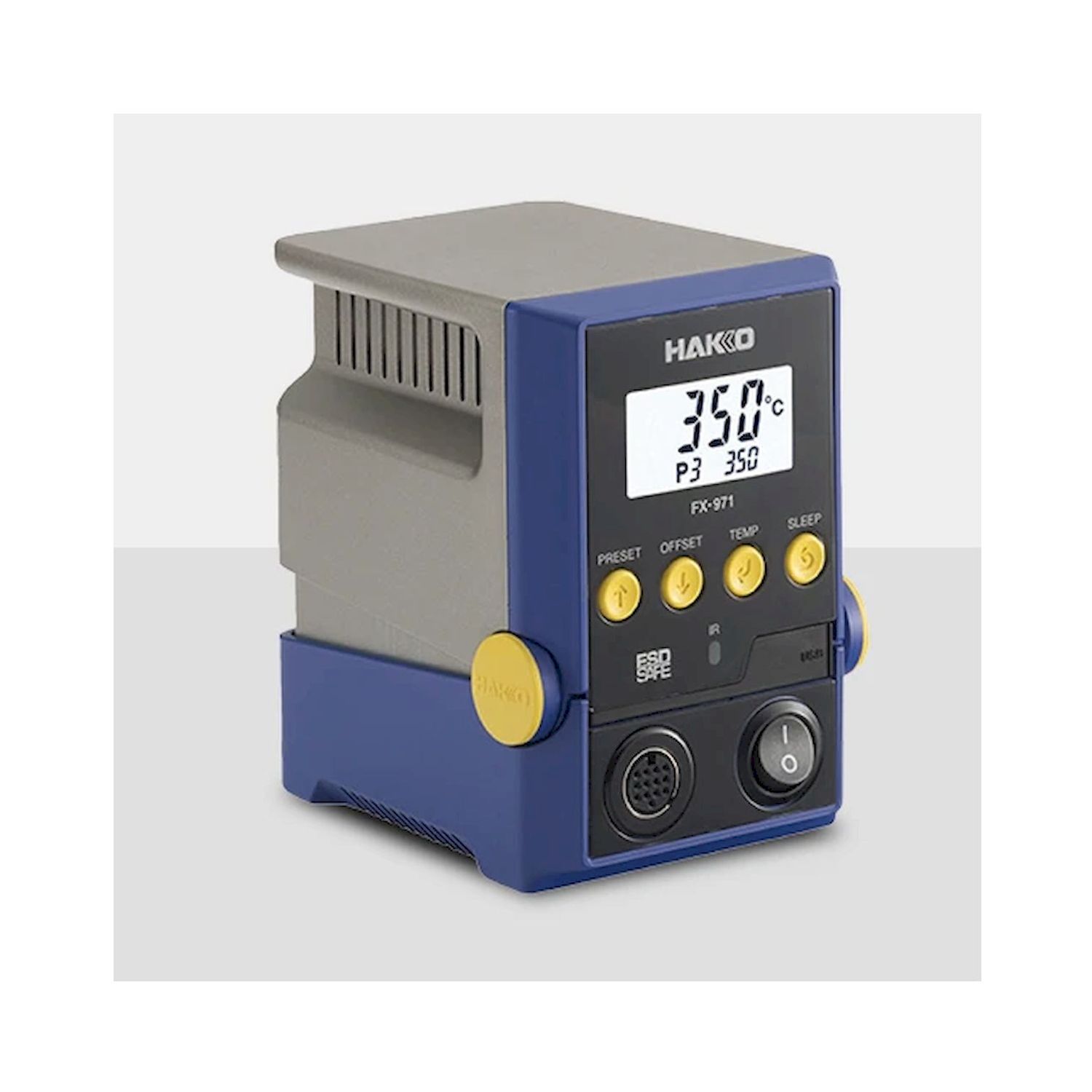

Hakko FX 971-311. 1-Port Allround-Lötstation 100 W, 24V Lötstation
