ESD Electric Screwdriver 0.30-2.45 Nm - Sehan K250P-A
-
This Item:
€489.00
-
ESD Screwdriver Socket Wrench Hex 4.0 mm, Dissipative Handle - Bernstein 6-617
€7.80
-
C.K T4840XESD35. Xonic ESD socket wrench, 3.5x60 mm, 157 mm
€14.99
The Sehan K250P-A is an ESD-safe electric screwdriver for fine assembly with a torque range of 0.30-2.45 Nm. Torque is infinitely adjustable and reliably limited by the automatic clutch shut-off.
Features
- Dissipative ESD housing and grounded bit for use at EPA workstations
- Infinitely adjustable torque from 0.30-2.45 Nm
- Clutch shut-off for even and repeatable fastening results
- Switchable high/low speed with 630 / 1,050 rpm
- Push-to-start for fast, continuous work
- Runs on the KT-38D controller, to be ordered separately
Technical data
| Torque | 0.30-2.45 Nm |
| Speed | 630 / 1,050 rpm |
| Drive/bit | 6.35 mm (1/4", form E 6.3) |
| Start type | Push-to-start |
| Motor | Carbon brush motor |
| Operating voltage | 30/38 VDC |
| Weight | 0.6 kg |
| Grip diameter | 37/37.8 mm |
| Screw size | M2.0-M6.0 |
| ESD | yes, dissipative |
Application
The K250P-A is designed for electronics and fine assembly, series assembly in production and medical technology applications. The torque range covers screws from M2.0-M6.0.
Compatibility

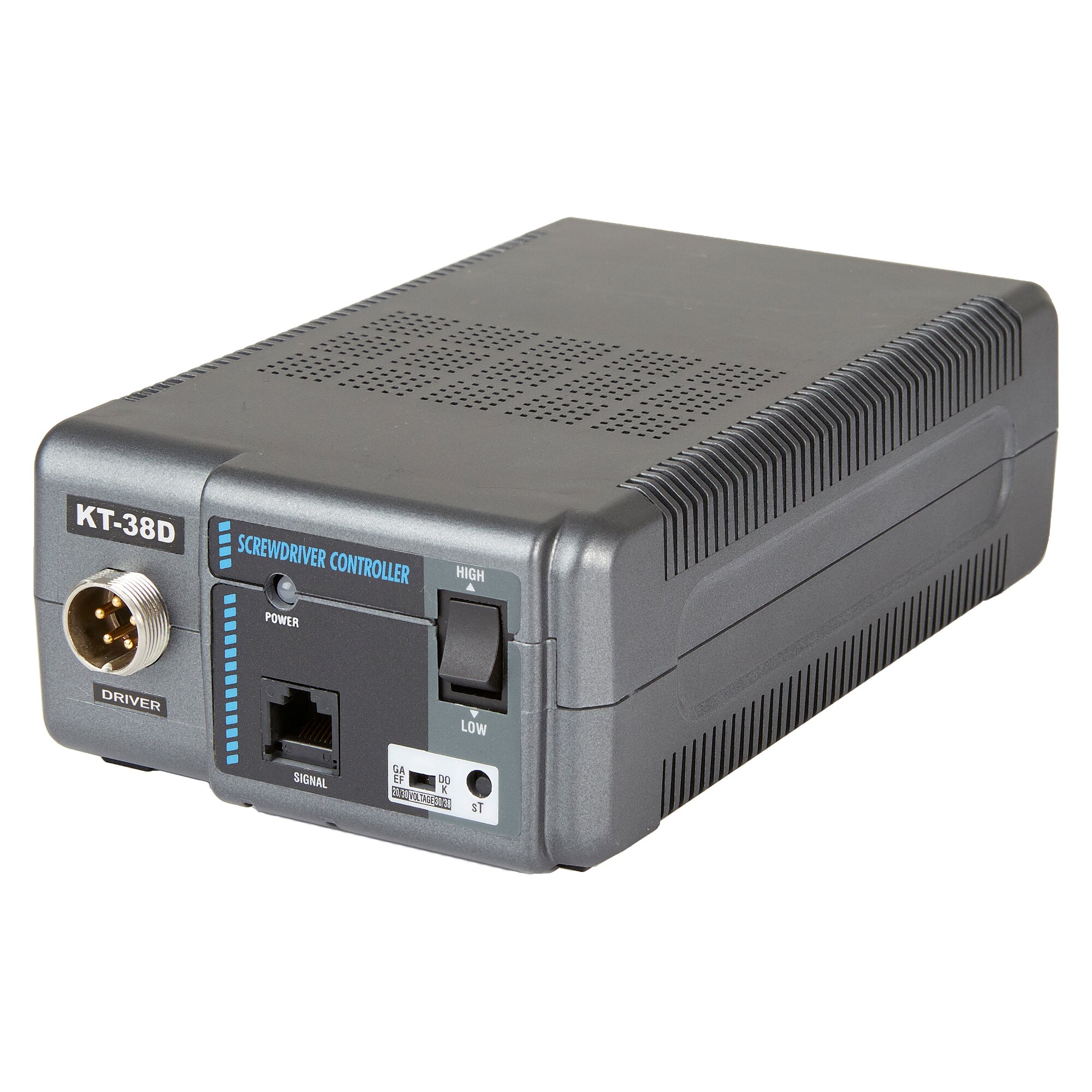

The K250P-A runs on the KT-38D controller with 230 VAC mains supply, soft start, speed preselection and a 5-pin connection, which is ordered separately. Accessories include the protective cap 587-0007 for the torque adjustment ring, the pistol grip 901-0025, the connection cables 518-0029, 518-0078, 518-0032 and 518-0031 as well as the SCOUT II screw counter, which works only with the KT-38D or FT-40D.
| ESD version | ESD (antistatic) |
|---|---|
| Manufacturer Nr. | K250P-A |
| Manufacturer | Sehan |
| Country of Manufacture | South Korea |
| Weight | 0.600000 |
| HS-Code | 84672985 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Start system | Push start |
| Drive | 1/4 inch hexagon |
| Brushless motor | No |
