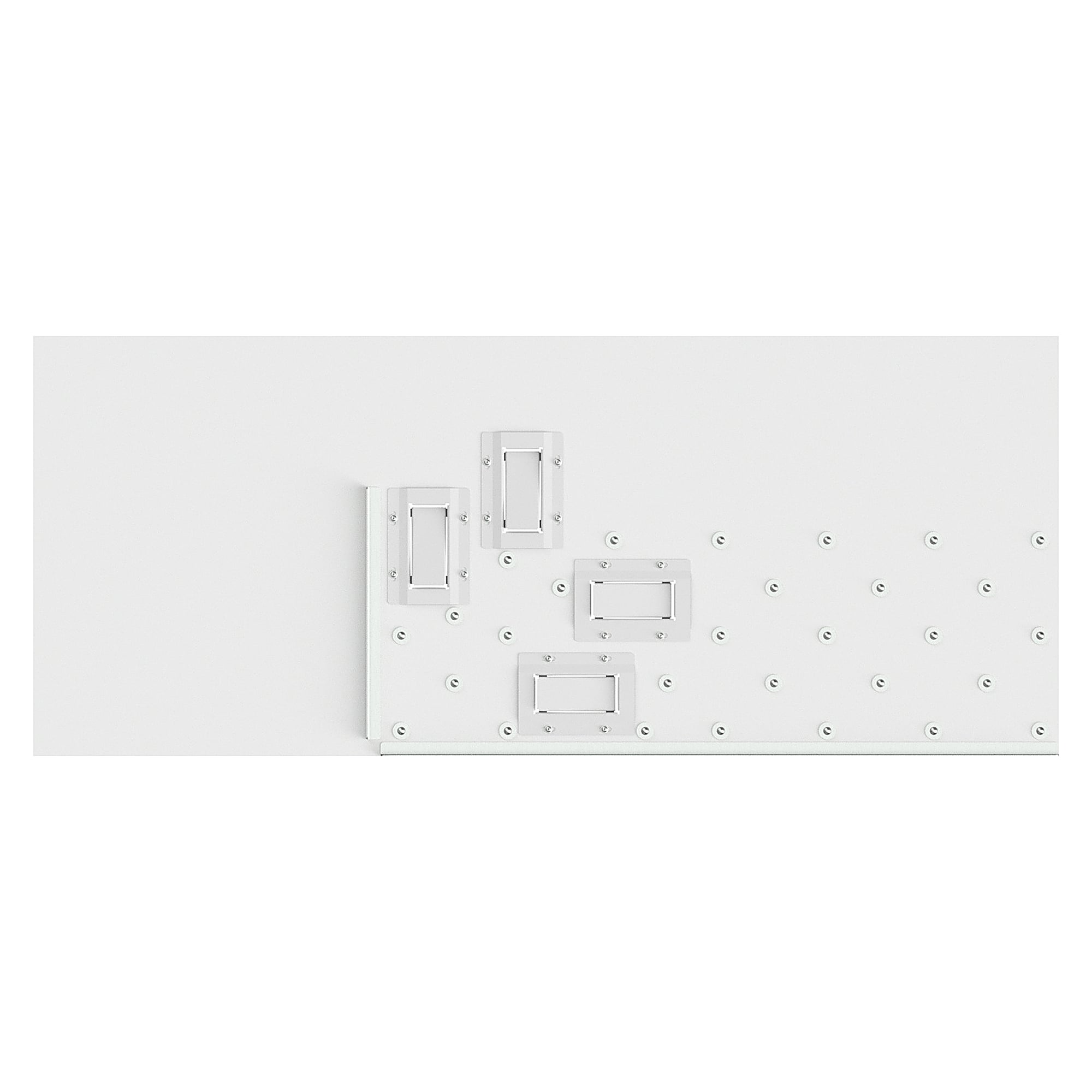

Ball-roller table top Sintro, right-hand outfeed, for workpiece carriers 300x400 mm, 1830x750 mm - Karl 56.868.88

Take workpiece carriers off the line without lifting them: the SINTRO ball-roller table top with right-hand outfeed has ball transfer units over 2/3 of the table width. The 300 x 400 mm carrier glides from the transfer line onto the workstation, is turned and fixed for processing.

Benefits

• Workpiece carrier can be turned and fixed in 90° steps, so the workpiece is accessible from all sides.
• Inserted ball transfer units with chromated steel ball, Ø 15 mm.
• Integrated clamping elements to fix the workpiece carrier.
• Light grey work top in high-pressure laminate (EN 438) with hard-wearing edge banding.

Matching accessories and variants

• workpiece carrier 300 x 400 mm: KARL 59.710.98
• SINTRO table frame for ball-roller table tops 1830 x 750 mm: KARL 25.045.70
• ESD version in conductive ESD laminate: KARL 56.868.89
• Left-hand outfeed, same size: KARL 56.869.88
• Pass-through table, ball transfer units over the full table width: KARL 56.870.88

Applications

• Assembly workstations on SINTRO transfer lines with workpiece carriers
• Diverting workpieces for processing, testing or rework
• Device assembly and industrial production
