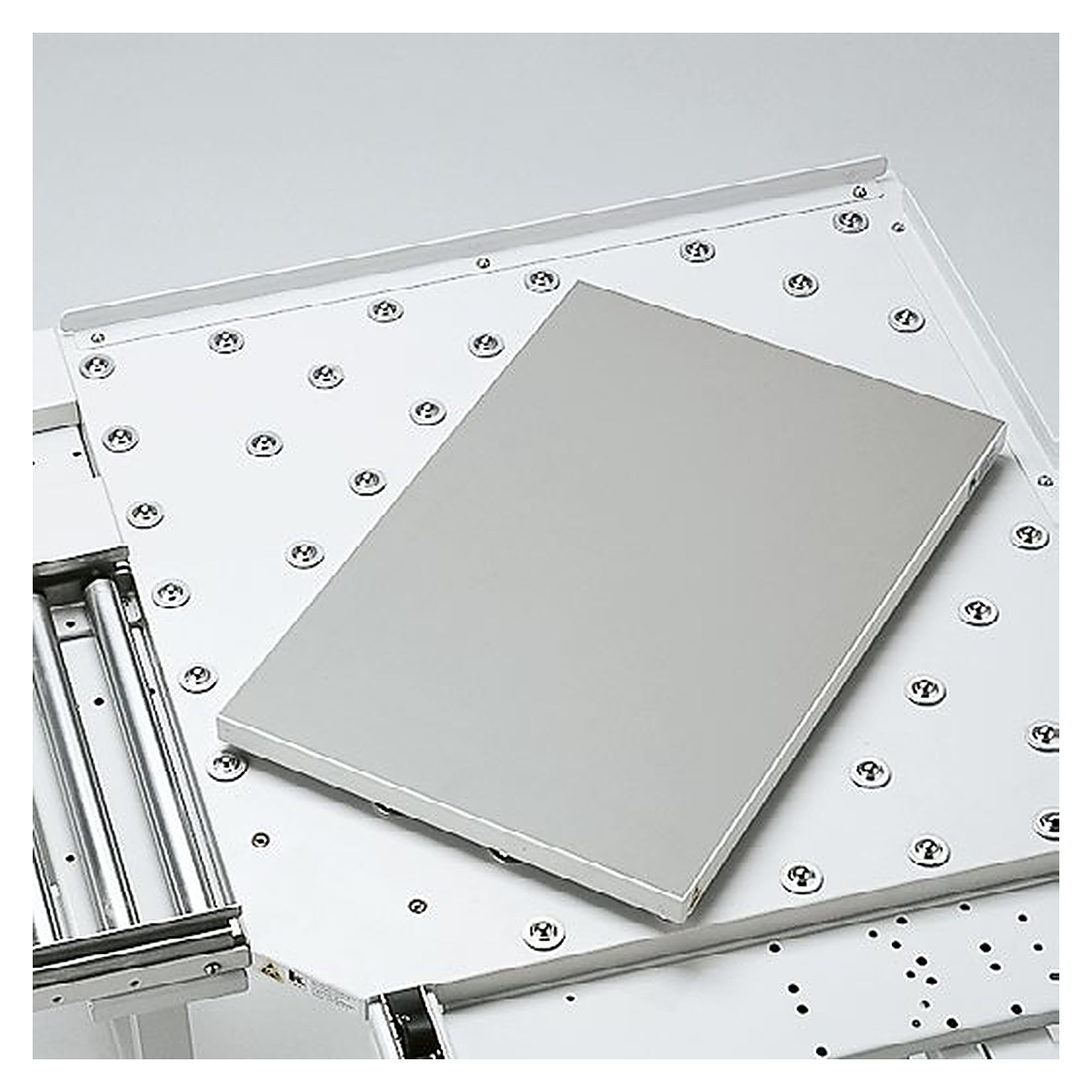

Corner element SINTRO for transfer lines, workpiece carriers 300 to 600 mm - Karl 56.895.88
Universal corner plate for SINTRO transfer lines: workpiece carriers from 300 to 600 mm are rotated and redirected at the corner. Usable as inner or outer corner, work surface in high-pressure laminate.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Take transfer lines around a corner without lifting the workpiece carrier: the SINTRO corner element is a universal corner plate for all carrier sizes from 300 to 600 mm and can be used as an inner or outer corner. Every carrier in this range can be rotated on the ball units.
Benefits
- One corner plate for all workpiece carrier sizes from 300 to 600 mm.
- Usable as inner or outer corner.
- Inserted ball units with chromated Ø 15 mm steel balls.
- Guide rails adapt to all connection variants.
- Additional support foot for greater stability.
Matching accessories and variants
- ESD version: KARL 56.895.89
- ball-roller table top SINTRO pass-through, 1230 mm, carrier 300 x 300 mm: KARL 56.805.88
- workpiece carrier 300 x 300 mm with top layer: KARL 59.705.98
Applications
- U- and L-shaped assembly lines with manual carrier transport
- Linking SINTRO workstations around a corner
- Electronics manufacturing
Technical data
| Manufacturer part no. | 56.895.88 |
|---|---|
| Table system | SINTRO |
| Workpiece carriers | 300 to 600 mm |
| Use | inner or outer corner |
| Work surface | high-pressure laminate, light grey, hard-wearing edge banding |
| Ball units | chromated steel ball, Ø 15 mm |
| Scope of delivery | incl. guide rails and support foot |
| ESD version | no, standard version |
| Made in | Germany |
| Weight | 1 kg |
| Manufacturer | Karl |
| Manufacturer Nr. | 56.895.88 |
| Note | inkl. Führungsschienen und Stützfuß |
| GPSR manufacturer information | Andreas KARL GmbH & Co. KG, Hauptstraße 26, DE-85777 Fahrenzhausen, www.karlnet.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Sales unit | 1 Stück |
| Ausführung | Standard |
