Roller track for outfeed installation, 1225x300 mm - Karl 57.637.72

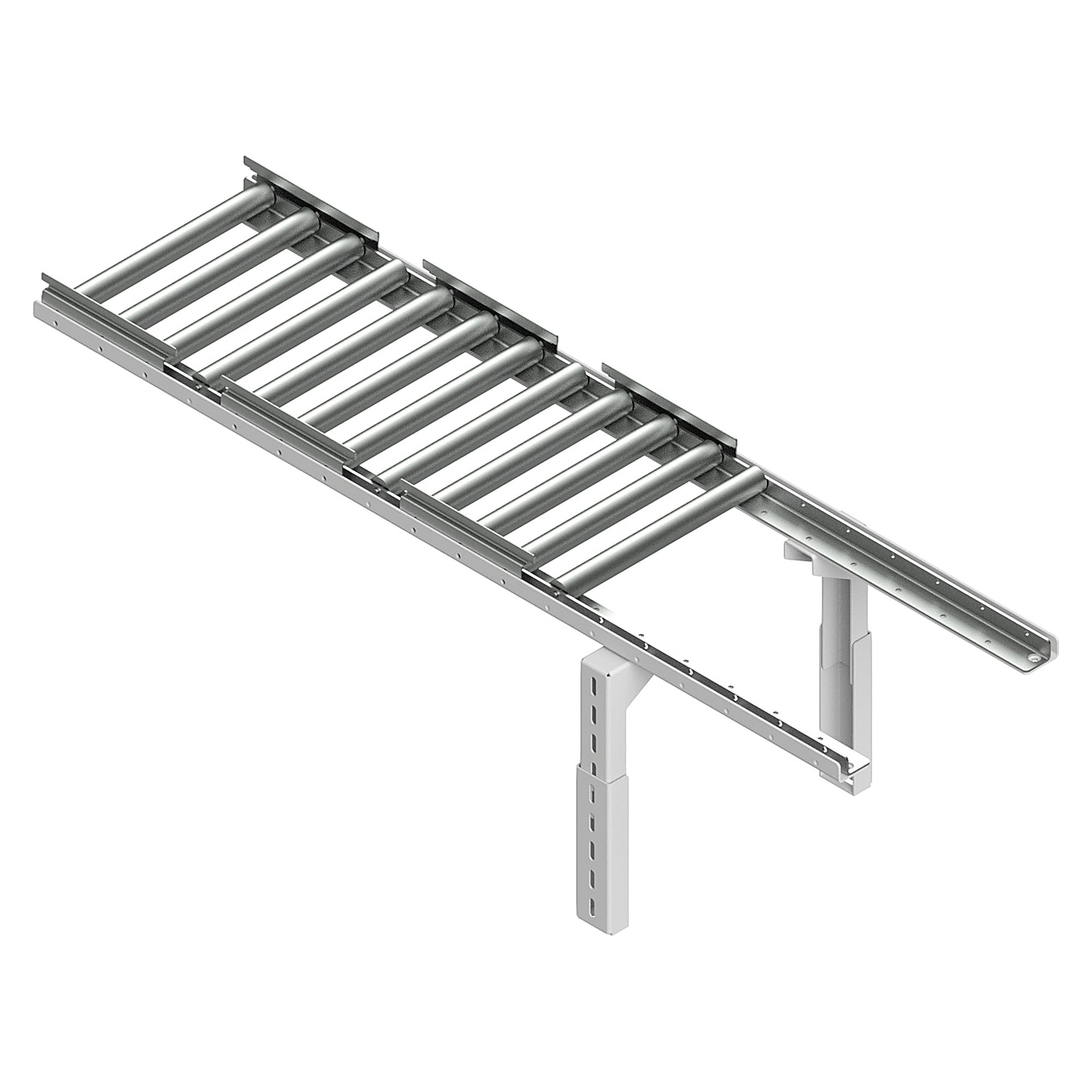

Take workpiece carriers and containers out of the transfer line sideways at a defined point: this KARL roller track is designed for installing an outfeed and comes with an additional vertical strut. Length 1225 mm, track gauge 300 mm, load rating 100 kg per running metre.

Benefits

• Angle rails with chromated steel rollers Ø 30 mm: workpiece carriers move on with little effort.
• Roller pitch 136 mm, optionally 68 mm for closer roller spacing.
• Load rating 100 kg per running metre.

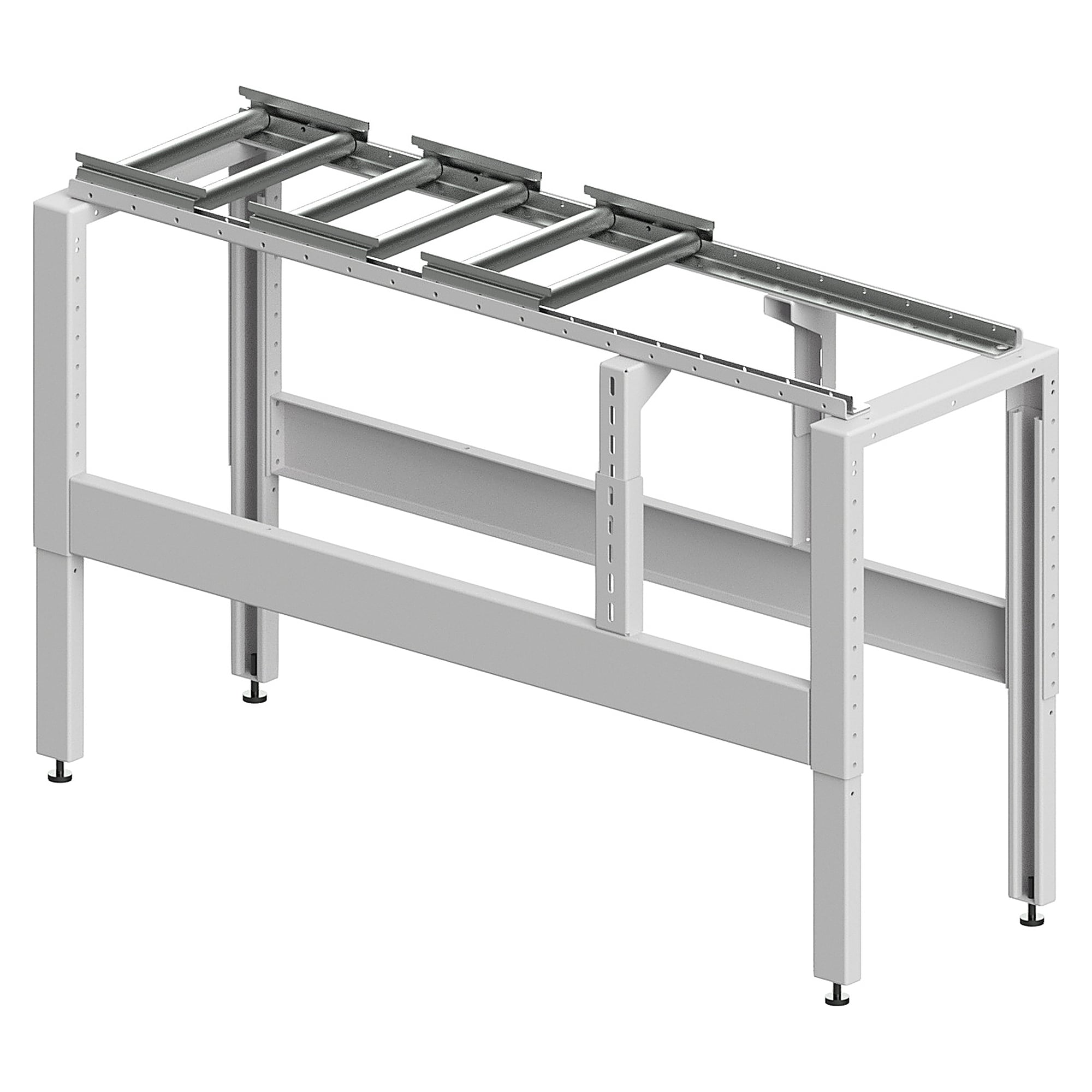

• Fits KARL transfer frames with a frame width of 400 mm, infinitely height-adjustable from 680 to 980 mm.
• Additional vertical strut included, ball outfeed elements can be repositioned on the roller track in a 250 mm grid.

Matching accessories and variants

• Transfer base frame 1225 mm, frame width 400 mm: KARL 57.035.70
• Transfer add-on frame 1225 mm to extend the line: KARL 57.135.70
• Ball outfeed element, one-sided outfeed: KARL 57.805.70
• Ball outfeed element, two-sided outfeed: KARL 57.835.70
• End stop for roller track: KARL 59.165.70
• Clamping element to hold the workpiece carrier: KARL 59.005.70
• ESD version with conductive rollers: KARL 57.637.70
• Continuous roller track without outfeed: KARL 57.635.72

Applications

• Diverting workpiece carriers to repair, test or secondary workstations
• Moving workpiece carriers and containers in assembly and order picking
• Production lines with manual workpiece flow
