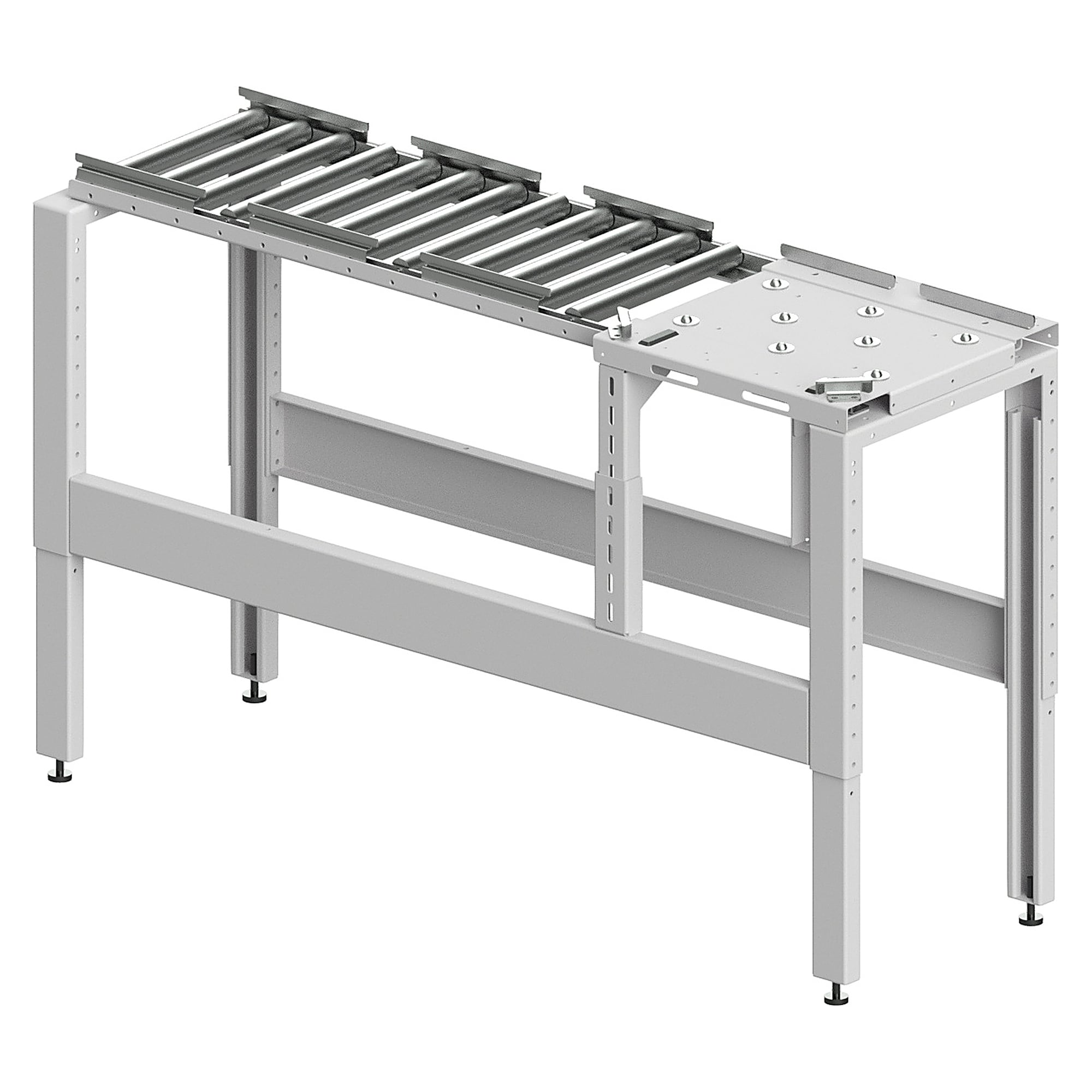

Ball transfer outfeed element, track gauge 300 mm, outfeed to one side - Karl 57.805.70

Divert workpiece carriers sideways at any point of the transfer line, for example to an assembly table: the ball transfer outfeed element for 300 mm track gauge is placed on the flanged-roller rails or the roller conveyor and takes 300 x 300 mm workpiece carriers. Outfeed is to one side.

Benefits

• Infinitely movable on flanged-roller rails, in a 250 mm grid on the roller conveyor.
• Inserted ball units with chromated Ø 15 mm steel balls: the carrier can be pushed in any direction.
• Sheet-steel carrier element, fitted without modifying the line.
• Also usable as a removal station in the workpiece carrier return.

Matching accessories and variants

• Outfeed to both sides, track gauge 300 mm: KARL 57.835.70
• Workpiece carrier 300 x 300 mm with top layer, max. 30 kg: KARL 59.705.98
• ESD workpiece carrier 300 x 300 mm with top layer: KARL 59.706.98
• Flanged-roller rails 815 mm, set of 2: KARL 57.505.72
• ESD flanged-roller rails 815 mm, set of 2: KARL 57.505.70

Applications

• Linking assembly and test tables to a transfer line
• Diverting faulty assemblies to a repair station
• Removal station in the workpiece carrier return
