IoT-Line Counting Scale 6000 g Readability 0,02 g - KERN CKE 6K0.02

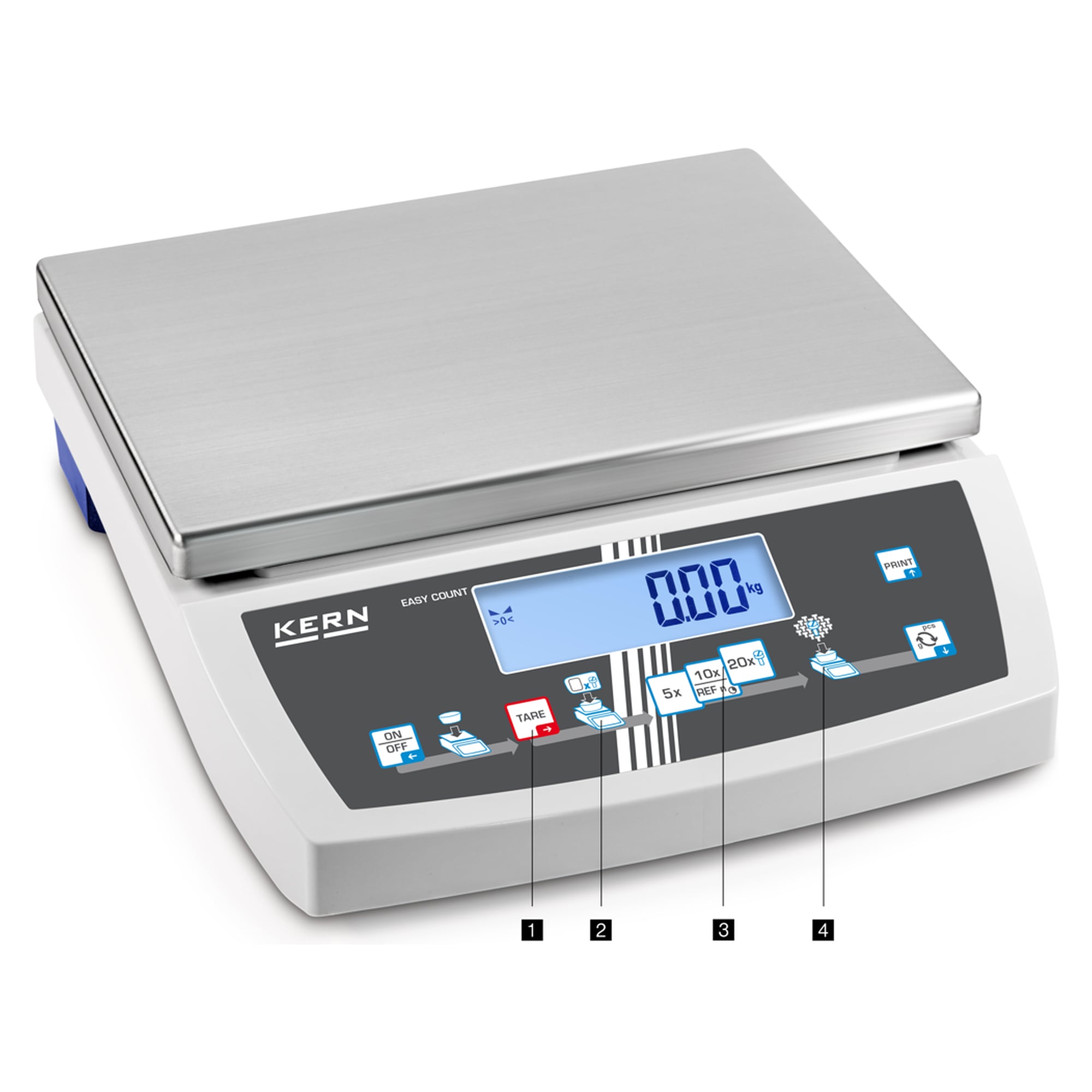

When small parts have to be counted quickly and without miscounts, the KERN CKE 6K0.02 handles up to 6000 g at a readability of 0,02 g. Its graphic step-by-step panel guides every job in four stages, so even untrained staff work accurately without any training.

Benefits

• Graphic guided counting: the four-step on-screen routine removes training time and prevents operator errors
• High counting resolution: 300.000 points, smallest piece weight 200 mg under normal conditions
• Automatic reference optimisation: gradually refines the average piece weight while you count
• Two scales in one: switch between counting and weighing mode at the touch of a button
• KERN Universal Port (KUP): add RS-232, USB, Bluetooth BLE, WLAN or Ethernet adapters without any installation work

Technical data

• Weighing range (Max): 6000 g
• Readability (d): 0,02 g
• Repeatability: 0,04 g
• Linearity: ± 0,2 g
• Counting resolution: 300.000 points
• Smallest piece weight (normal conditions): 200 mg
• Weighing system: Strain gauge
• Weighing surface: 340×240 mm
• Housing material: ABS plastic
• Display: LCD, digit height 25 mm
• Units: kg; g; gn; dwt; ozt; lb; oz; ffa; PCS
• Interfaces: KUP standard; RS-232, Ethernet, Bluetooth BLE 4.0, USB, WLAN optional
• Net weight: 7 kg

Applications

Typical uses include industrial applications, series production, production monitoring, quality control, counting tasks, order picking and stocktaking.

Compliance and origin

EAN 4045761357501, customs code 90160010, origin Germany.
