IoT-Line Counting Scale 8 kg Readability 0,00005 kg - KERN CKE 8K0.05
The KERN CKE 8K0.05 counts small parts up to 8 kg at 0,00005 kg readability with 160.000 points counting resolution. The graphic guided panel removes training time, and the KERN Universal Port adds RS-232, USB, Bluetooth, WLAN or Ethernet.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

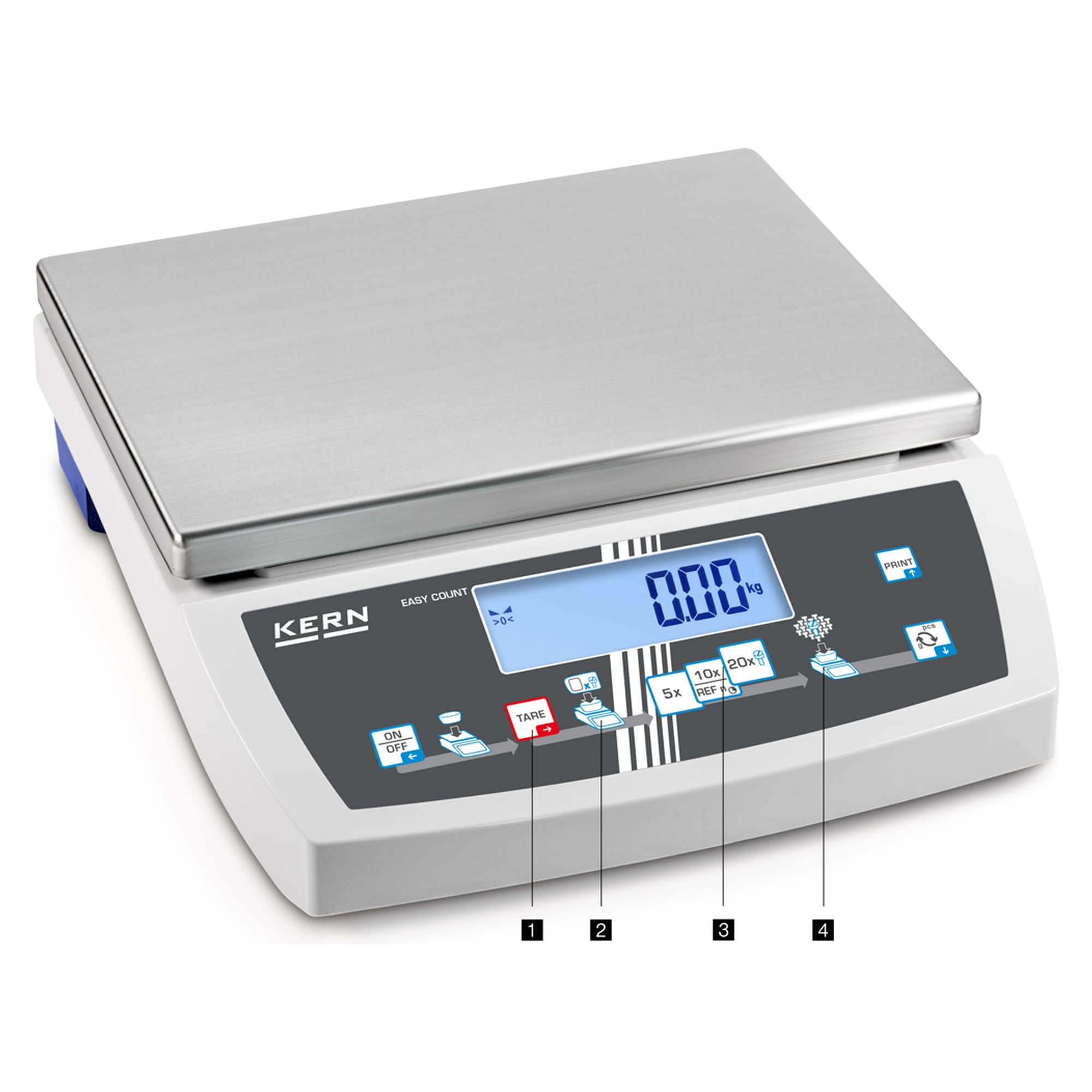

When small parts have to be counted quickly and without miscounts, the KERN CKE 8K0.05 handles up to 8 kg at a readability of 0,00005 kg. Its graphic step-by-step panel guides every job in four stages, so even untrained staff work accurately without any training.
Benefits
- Graphic guided counting: the four-step on-screen routine removes training time and prevents operator errors
- High counting resolution: 160.000 points, smallest piece weight 500 mg under normal conditions
- Automatic reference optimisation: gradually refines the average piece weight while you count
- Two scales in one: switch between counting and weighing mode at the touch of a button
- KERN Universal Port (KUP): add RS-232, USB, Bluetooth BLE, WLAN or Ethernet adapters without any installation work
Applications
Typical uses include industrial applications, series production, production monitoring, quality control, counting tasks, order picking and stocktaking.
Compliance and origin
EAN 4045761357518, customs code 90160010, origin Germany.
Technical data
| Weighing range (Max) | 8 kg |
|---|---|
| Readability (d) | 0,00005 kg |
| Repeatability | 0,00005 kg |
| Linearity | ± 0,00015 kg |
| Counting resolution | 160.000 points |
| Smallest piece weight (normal conditions) | 500 mg |
| Weighing system | Strain gauge |
| Weighing surface | 340×240 mm |
| Housing material | ABS plastic |
| Display | LCD, digit height 25 mm |
| Units | kg; g; gn; dwt; ozt; lb; oz; ffa; PCS |
| Interfaces | KUP standard; RS-232, Ethernet, Bluetooth BLE 4.0, USB, WLAN optional |
| Net weight | 7 kg |
| Weight | 8 kg |
| Manufacturer | Kern |
| EAN | 4045761357518 |
| HS-Code | 90160010 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Material | ABS plastic |
| Wägebereich max (g) | 8000 |
| Ablesbarkeit (g) | 0.05 |
| Display type | LCD |
| Interface | Bluetooth, Ethernet, KUP, RS-232, USB device, WLAN |
